Color PVC Coated Stainless Steel Wire Rope

Specifications

Color PVC Coated Stainless Steel Wire Rope
1)Material:stainless steel
2)Grade:201,304,316,316L
3)ISO,SGS
4)OEM

Color PVC Coated Stainless Steel Wire Rope

construction	dia(mm)	tolerance	Appro Weight(kg/100m)	MBL/KN
1*7	0.3	0/+0.08	0.05	0.075
	0.4		0.08	0.133
	0.6		0.18	0.3
	0.8		0.32	0.533
	1		0.51	0.832
	1.2		0.73	1.198
	1.5		1.14	1.872
	1.8		1.64	2.696
	2		2.02	3.325
	2.5		3.16	5.201
	3		4.55	7.489
	4	0/+0.07	8.08	13.314
1*19	0.8	0/+0.08	0.31	0.53
	1		0.49	0.82
	1.5		1.11	1.85
	1.8		1.6	2.67
	2		1.98	3.3
	2.5		3.09	5.16
	3		4.45	7.43
	4	0/+0.07	7.92	13.21
	5		12.37	20.64
	6	0/+0.06	17.82	29.72
	8	0/+0.05	31.68	52.85
	10		49.6	82.58
	12		71.28	118.91
1*37	5	0/+0.07	12.23	20.41
	6	0/+0.06	17.6	29.39
	8	0/+0.05	31.3	52.25
	10		48.9	81.64
	12		70.42	117.56
	14		95.84	160.01
	16		125.18	208.99
	18		158.44	264.51
	20		195.6	326.56
7*7	0.33		0.037	0.1
	0.36	0/+0.08	0.054	0.15
	0.5		0.09	0.14
	0.8		0.25	0.29
	1		0.39	0.56
	1.2		0.56	0.81
	1.5		0.88	1.27
	1.8		1.27	1.83
	2		1.57	2.25
	2.5		2.45	3.52
	3		3.53	5.07
	4	0/+0.07	6.28	9.01
	5		9.82	14.09
	6	0/+0.06	14.14	20.29
	8	0/+0.05	25.15	36.07
	10		39.3	56.36
	12		56.59	81.16
7*19	1.2	0/+0.08	0.54	0.75
	1.5		0.85	1.17
	1.8		1.23	1.68
	2		1.52	2.08
	2.5		2.38	3.25
	3		3.42	4.69
	4	0/+0.07	6.09	8.33
	5		9.52	13.03
	6	0/+0.06	13.71	18.76
	7		18.66	25.54
	8	0/+0.05	24.38	33.35
	10		38.1	52.12
	12		54.86	75.05
	14		74.67	102.16
	16		97.53	133.43
	18		123.44	168.88
	20		152.4	208.49
	24		219.45	300.23
	26		257.55	352.35
6*19S/W+IWRC	8	0/+0.05	25.92	35.77
	10		40.5	55.89
	12		58.32	80.48
	14		79.38	109.55
	16		103.68	143.08
	18		131.22	181.09
	20		162	223.57
6*36S/W+IWRC	8	0/+0.05	26.75	35.77
	10		41.8	55.89
	12		60.19	80.48
	14		81.93	109.55
	16		107.01	143.08
	18		135.43	—
	20		167.2	—
	22		202.31	—
	24		240.77	—
	26		282.57	—
	28		327.71	—
19*7	4	0/+0.07	6.43	7.61
	5		10.05	13.58
	6	0/+0.06	14.47	19.56
	7		19.69	26.62
	8	0/+0.05	25.73	34.77
	10		40.2	54.32
	12		57.89	78.22
	14		78.79	106.47
	16		102.91	139.06
	18		130.25	176
	20		160.8	217.29

surface:bright,PVC/nylon coated

Package : in roll with wood or plastic

Material: 201

               304   0Cr18Ni9             304L  00Cr19Ni10

               321   0Cr18Ni9Ti           316   0Cr17Ni12Mo2

               316L 00Cr17Ni14Mo2   310S 0Cr25Ni20

Application: construction,the cargo rope,motor vehicle,washing machine, precision instrument and  fishery, etc.

phone number:86-25-66927689

Please feel free to contact me.

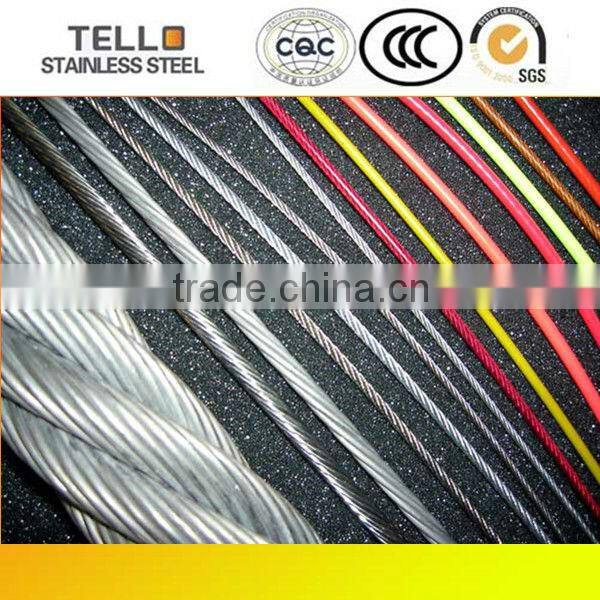

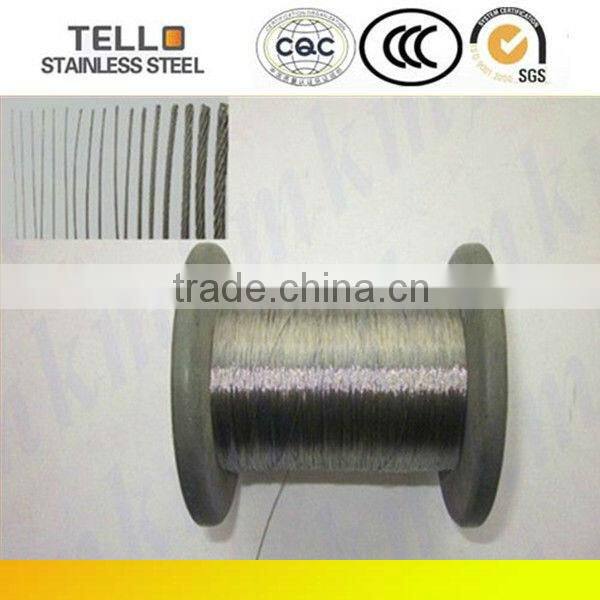

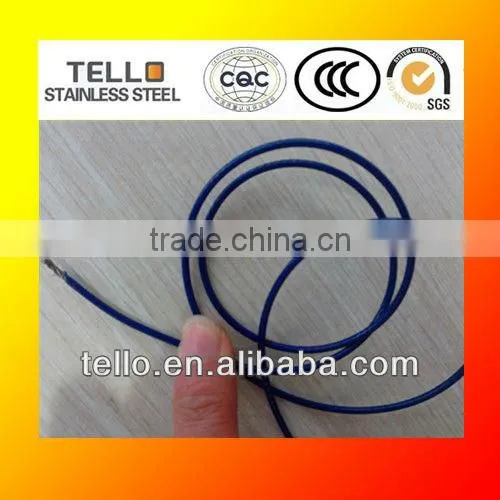

Samples display:

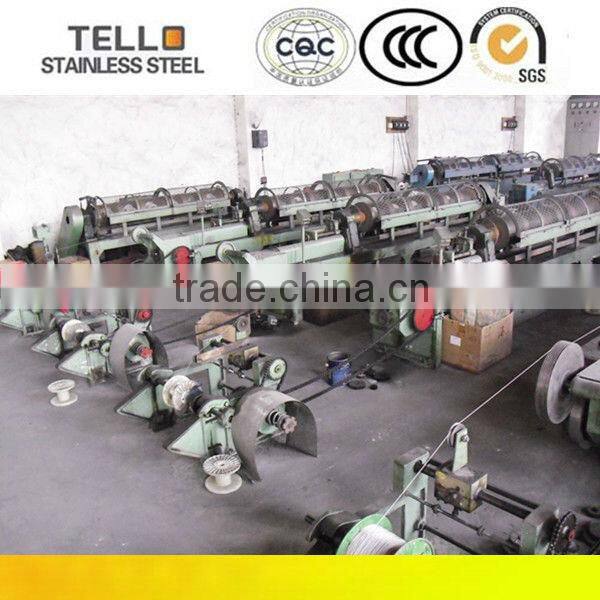

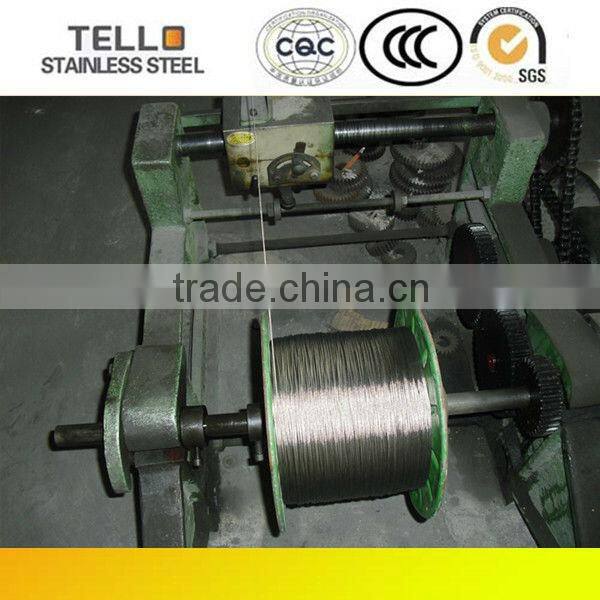

Processing:

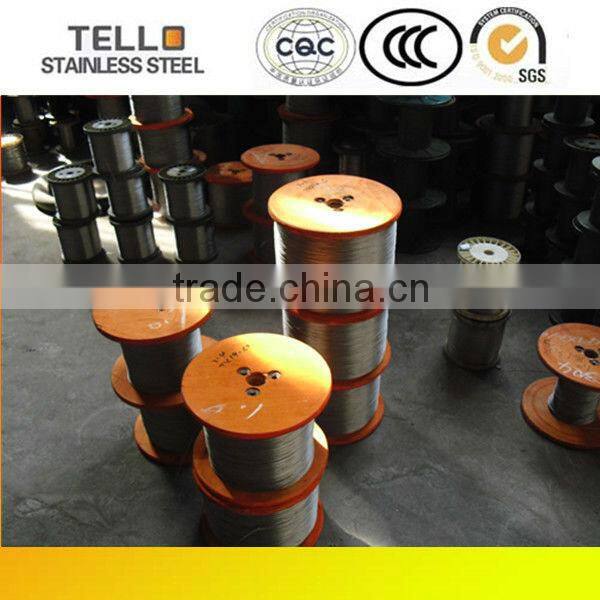

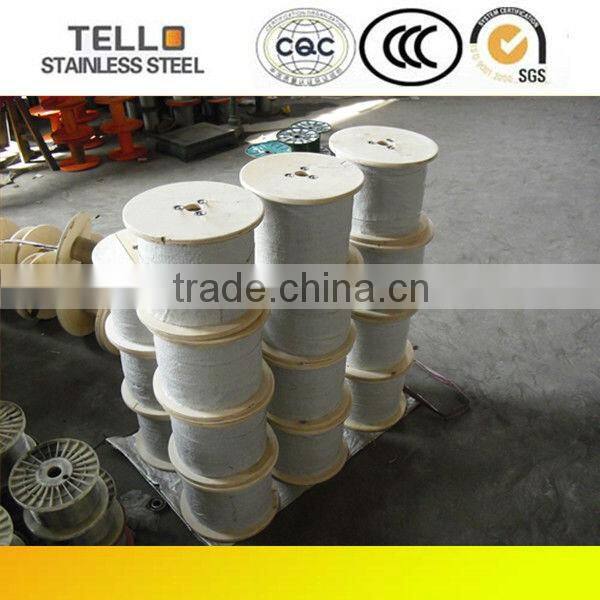

Package:

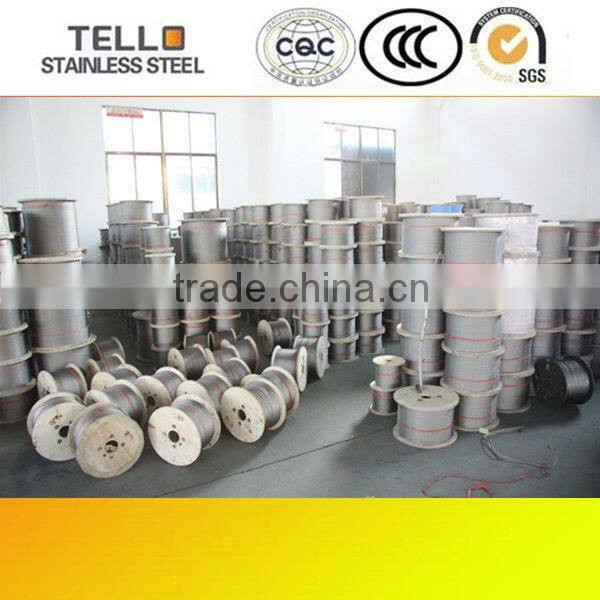

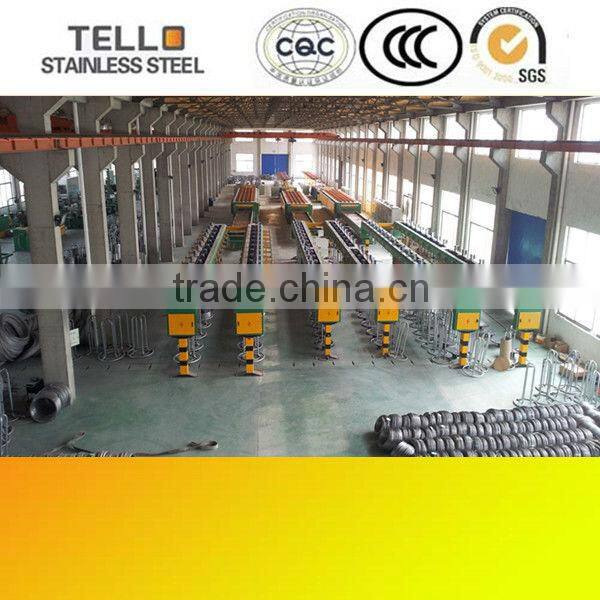

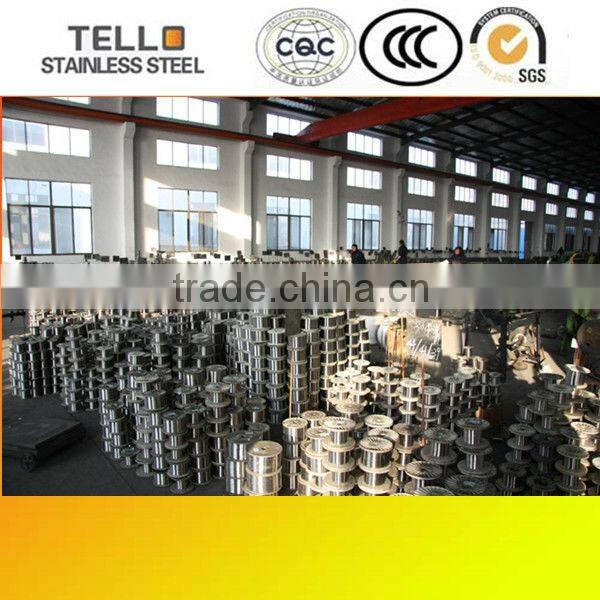

Factory display:
