Home > Products > Sunpower Solar Cell > 35*52mm 0.27W Solar Cell for Solar Panel Solar System

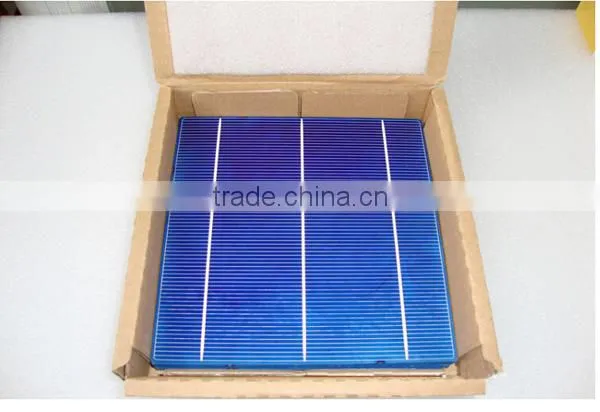

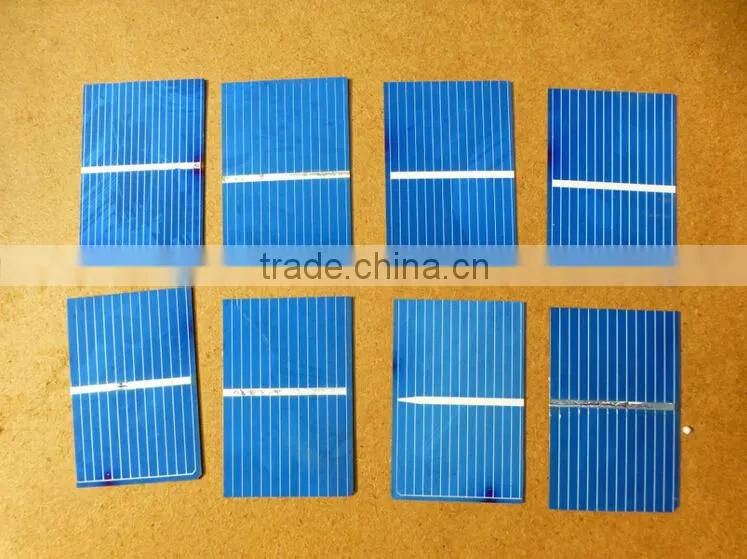

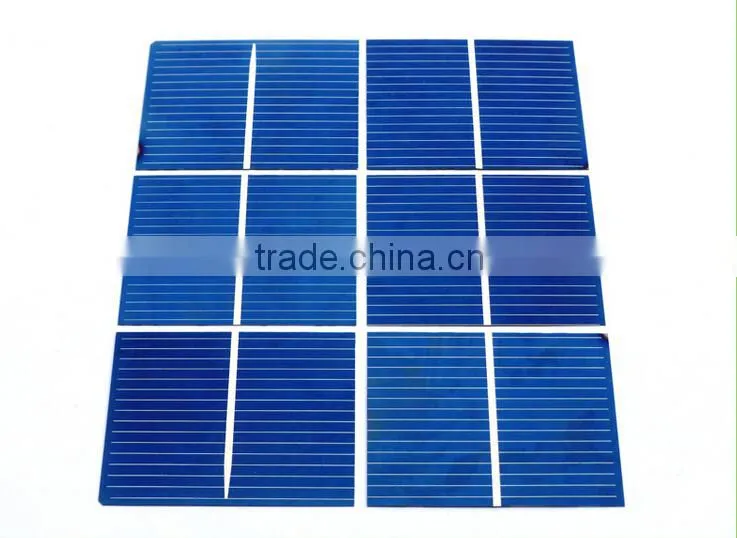

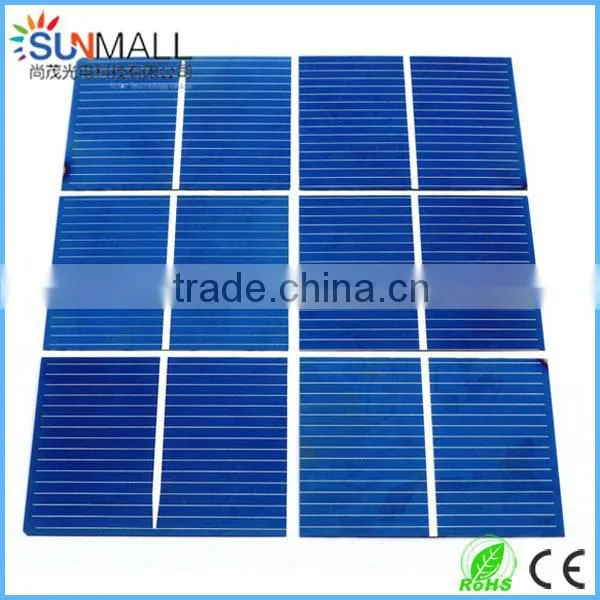

35*52mm 0.27W Solar Cell for Solar Panel Solar System
- 100000 Piece / Pieces per Month
- Shanghai or Ningbo
- T/T L/C Credit Card
- 12V Portable Mini Air Pump
- DC 12V Portable Heavy Duty Plastic Shell Air Compressor with Light Quality Choice
- Electric Portable Heavy Duty Plastic Shell Air Compressor -30mm 2 Cylinder
- 12V Heavy Duty Plastic Shell Air Compressor with Light
- 12V Mini Heavy Duty Plastic Shell Air Compressor Price
- 12V Heavy Duty Car Air Compressor /Tire Inflators with light - 30mm Cylinder
Product Details
Place of Origin: | Zhejiang, China | Brand Name: | SUNMALL | Model Number: | SM-P27 |
Material: | Polycrystalline Silicon | Size: | 52*35mm | Number of Cells: | 8pcs |
Max. Power: | 0.27W |
Product Description
Specifications
35*52mm 0.27W Solar Cell for Solar Panel Solar System-Stock goods are available
-Efficiency 18.4%
-Up to 25 years
-A grade
35*52mm 0.27W Solar Cell for Solar Panel Solar System
Efficiency:
1. Low voltage-temperature coefficient allows higher power output at high-temperature condition.
2. High efficient, high reliable solar cells ensure our product output stability.
Benefits:
1. Manufactuer in China
2. High efficiency, high safety, high reliability
3. Output power tolerance of +/-3%
Warranty:
1. 10-years limited warranty on materials and workmanship
2. 25-years limited warranty on power output: 10 years/90%, 25 years/80%
Features:
1.High conversion efficiencies resulting in superior power output performance.
2.Outstanding power output even in low light or high temperature conditions
3.Optimized design for ease of soldering and lamination
4.Long-term stability,reliability and performance
Product Pictures
Size | 125mm x125mm ±0.5mm | |||||
Thickness | 190um ± 20um | |||||
Front surface(-) | 1.7mm bus bars(silver), blue anti-reflecting coating(Silicon nitride) | |||||
Back surface (+) | 3mm wide soldering pads(silver) back surface field(Aluminum) | |||||
TkVoltage | -0.348%/K | |||||
TkCurrent | +0.031%/K | |||||
TkPower | -0.46%/K | |||||
Efficiency(%) | Pmp(W) | Vmp(V) | Imp(A) | Voc(V) | Isc(A) | FF(%) |
17.75-18.00 | 4.27 | 0.527 | 8.102 | 0.628 | 8.615 | 78.90 |
17.50-17.75 | 4.21 | 0.521 | 8.083 | 0.627 | 8.584 | 78.23 |
17.25-17.50 | 4.15 | 0.517 | 8.028 | 0.626 | 8.550 | 77.57 |
17.00-17.25 | 4.09 | 0.513 | 7.982 | 0.624 | 8.495 | 77.23 |
16.75-17.00 | 4.03 | 0.512 | 7.873 | 0.622 | 8.408 | 77.15 |
16.50-16.75 | 3.97 | 0.505 | 7.871 | 0.621 | 8.390 | 76.14 |
16.25-16.50 | 3.91 | 0.502 | 7.796 | 0.620 | 8.372 | 75.45 |
16.00-16.25 | 3.85 | 0.499 | 7.714 | 0.620 | 8.350 | 75.09 |
15.75-16.00 | 3.79 | 0.498 | 7.601 | 0.620 | 8.125 | 75.34 |
15.50-15.75 | 3.73 | 0.498 | 7.480 | 0.619 | 8.005 | 75.34 |
Solar cell I-V curve
Solar Cell Spectral Response
Original Package, 100pcs in one box, 10 boxes in one Carton
1. We will arrange the delivery as soon as your payment is verified by Alibaba.
2. Usually the goods will be received in the system estimated time if the local customs do clearance on time, or there is no delay by public holidays or force majeure events. If you need tracking information pls leave message in the system, and we will response you ASAP.
3. For international orders, we are not in charge of the import duties, customs charges or other VAT’s. Those fees if available should be paid by buyers. But we can help buyers to lower the declared value if needed.
Our advantage:
1.Our battery slice of photoelectric conversion efficiency is high, high reliability, low attenuation, long service life.
2.We introduced foreign advanced cleaning and etching equipment, trim appearance consistent;
3.The spread of our products using advanced technology, uniform throughout conversion efficiency;
4.We are adopting the technology of advanced PECVD film forming technique, the surface plating dark blue reflective film, color beautiful, uniform.
5.We adopts advanced softline printing line.
silk screen printing precision is high, graphics, smooth, easy to automatic welding and laser cutting;
1. Q: Are you a factory or trading company?
A: We are a factory.
2. Q: Where is your factory located? How can I visit there?
A: Our factory is located in Hangzhou, Zhejiang, China, near Shanghai. You are warmly welcomed to visit us! Before you take off from your country, please let us know. We will arrange time to pick you up.
3. Q: Can the price be cheaper?
A: Of course, you will be offered a good discount for big amount.
4. Q: Could you print our company LOGO on the nameplate and package?
A: Yes, we accept OEM orders.
5. Q: How do you overcome the anti-dumping and countervailing duties?
A: We can use original Taiwan solar cells, and provide Certificate of Origin of Taiwan.
6. Q: Do you have solar project engineer who can guide me to install system?
A: Yes, we have a professional engineers team. They can teach you how to install a solar system.
Our Company Hangzhou Sun Mall Solar Technology Co.,Ltd is a profrssional manufacturer of epoxy solar panel, novelty solar gifts, educational solar toys and other relative solar products. Located in Hangzhou city which is nearby Shanghai and Ningbo city. To avoid the battery pollution, all of our solar products are powered by solar cells without traditional battery. So our novelty solar products are very suitable for promotion, children teaching, high level business gifts, house garden lighting and so on.
We have established long term cooperation relationship with many clients who are from almost 35 countries including Europe and American countries. Though operating with an integrated and advanced factory with modern and fully automatic equipment and facilities. We will offer new novelty solar products for clients all along. To guarantee the product quality, all the products need to pass four stages of QC checks. That's why we assure you of our superior quality and prompt delivery.
Our solar products have outstanding features of design and quality and we are dedicated to protecting our environment. We will try to promote solar energy development and build a better future for our earth.
We hope to build business relationship with friends from all around the world.
