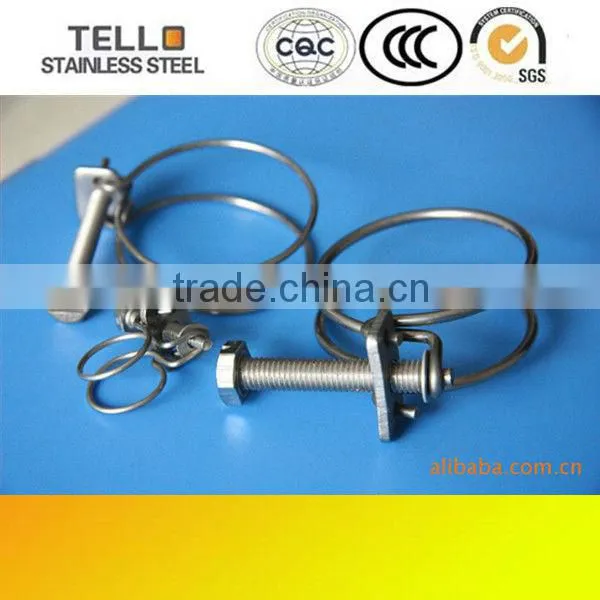

stainless steel double bolt hose clamp
- 800000 Piece / Pieces per Month
- shanghai
- Credit Card
-
FK-ETD54 clip clamp,material sus301 stainless steel,Surface Cleaning，Easy to assemble, stable clamping force.
-
RM14 Clamp, RM14 Double PIN clip , RM14 core clamps,wholesale inventories, quality assurance, delivery fast. Can provide customers with matching Core and Bobbin
-
RM12 transformer clamp，RM12 with PIN, RM12 core clamps,wholesale inventories, quality assurance, delivery fast. Can provide customers with matching Core and Bobbin
-
DIN3352 F4 Resilient Non-rising Gate Valve
-
High Quality Low Price Oil&Gas Pipe Fitting Clamp Metal Pipe External Pipe Line Up Clamp Cage Type Clamp
-
manual type external line up clamp made in China with stocks
Product Details
| Place of Origin: | Jiangsu, China | Brand Name: | Tello stainless steel | Model Number: | 304 |
| Usage: | Pipe Clamp | Material: | Stainless Steel | Structure: | T Clamp |
| Standard or Nonstandard: | Standard |
Product Description
Specifications
stainless steel double bolt hose clamp1.Grade:201,304,316...
2.Size:26-29mm(various)
3.ISO,SGS.
4.OEM service available.
stainless steel double bolt hose clamp
| KHxx | KHxxSS | KHFxxSS | KHLxxSS |
Material for Band | AISI 200 Series SS | AISI 200 Series SS | AISI 300 Series SS | AISI 316 SS |
Material for Housing | AISI 200 Series SS | AISI 200 Series SS | AISI 300 Series SS | AISI 316 SS |
corrosion resistance | ordinary | good | better | Best |
Rated Ultimate Torque | 50in.lbs. min.(5.6Nm) | 60in.lbs. min.(6.8Nm) | 60in.lbs. min.(6.8Nm) | 60in.lbs. min.(6.8Nm) |
Recommended Installation Torque | 30-40in.lbs.(3.4-4.5Nm) | 35-45in.lbs.(4.0-5.1Nm) | 35-45in.lbs.(4.0-5.1Nm) | 35-45in.lbs.(4.0-5.1Nm) |
Clamp Series | "A" Diameter Range | |||||||
SAE Size | KHxx | KHxxSS | KHFxxSS | KHLxxSS | Millimeters | Inches | ||
Min. | Max. | Min. | Max. | |||||
8 | EH8 | EH8SS | EHF8SS | EHL8SS | 11 | 23 | 7/16 | 29/32 |
10 | EH10 | EH10SS | EHF10SS | EHL10SS | 14 | 27 | 9/16 | 1-1/16 |
12 | EH12 | EH12SS | EHF12SS | EHL12SS | 18 | 32 | 11/16 | 1-1/4 |
16 | EH16 | EH16SS | EHF16SS | EHL16SS | 19 | 38 | 3/4 | 1-1/2 |
20 | EH20 | EH20SS | EHF20SS | EHL20SS | 21 | 44 | 13/16 | 1-3/4 |
24 | EH24 | EH24SS | EHF24SS | EHL24SS | 27 | 51 | 1-1/16 | 2 |
28 | EH28 | EH28SS | EHF28SS | EHL28SS | 33 | 57 | 1-5/16 | 2-1/4 |
32 | EH32 | EH32SS | EHF32SS | EHL32SS | 40 | 64 | 1-9/16 | 2-1/2 |
36 | EH36 | EH36SS | EHF36SS | EHL36SS | 46 | 70 | 1-13/16 | 2-3/4 |
40 | EH40 | EH40SS | EHF40SS | EHL40SS | 52 | 76 | 2-1/16 | 3 |
44 | EH44 | EH44SS | EHF44SS | EHL44SS | 59 | 83 | 2-5/16 | 3-1/4 |
48 | EH48 | EH48SS | EHF48SS | EHL48SS | 65 | 89 | 2-9/16 | 3-1/2 |
stainless steel hose clamps
Type:
1)America style hose clamp(12mm,14mm)
2)stainless steel hose clamp with handle
3)heavy duty stainless steel hose clamp/strong stainless steel hose clamp
4)quick/fast realsed stainless steel hose clamp
5)double wire hose clip clamps
6)two bolt hose clip clamps
OEM service available
Completely made of stainless steel. It is the most powerful hose clamp within the product range.
Material:201
304 0Cr18Ni9 304L 00Cr19Ni10
321 0Cr18Ni9Ti 316 0Cr17Ni12Mo2
316L 00Cr17Ni14Mo2 310S 0Cr25Ni20

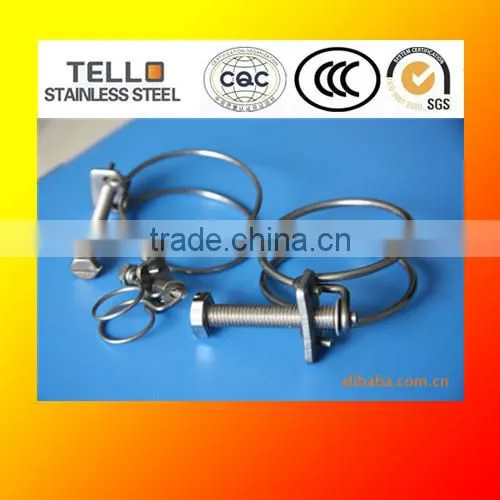

Samples display:

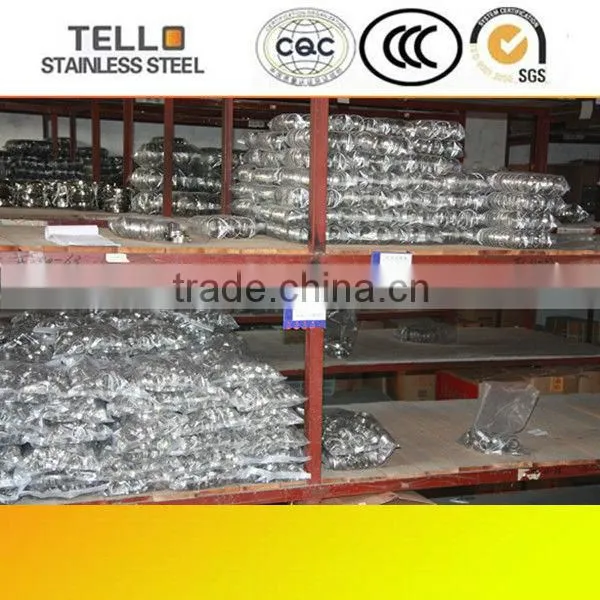

Factory show:

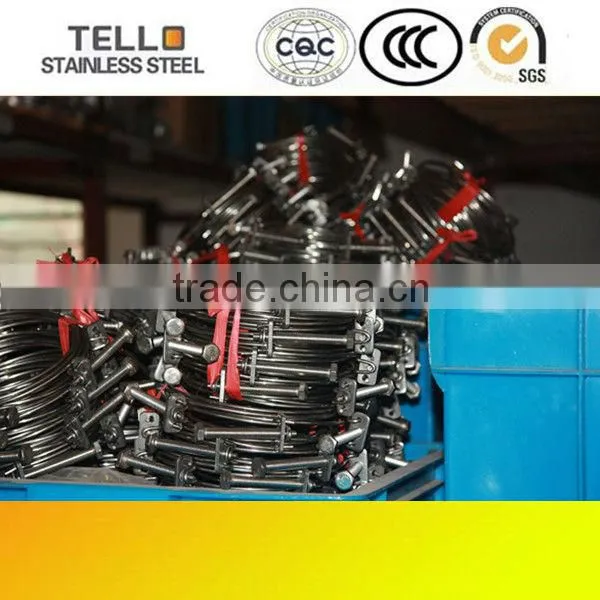

Workshop:

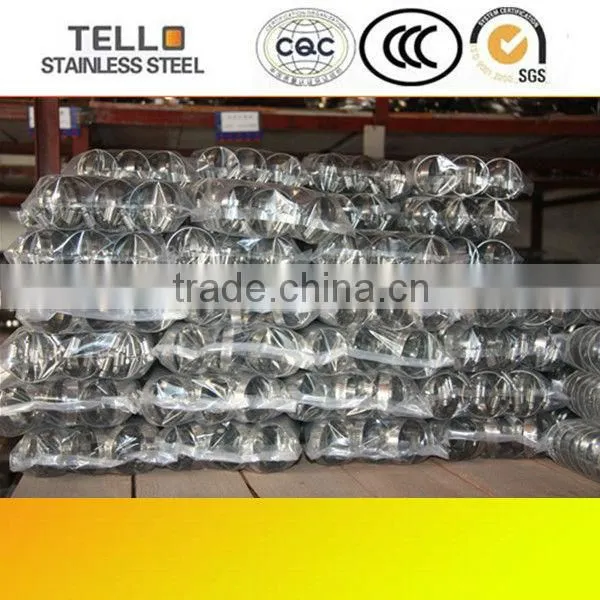

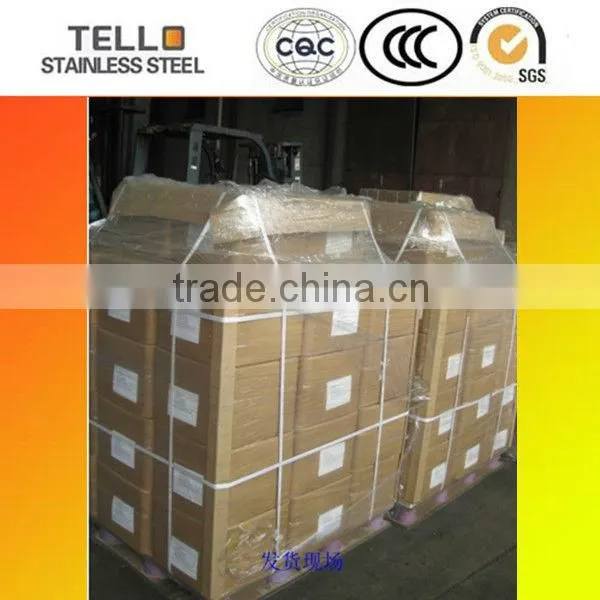

Ready for delivery :
The other type clamps we make include: Quick release hose clamp,German type hose clamp,American type hose clamp,T bolt hose clamp,Rubber band clamp,Heavy duty hose clamp,Hose clamp with handle.etc
