Stainless Steel Hose Clip (constant Tension)

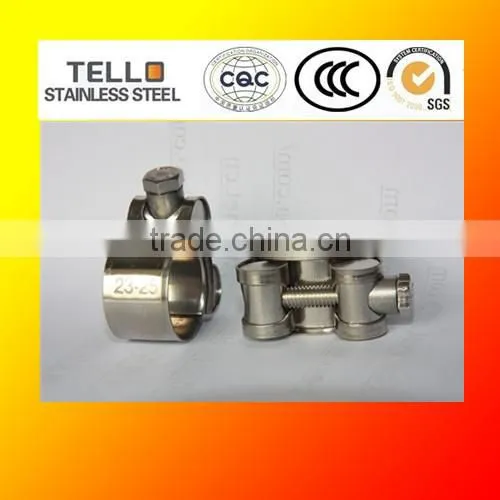

Stainless Steel Hose Clip (constant Tension) photo-1
US$ 0.1 - 3 MOQ: 500 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Jiangsu, China
Brand Name:
Tello stainless steel
Model Number:
high pressure
Payment & Shipping
Payment Methods:
Port of Shipment:
shanghai
Delivery Detail:
Delivery time depends on order quantity.
Place of Origin Jiangsu, China
Brand Name Tello stainless steel
Model Number high pressure
Usage Pipe Clamp
Material Stainless Steel
Structure Spring Clamp
Standard or Nonstandard Standard

Specifications

stainless steel constant tension hose clip
1.Constant tension/High pressure,American,German
2.Grade:201,304,316.etc
3.ISO,SGS



stainless steel hose clip (constant tension)



KHxx

KHxxSS

KHFxxSS

KHLxxSS

Material for Band

AISI 200 Series SS

AISI 200 Series SS

AISI 300 Series SS

AISI 316 SS

Material for Housing

AISI 200 Series SS

AISI 200 Series SS

AISI 300 Series SS

AISI 316 SS

corrosion resistance

ordinary

good

better

Best

Rated Ultimate Torque

50in.lbs. min.(5.6Nm)

60in.lbs. min.(6.8Nm)

60in.lbs. min.(6.8Nm)

60in.lbs. min.(6.8Nm)

Recommended Installation Torque

30-40in.lbs.(3.4-4.5Nm)

35-45in.lbs.(4.0-5.1Nm)

35-45in.lbs.(4.0-5.1Nm)

35-45in.lbs.(4.0-5.1Nm)



size(mm) W 1
BT*BW
W4
BT*BW
Screw size
17-19 0.6*18 0.6*18 M5
20-22
23-25
26-28
29-31 0.8*20 0.6*20 M6
32-35
36-39
40-43
44-47 1.2*22 0.8*22
48-51
52-55
56-59
60-63
64-67
68-73 1.5*24 0.8*24 M8
74-79
80-85
86-91
92-97
98-103
104-112
113-121
122-130
131-139 1.7*26 1.0*26 M10
140-148
149-161
162-174
175-187
188-200
201-213
214-226
227-239
240-252





As a professional manufacturer, we can provide different size and style of Hose Clamp with good quality and reasonable price.



Samples display:

stainless steel hose clip (constant tension)



stainless steel hose clip (constant tension)



Factory show:

stainless steel hose clip (constant tension)stainless steel hose clip (constant tension) stainless steel hose clip (constant tension) stainless steel hose clip (constant tension)



Work processing:

stainless steel hose clip (constant tension)stainless steel hose clip (constant tension)

stainless steel hose clip (constant tension)



Ready for delivery :

stainless steel hose clip (constant tension)stainless steel hose clip (constant tension)





The other type clamps we make include: American type hose clamp,German type hose clamp,Double wire hose clamp,T bolt hose clamp,Rubber band clamp,Quick release hose clamp,Hose clamp with handle.etc
