Specifications
Sunmall High Quality Easy Installation 20W Solar Power System-High efficiency solar cell
-More cost effective
-25 years life

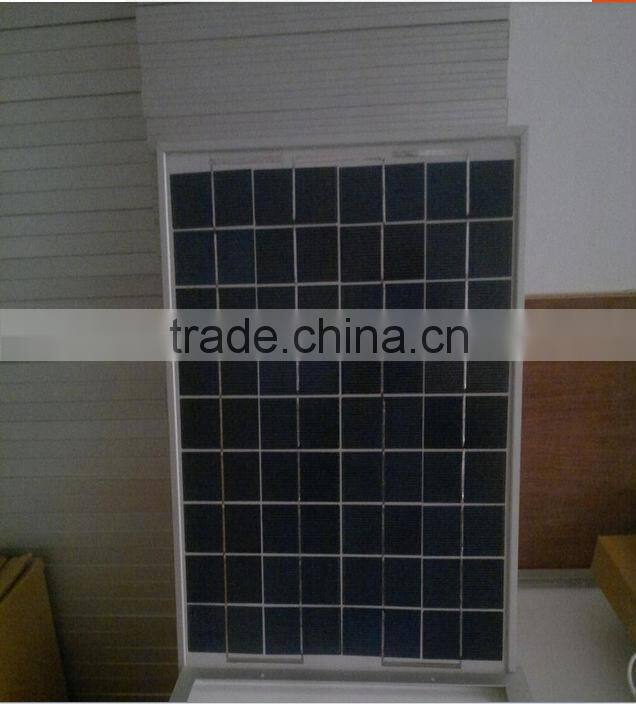

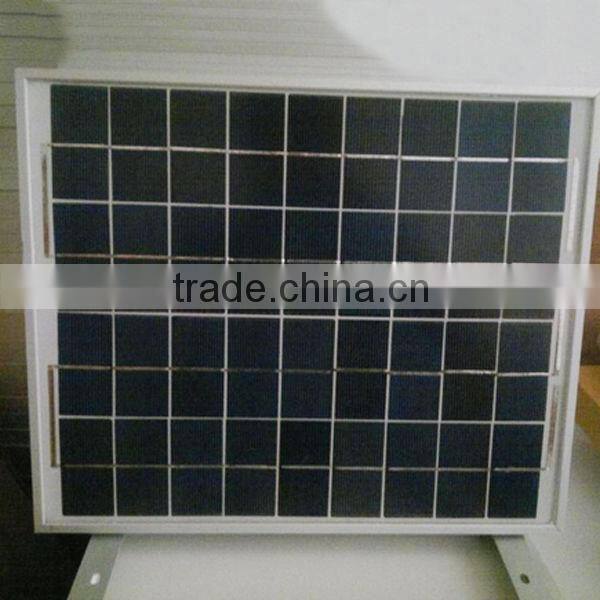

Sunmall High Quality Easy Installation 20W Solar Power System
Mechanical Characteristics:
Maximum Power(W) |
20 |
Optimum Power Voltage(Vmp) |
21.64 |
Optimum Operating Current(Imp) |
1.16 |
Open Circuit Voltage(Voc) |
25.14 |
Short Circuit Current(Isc) |
1.51 |
Cell Efficiency (%) |
17.46 |
Module Efficiency (%) |
15.40 |
Tolerance Wattage(%) |
0~+3% |
NOCT |
47°C +/-2°C |
Temperature Coefficient:
Temperature Coefficients of Isc(%)°C |
+0.04 |
Temperature Coefficients of Voc(%)°C |
-0.35 |
Temperature Coefficients of Pm(%)°C |
-0.45 |
Temperature Coefficients of Im(%)°C |
+0.04 |
Temperature Coefficients of Vm(%)°C |
-0.35 |
Product Wattanty:
10 years for the workmanship
12 years power output no less than 90%
25 years power output no less than 80%
Features:
1. High efficiency solar cells ensures high performance pv modules and creat more power in peak hours.
2. 3.2mm high transmissive low iron tempered glass, EVA laminate and water-proof TPT yield long life modules while enhancing cell performance.
3. Bypass diodes to avoid hot-spot effect.
4. Pre-cable with fast-connecting systems for convenient installation.
5. Stable, heavy duty anodized aluminum frames with convenient mounting-access for high wind-pressure and snow load.
6. The backside of frame is equipped with drainage holes in order to eliminate the risk that rain or snow water may accumulate in the frame trough and freeze or even bend the frame in cold
weather.
7. 25-year limited power warranty.
Sinski solar panel offers industry leading high performance and are designed specially to meet our clients' demands for residential, commercial and industrial use from small installations to multi-megawatts power plants.
8. Designed for grid-connected power plants up to 1000VDC. Ideal for use in the large stand-alone systems for battery charging or water pumping as well.
Polycrystalline Silicon
Monocrystalline Silicon
Type |
Frame |
PCS/Pallet |
Pallets/Container |
PCS/Container |
40HQ 1650X992 156P 60cells |
46 |
23 |
28 |
700 |
Workshop Photos:
Our company designs and produces small solar panel with different specification and size. We utilize high transparent epoxy resin to encapsulate small solar panel and employ high-intensity and anti-distorting PCB board (hard pasteboards and glass fiber boards) as baseboard. We import different famous-brand solar cells (125/156) for solar panel. Our epoxy resin solar panel is UV resistant and yellowing resistant. All of our epoxy resin solar panels are environment friendly and fulfill ROSH directives.
Small solar panel ranges 0.1W to 2W in general, has different size and shape. It has wide applications and can be used to various electronic products and lighting products. We can design and produce small solar panel and control circuit. Control circuit avoids battery of electronic products and lighting products overcharging and over-discharging.
