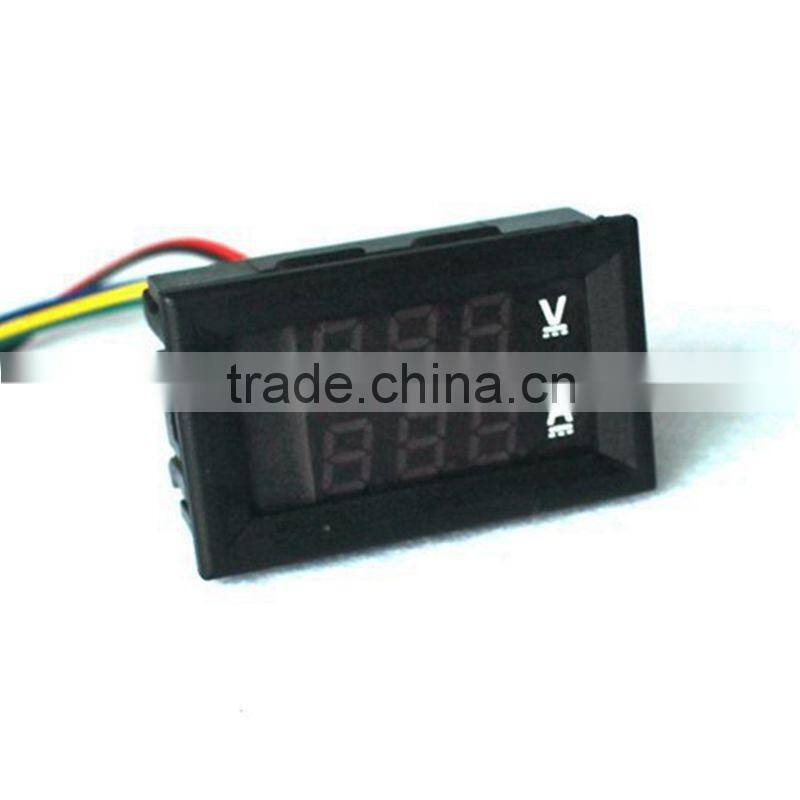

0.28" DC 0-100V/50A Red Blue Digital Voltmeter Ammeter 2 in 1 DC Volt Amp Meter With 50A/75mV Ampere Shunt
US$ 2 - 4.5
MOQ: 50 Sets
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
Lanho
Model Number:
JYC 0603110
Payment & Shipping
Payment Methods:
Port of Shipment:
shenzhen/HK
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
2016 Top Red Blue LED DC 0-30V10A Dual Display Voltage Meter Digital LED Voltmeter Ammeter Ampermeter Panel Amp Volt GaugeUS$ 1 - 4MOQ: 50 Pieces -
DC 100V 100A Car Digital Electrical Ammeter Voltmeter Amp Current and Voltage Meter LED Dual Red Blue 0.28" TestersUS$ 1 - 3MOQ: 100 Pieces
-
2016 New 4.3" LCD Monitor Night Vision Fish Finder Underwater Fishing Camera w/ Video Recording and Photo Shooting for FishingUS$ 80 - 100MOQ: 20 Pieces
-
2016 New Arrival Wholesale RJ45 RJ11 Cable Tester USB Network Lan Cable TesterUS$ 1 - 4MOQ: 100 Pieces
-
2016 New Arrival Small Portable 2 Wire LED Digital Voltage Meter Voltmeter DC 4.5~30V Blue,red,greenUS$ 0.6 - 2MOQ: 100 Pieces
Place of Origin
Guangdong, China
Brand Name
Lanho
Model Number
JYC 0603110
Display Type
Digital Only
Measuring Range
DC0-100V
Feature:
- Operating voltage:DC 4.5 ~ 30V
- Measure voltage: DC 0 ~ 100V
- Minimum resolution(V): 0.1V
- Measure current :50A (require external shunt)
- Minimum resolution(A): 0.1A
- Operating current: <20mA
- Display: three 0.28" LED digital tube

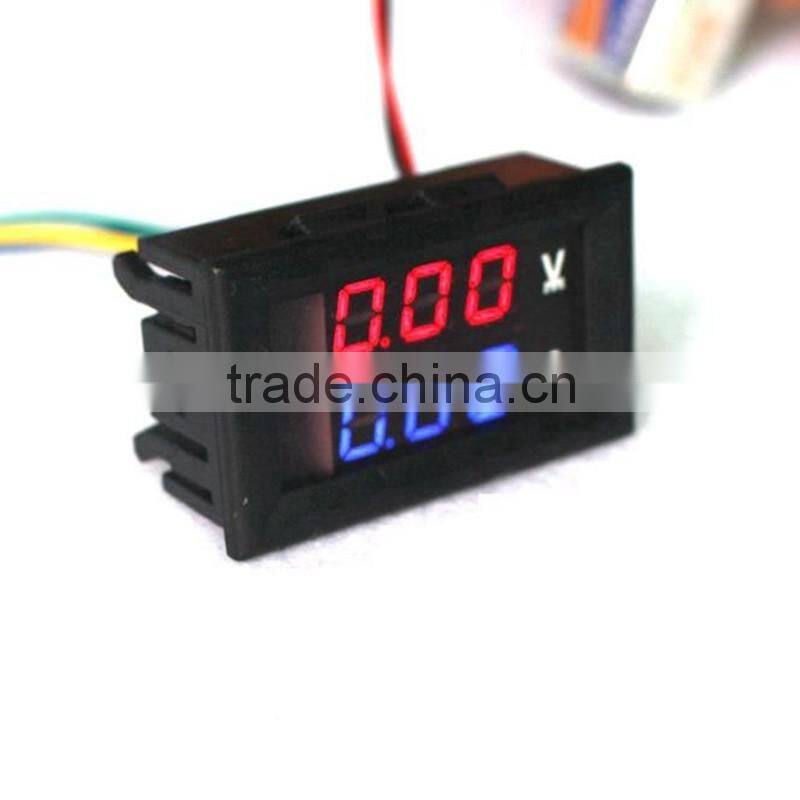

- Display color: Red and Blue (two-color display)
- Dimensions: 48 x 29 x 21mm
- Mounting cutout: 45.5 x 26.5mm
- Refresh rate: about 500mS / times
- Measure accuracy: 1% (± 1 digit)
- Operating temperature: -10 to 65° c
- Operating Humidity: 10 to 80% (non-condensing)
- Working pressure: 80 to 106 kPa
- Applications:Suitable for automotive/electric cars/motorcycles battery monitoring or other products voltage current measurement

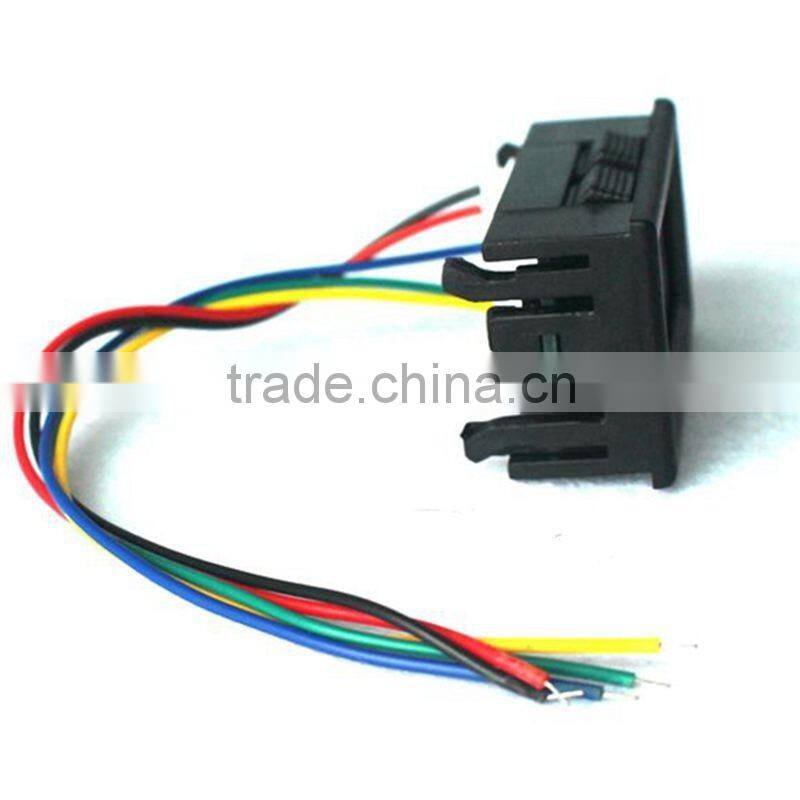

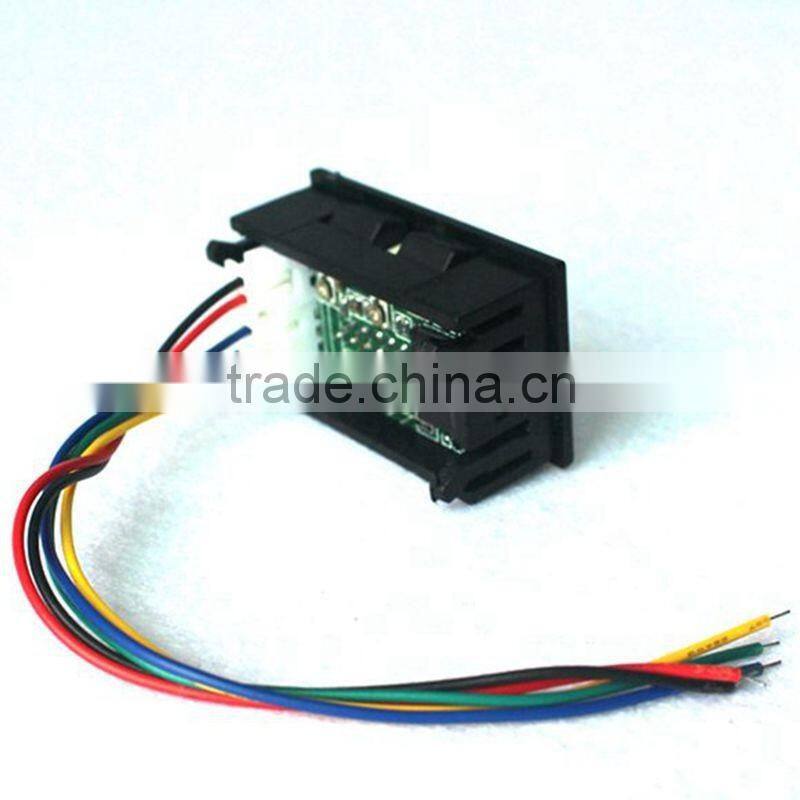

Wiring:
- Black line (thin): vacant or buck circuit (module) negative
- Red line (thin): power supply+
- Black line (thick): COM, common measuring
- Red line (thick): PW+, measuring terminal voltage input positive
- Yellow line (thick): IN+, current input+
-

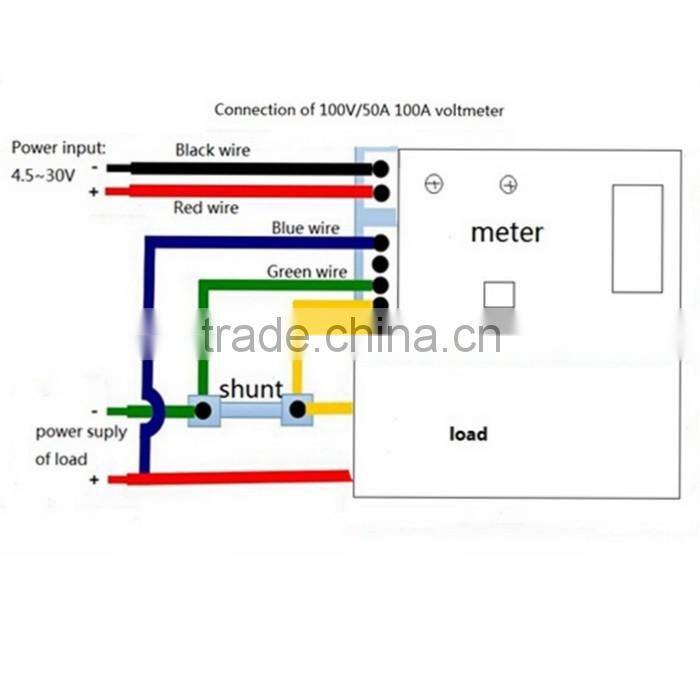

(Please refer to the wiring diagrams for more details)
Notice:
- The voltage between the thin red and thin black lines must be within DC 4.5-30V
- The ammeter can only be connected to the negative of the device under test
- Exceeds 5A, long-term full load working continuously, it is recommended that the measurement side of the leads are directly soldered to the socket
- When the black thin line vacant, it is better to use insulating tape around the exposed part of the wire, to prevent short circuits
- If just be used as a voltmeter, it is recommended that the yellow line and the black line were connected together, to prevent the ammeter digital flashing
-
It is unsuitable to use this meter to test current less than 10A . You can buy DC voltmeter ammeter 0-10A here

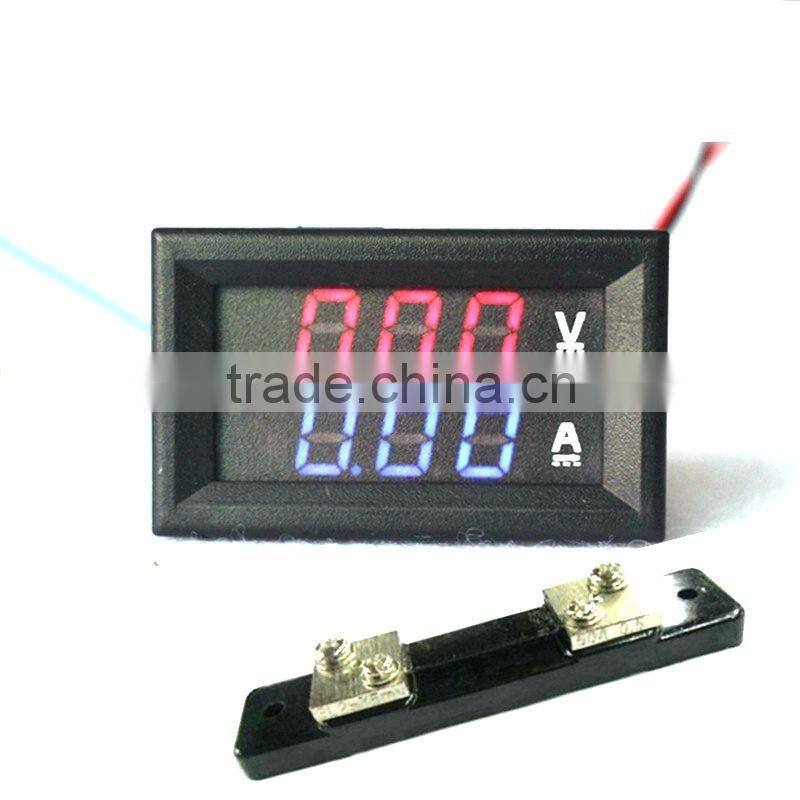

Package Includes:- 1x Two colour Digital Voltmeter Ammeter Meter

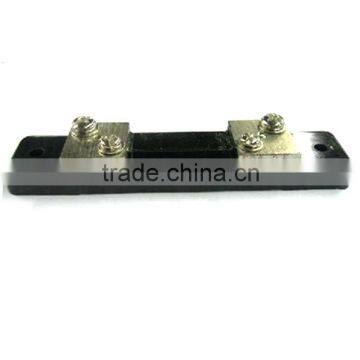

- 1x 50A/75mV Current Shunt
-
NO Retail Box. Packed Safely in Bubble Bag.
