dvb-t2 decoder
1. SPECIFICATION
Tuner
Input Connector: IEC 16902. Female
Input Frequency Range: VHF&UHF
Num of RF Inputs: 1
Input impedance: 75 ohm
RF output Connector: (bypass)IEC 169-2 Male
Loop through: 47-862 MHz
Demodulation
Standard: ETSI EN300 744 and ETSI EN302 755
Guard interval Modes: Supports all guard interval(1/128 to 1/4)
FEC Modes Rate: 1/2,2/3,3/4,3/5,4/5,5/6,7/8
Carriers/Constellation: All modes supported including non hierarchical
Demodulation: QPSK/QAM16/QAM64/QAM256 ,FFT Model from 1k to 32k
screen menu (OSD): English, Russian, French, Deutsch, Italian, Spanish, Swedish, Danish, Portuguese, Finland, Holland, Turkish, Czech etc.
Channel bandwidth: VHF 7MHZ 174-230MHZ
UHF 8 MHz 470-860MHZ
System Resources
Microprocessor: Mstar7802 chip+1236+MXL608 or RT836S Tuner
SDRAM memory: DDR2 512 Mb
Main Processor: Mstar7802 chip 550MHZ
FLASH memory: 1× 8MB FLASH
Display Planes: 7 SEGMENTS LED
Graphic resolution: ARGB8888
2. Features
1.Fully DVB-T/T2 compliant
2.Max 4000 Channels Memory Space
3.Multi-language OSD supported
4.Easy and fast software upgrade through USB port/OTA etc
5.Support Auto/NTSC/PAL and 4:3 16:9 wide screen
6.Full-Function IR remote control
7.Parental lock function
8.7 Favorite channel groups
9.Channel search in automatic, manual search
10.Subtitle and Teletext support
11.Seven days EPG with detail information viewing
12.Support USB PVR function
13.Support Time-shift function
14.Various channel editing function (favorite, move, lock, rename).
15.Parental control for channels.
16.Automatic Save for last channel.
17.Support FAT32 and NTFS file system.
18.Watch & record the current channel.
19.Scheduled recording via EPG.
20.Wakeup automatically & record.
21.Antenna power supply.
22.LCN service.
Shipping: 25~30days after deposit

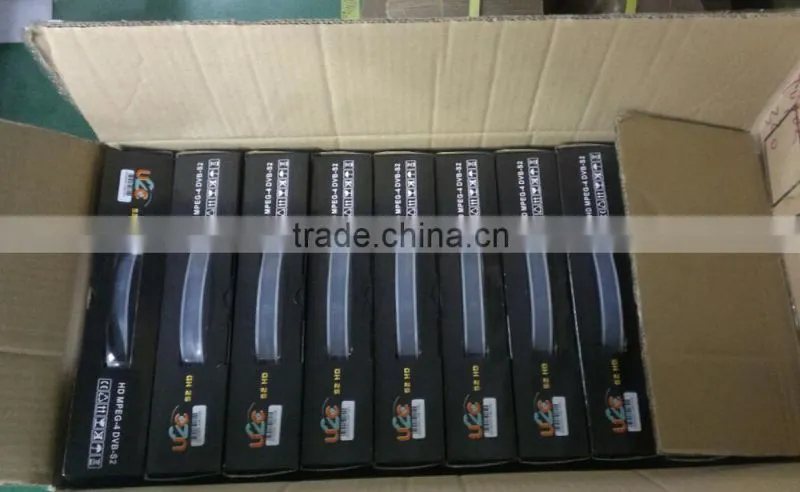

Packing:Printed box+ external CTN

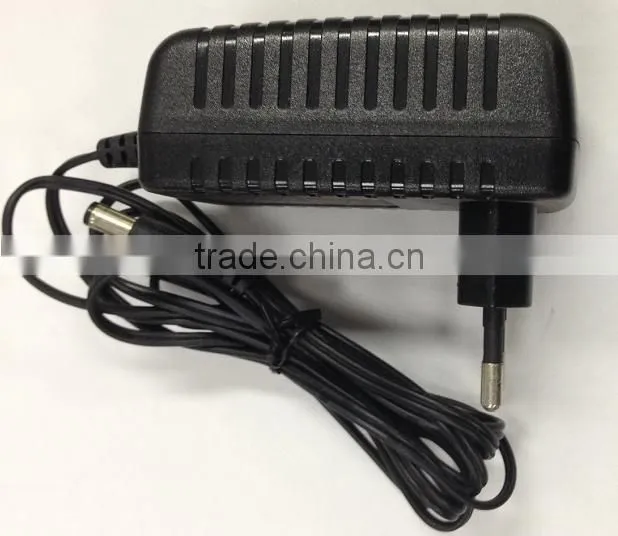

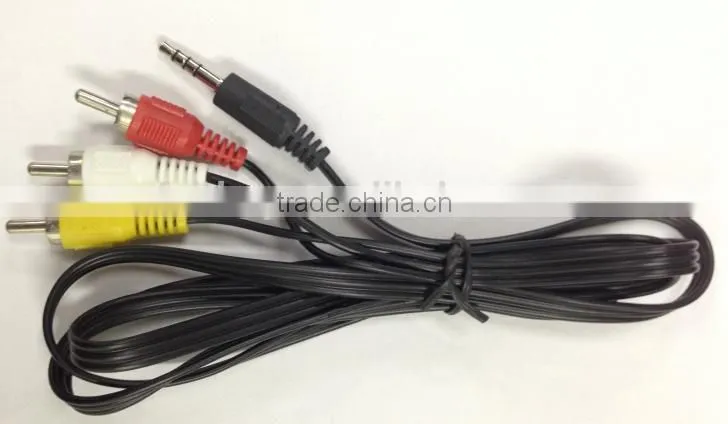

Accessories list in printed box:

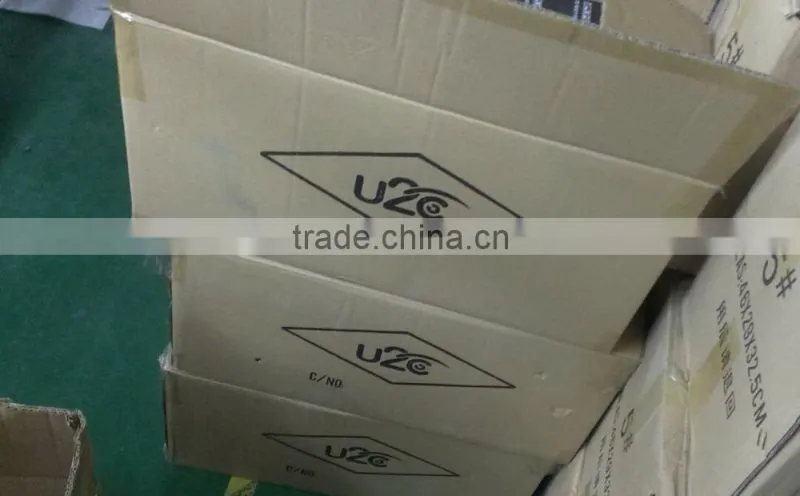

External CTN:
1. one Year free warranty For 2 years warranty need add 0.5usd
2. Customized service + OEM
SHENZHEN GOODTV ELECTRONICS CO.,LTD. is the first high-tech company which specialize in designing, R&D, manufacturing and marketing of digital audio & video device in china.
GOODTV has dedicated itself to the new technology of digital receiver products. we have successfully launched highdefinition satellite receiver, high definition terrestrial receiver&DVB-T2 receiver, hybrid receiver and android tv box with the brand GOODTV.
We have 5000 square meters factory with advanced equipment,we have more than 300 employees,each of employee is well trained and educated. All of our products are strictly compliant with rules such as CE, FCC,3C and ROHS,with the innovative design together with customer care, we keep our products most popular not only in China but also in Europe, America, Africa, Australia, Middle East and Asia. Our concent is constantly providing best ratio among quality, price and after-sales services;
Our mission is to value our biz partner with win-win relationships;
Our goal is to bring tailored TV box into thousands of householders, Join hands in hands with GOODTV means you are having a whole professional team of your own!
Brand agency or OEM&ODM are always welcome for us. Just a call or an email, you will win a lifetime partner!
