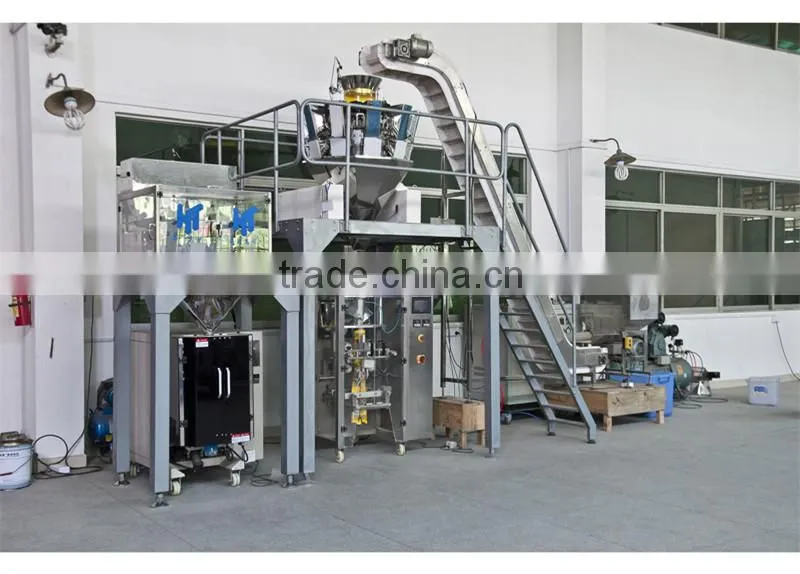

Automatic Food Weighing and Packing System
Model: HT-A
This machines completes the whole packing procedure of weighing, loading materials, bagging, date printing, charging(exhausting) and products transporting automatically.

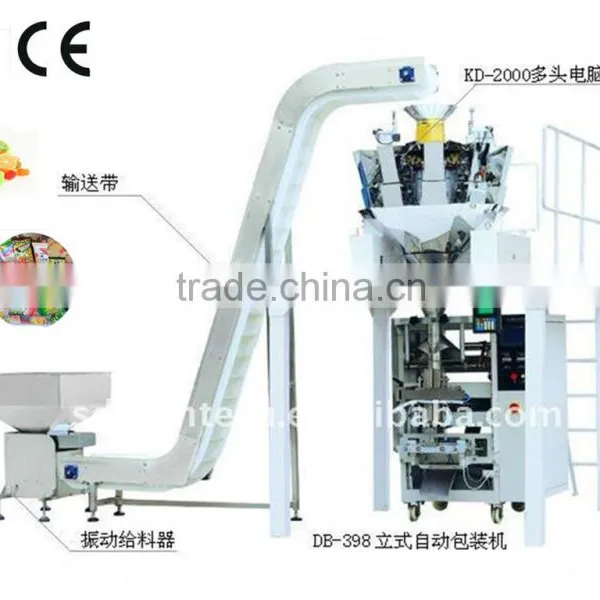

There are combined by one material vibration feeder, conveyor, multihead weigher, platform, packing machine and discharge conveyor.
It is fully automatic. When there is no material on the weigher, the weigher will give signal to the conveyor to let it send material. When the weigher stops, the packing machine will stop packing. When the packing machine has problem, the weigher will stop too.
In a word, it is fully automatic and can save you labor and time as well as cost.
Applications
It is suitable to use in packing the high accuracy an easy fragile material.
Such as: puffy food, crispy rice, jelly, candy, pistachio, apple slices, dumpling, chocolate, pet food, small hardwares, medicine etc.
Feature of the food packing system
1. Equipped with safety protection, comply with firms safety management requirements.
2. The packing machine use PLC control with stable, reliable biaxial high accuracy output and color touch screen, bag-making, measuring, filling, printing, cutting, finished in one operation.
3. PLC Control with touch panel step by Step Instruction.
4. Pulling belt film draw down system is controlled by servo motor, high precision orientation, size more nicety.
5. External film releasing mechanism: simpler and easier installation of packing film.
6. Adjustment of bag deviation just needed to be control the touch screen. Operation is very simple.
7. Close down type mechanism, defending powder into inside of machine.
8. Make pillow bags and hanging bags in terms of customers different requirements.
9. It can finished all processes bag froming, bag sealing, packaging, date printing automatically.
The working process
Atomatic feeder—Automatic convey—Automatic weighing—Automatic filling—Automatic bagging—Automatic bag sealing—Automatic products convery
Details:

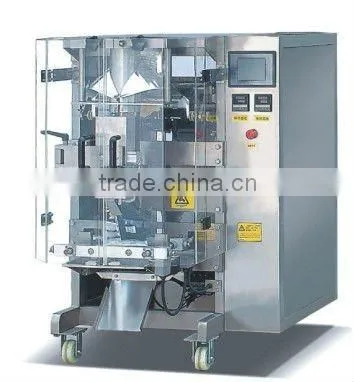

1. HT-398 vertical Form-Fill-Seal machine
Suit for: OPP/CPP, CPP/PE, MST/PE and other types of heat sealing film

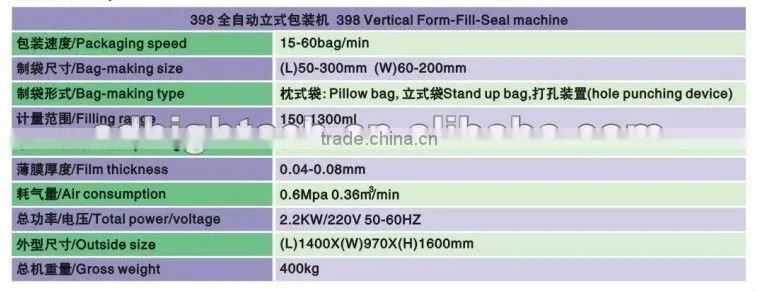

Specification:

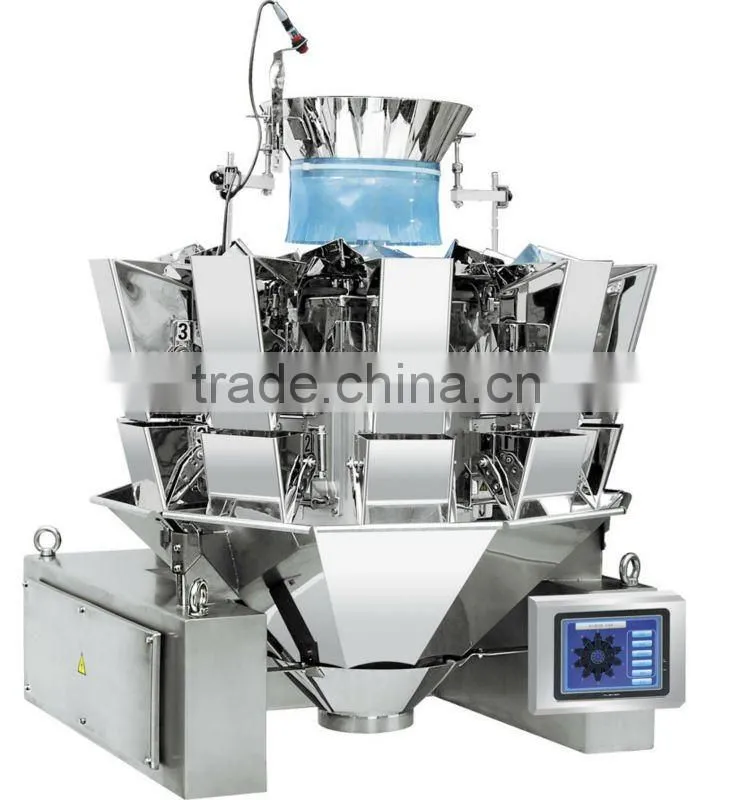

2. Multihead Computerized Combination Weigher
Technical Parameters:
| Weighing Range | 8-1000g |
| Average error/bag | 0.2-0.5g |
| Accuracy | ±0.1-1.5g |
| Max. weighing Speed | 60bags/min |
| Hopper volume | 1300ml |
Mode of driving |
Load cell |
| Hopper format | Double-row non-memory bucket |
| Driving system | Step motor |
| Preset function | 50 types |
| Control panel | 10 inch touch screen |
| Material | 304 stainless steel |
| Combination volume | 3000ml |
| Power supply | 220V |
| Power | 1500W |
| Frequency | 50-60Hz |
| Rated current | 9A |
| Net weight | 300Kg |
| Gloss weight | 360Kg |
| Dimension | 950(L) X 950(W) X 1000(W)mm |
Main Functions:
(1). With stable 10-bucket structure, to choose the best combination instantaneously from abundant weight combinations by computer.
(2). With instantaneous reaching of correct calculating by high-precision weighing load cell.
(3). The opening and clossing speed of the bucket door can be finely adjusted according to the features of the measured material to prevent crashing and damaging.
(4). All the parts touching the material are made by stainless steel, neatness and health.
(5). Powerful data automatic statistics feature can record the quota of each bags, percent of pass, single bag error for each batch of production.
(6). The bigger weighing range is up to 1000g per dump.
(7). Select device: dimple bucket, collection bucket, printing device, error separation device.
(8). Rejecting function: all over weight or down weight products will be rejected by the weigher automatically, so that will be easy to reweigh and save the packing film.
(9). Strong compatibility: assembling directly on te top of the packaging machine in order to make compact structure.
(10). Multilanguage to choose: JAP, GER, SPA, DAN, DUT, FIN, FRE, POL, IT, TUR etc.
(11). Preset function: max. 50 types, easy to keep your products and weight data for the future use.
(12). To save plenty raw material and labor cost, fast return on investment.

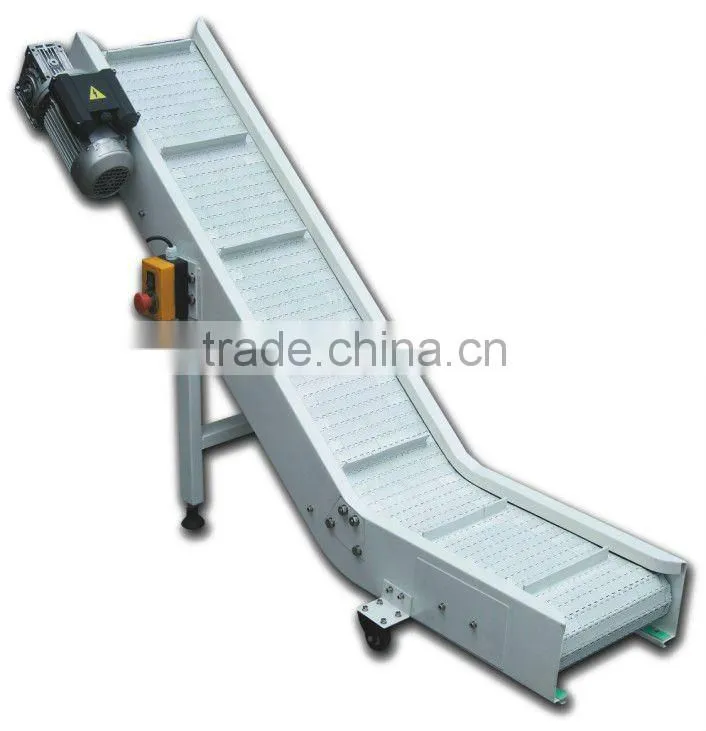

3. Automatic food conveyor

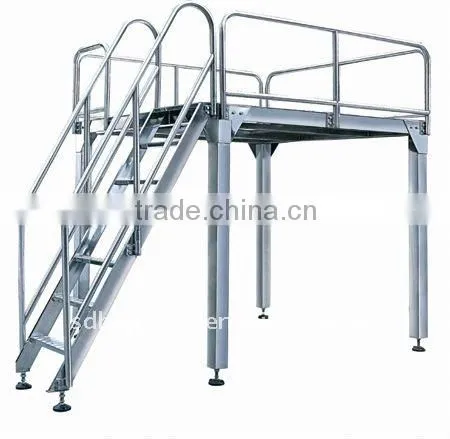

5. Platform
6. Discharge conveyor
Pack in 3 steps:
(1). all the buckets pack in the carton
(2). wrap the main body with plastic film
(3). pack them all in the wood or non-wood case
The above machines which we supply it to you, we can give you one years after sales warranty, we can also send our engineer to you factory to install this equipment and train your staff, but the Buyer should pay the round air ticket cost and arrange the hotel accommodation as well as the means for Seller’s engineer.
Foshan High-tech Machinery Equipment Co., Ltd is the leader of high accuracy measuring machines manufacture, with strong economic strength and good products reputation, high quality study and service team.
The computerized multihead weigher is the main products of our company, it is high accuracy, fast speed, highly automatic, widely used in the ration packing of candy, sunflower seeds, pop corn, granulate and frozen foods.
Besides the 10 heads multihead weigher, we also have the new products: 4 heads weigher, 8 heads weither and 14 heads multihead weigher.
We will service all customers with high quality products, best after-sales, and reasonable prices.If any of the items listed in the catalogue meets your interest, please do not hesitate to ask us for quotations and offers, which will receive our careful attention, and we assure you of our close cooperation at all times.
