Specifications
1.PLC Control with touch panel step by Step Instruction2.Stainless steel 304 contact parts
3.Simple,functional,low maintenace

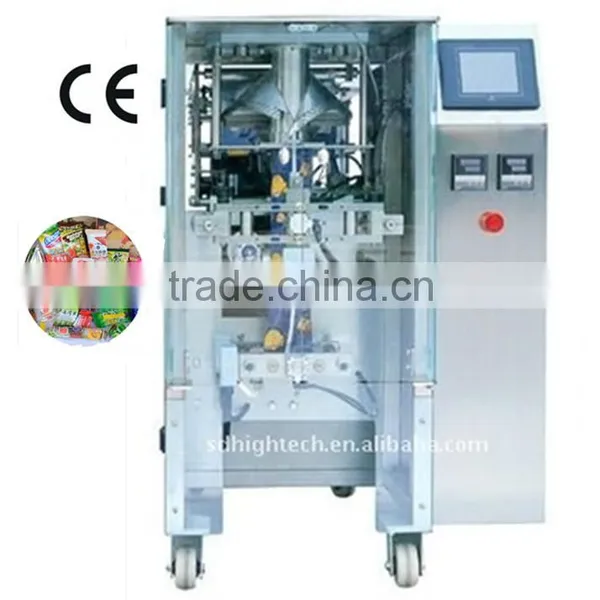

Small Vertical Automatic Form-Fill-Seal Packaging Machine
Model: HT-320
Application:
This machine is suitable to use in packing rice, shrimp roll, peanuts, popcorn, oatmeal, watermelon seeds, sugar, salt, small granulate products, small hardwares, medicine etc.
Specification:
| Model | HT-320 |
| Bag size | 50-150mm (W); 80-200mm(L) |
| Measuring range | 150-500ml |
| Packing speed | 5-60bags/min |
| Roll film thickness | 0.05-0.08mm |
| Horizontal seal/heating piece | 220W/55V AC |
| Vertical seal/heating piece | 100W/110V 500W/110V AC |
| Currency | Single phase 220V/50HZ |
| Power | 2.2KW |
| Air consumption | 0.7Mpa 300L/min |
| Machine size ( LxWxH ) | 1000x910x1000 (mm) |
| Weight | 150kg |
Features:
(1) The touch-sensitive screen can display the state of machine, operation instruction and the state of break-down in either Chinese or English, easy to operate.
(2) Equipped with servo winding system, pneumatic control system. Maximize to improve the whole machine's precision, reliability and stability.
(3) The perfect automatic alarm safety protection, little waste.
(4) This machine completes the whole packing procedure of measuring, feeding, bagging, date printing, charging (exhausting), products out-putting, counting automatically.
(5) Bag type: making pillow, vertical gusset bag, hanging bag according to customer's different requires.
(6)Packing film: OPP/CPP, CPP/PE and so on. Must be roll film, outdiameter<=400, inside diameter=75mm;the color mark must be very clear compare to the film color
