Specifications

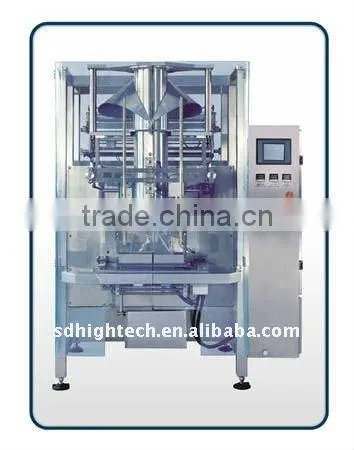

automatic packing machine, automatically filling, sealing, cutting and printingfood packing machine, packaging machine
Application:
It is suitable for packing fragile bulk products with requirement for high counting precision, such as: puffed food, potato chip, crispy rice, jelly, candy, happy fruit, apple chip, boiled dumpling, rice dumpling and
medicine and so on
1. Features:
Imported PLC automatic computer controlled system, chinese/English touch screen operation system, clearly showing the working condition and operation indication.
Used the high accuracy serve-motor to drive film, steady, with the photo-electric position tracking system, high accuracy.
Digital number type temperature control system, temperature control good and stable; with the tear type sealing part to assure the good and nice sealing.
Automatic malfunction alarm function: low temperature, no film, no ink belt, no material, serve malfunction, no color mark signal. When open the glass door, the machine will immediately alarm or stop.
This machine if equipped with the measuring equipment, it can do: measuring, dosing, sealing bag, date printing.
2. Technical:
Item |
Explanation |
Packing speed |
10-60 bag/min |
Bag size |
(L)100-450mm (W)80-350mm |
Measuring range |
150-5000ml |
Max film width |
720mm |
Film thickness |
0.06-0.10mm |
Air consumption |
550L/min 0.6×105Pa |
Packing material |
Heat sealing double-layer filmOPP/CPPOPP/CEMST/PEPET/PEor thick PE film |
Power/voltage |
6KW/220V 50-60Hz |
Machine size |
1530×1200×1700mm |
Machine net weight |
780kg |
