Polycrystalline(156 Series) Solar Module / Solar Panel / PV Module / PV Panel

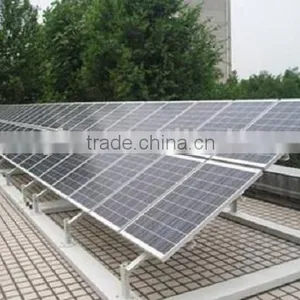

Polycrystalline(156 Series) Solar Module / Solar Panel / PV Module / PV Panel thumbnail-1

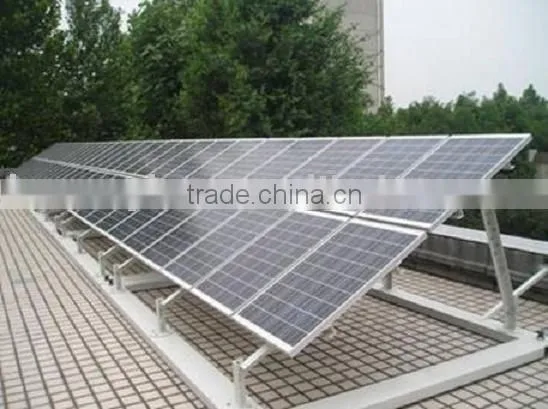

Polycrystalline(156 Series) Solar Module / Solar Panel / PV Module / PV Panel photo-1
Negotiable MOQ: 5 Pieces (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
TONGHUA
Model Number:
5W~220W
Contact Supplier Request Quote Chat Now
Haining Tonghua Import & Export Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
shanghai/ningbo
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Zhejiang, China
Brand Name TONGHUA
Model Number 5W~220W
Material Polycrystalline Silicon
Size 156mmx156mm 48/6x8pcs
Number of Cells 1PCS
Max. Power 180W.200W,as your request

Specifications

PV Module
CE Certification have approved
high quality with reasonable price
10years guarantee
could be energy saver more

Polycrystalline(156 series) Solar Module / Solar Panel / PV Module / PV Panel



Model NO.: 5W~220W
Standard: 5W~230W
Productivity: 25 MW / year
Trademark: TONGHUA
Origin: China
Min. Order: 200 pcs
Rated Voltage: 12V
Certification: CE



Product Description

Polycrystalline(156 series) Solar Module / Solar Panel / PV Module / PV Panel

FEATURES
`Long Service Life
`High Efficiency Solar Cells
`Special Aluminum Frame Design
`High Transmission,Low Iron Tempered Glass
`Advanced Cell Encapsulation

APPLICATIONS
`Solar power stations
`Rural electrification, Small home power systems
`Power supply for traffic, security, gas industry
`12V and 24V battery charging system
`Other industrial and commercial applications

Module Type Peak Power (Wp)   Vm (V)         Im(A)            Voc(V)          Isc(A)            Dimension (mm)            Weight (Kg)
KM(P)5 5W 17.56 0.286 21.52 0.31 330x190x28 0.95
KM(P)10 10W 17.56 0.6 21.52 0.66 380x290x28 1.42
KM(P)15 15W 17.56 0.856 21.56 0.93 450x340x28 1.95
KM(P)20 20W 17.56 1.14 21.56 1.23 550x340x28 2.4
KM(P)25 25W 17.62 1.42 21.1 1.63 680x340x28 3.1
KM(P)30 30W 17.56 1.71 21.56 1.84 550x510x28 3.5
KM(P)40 40W 17.56 2.28 21.56 2.45 710x510x28 4.6
KM(P)50 50W 17.74 2.83 21.56 3.04 830x510x35 5.2
KM(P)55 55W 18.2 3.04 21.85 3.24 830x540x35 5.5
KM(P)60              60W 17.56 3.43 21.52 3.68 780x680x35 6.5
KM(P)70 70W 17.2 4.1 21.6 4.22 920x680x35 7.7
KM(P)80 80W 17.74 4.51 21.56 4.98 970x680x35 8.1
KM(P)100 100W 17.74 5.65 21.56 6.32 1210x680x35 9.9
KM(P)110 110W 18.2 6.05 21.8 6.49 1210x680x35 9.9
KM(P)120 120W 17.56 6.85 21.56 7.35 1500x680x35 9.9
KM(P)130 130W 17.9 7.26 21.6 7.83 1480x680x35 11.6
KM(P)140 140W 36.4 3.86 43.7 4.32 1500x680x50 11.8
KM(P)150 150W 26.67 5.64 32.35 6.31 1210x990x46 14
KM(P)160 160W 27.1 5.93 32.45 6.64 1210x990x46 14
KM(P)170 170W 27.1 4.71 43.2 5.09 1280x990x46 14.8
KM(P)180 180W 36.28 4.97 43.48 5.35 1330x990x46 15.3
KM(P)200 200W 27.1 7.4 32.45 7.95 1480x990x46 17
KM(P)215 215W 29.94 7.26 36 7.9 1646x995x50 19.5
KM(P)220 220W 30 7.4 36.6 8.1 1646x995x50 19.5
KM(P)225 225W 30.24 7.45 36.6 8.1 1646x995x50 19.5
KM(P)230 230W 30.48 7.6 36.6 8.17 1646x995x50 19.5
