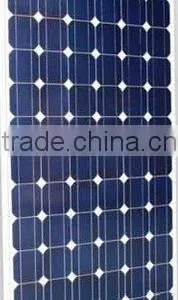

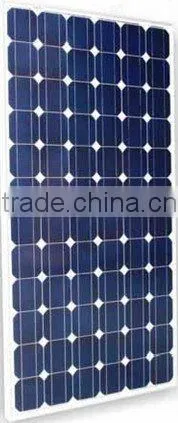

Solar Cell/45W Solar Panel, Made of Multiple Crystalline Silicone Cells

Name: Solar Cell/45W Solar Panel, Made of Multiple Crystalline Silicone Cells
Brand: TONGHUA
SKU: 128769231

Negotiable MOQ: 5 Pieces (Price negotiable depending on order volume and customization)

Key Specifications

Place of Origin:

Zhejiang, China

Brand Name:

TONGHUA

Model Number:

solar cell

Haining Tonghua Import & Export Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

shanghai/ningbo

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Zhejiang, China

Brand Name TONGHUA

Model Number solar cell

Material Polycrystalline Silicon

Size less 800 * 541 * 35mm

Number of Cells 1PCS

Max. Power 45W

Specifications

solar cell
CE Certification have approved
high quality with reasonable price
10years guarantee
could be energy saver more

solar cell

Model Number: EEMB Solar Panel 45W ESP045

Country of Origin:

Brand Name:

Primary Competitive Advantages:

Main Export Markets:

Key Specifications/Special Features:

45W solar panel, for 12V DC applications
Made of multi-crystalline solar silicone cells
Peak power: 45 watts (day time with fully sun shine)
Open voltage circuit (Voc): 21V
Max. power voltage (Vmp): 17.5V
Max. power current (Imp): 2.6A
Short circuit current (Isc): 3A
Cells in series: 36 pieces
Nominal working temperature: 43 ±2 degrees
Dimensions: less 800 x 541 x 35mm
Installation: solar panel face directly to the sun
Weight: less than 3.9kg
Working life: more than 25 years
Standard testing condition: 25 degrees Celsius, AM1.5 spectrum, 1,000W irradiations
Insulation: ≥100M Ohms
Voltage standoff: 2,000V AC, 3,000V DC
Wind pressure: 60m/s
