Help CenterPV Solar Panel
Negotiable
MOQ: 10 Pieces (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
TONGHUA
Model Number:
THSP200W-280W
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai/Ningbo or as the request
Delivery Detail:
Delivery time depends on order quantity.
Related Products
Place of Origin
Zhejiang, China
Brand Name
TONGHUA
Model Number
THSP200W-280W
Material
Polycrystalline Silicon
Size
1950x990x50
Number of Cells
72
Max. Power
280w
Specifications
`Long Service Life`High Efficiency Solar Cells
`Special Aluminum Frame Design
`High Transmission, Low Iron Tempered Glass
Product Description

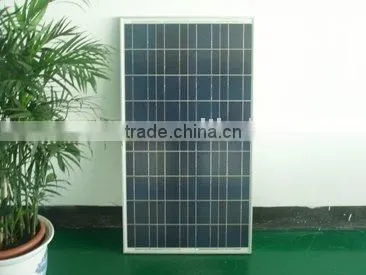

Our THSP200W-280W is made from 72PCS 156x156mm poly-crystalline silicon cells, which efficiency is high at 14% around.
Laminated with high quality toughened glass, EVA and TPT, the operating characteristics of solar cells can be ensured under any climatic conditions.
| MODULE | THSP200W-280W | ||||||||||||||||
| Encapsulation | Glass/ EVA/ Cells/ EVA/ TPT | ||||||||||||||||
| Size and Number of cells | 156mmx156mm 72/6x12pcs | ||||||||||||||||
| Maximum Power (Pmax) | W | 200 | 210 | 220 | 230 | 235 | 240 | 245 | 250 | 255 | 260 | 265 | 270 | 275 | 280 | ||
| Power Tolerance | ±5% | ||||||||||||||||
| Open Circuit Voltage (Voc) | V | 42.3 | 42.7 | 43.0 | 43.3 | 43.4 | 43.6 | 43.6 | 43.8 | 43.8 | 44.0 | 44.3 | 44.5 | 44.6 | 44.8 | ||
| Short Circuit Current (Isc) | A | 7.39 | 7.45 | 7.52 | 7.59 | 7.61 | 7.65 | 7.78 | 7.87 | 7.98 | 8.09 | 8.15 | 8.20 | 8.28 | 8.33 | ||
| Maximum Power Voltage(Vmp) | V | 32.7 | 33.3 | 33.8 | 34.1 | 34.2 | 34.4 | 34.5 | 34.6 | 34.7 | 34.8 | 34.9 | 35.0 | 35.1 | 35.2 | ||
| Maximum Power Current (Imp) | A | 6.12 | 6.31 | 6.51 | 6.74 | 6.87 | 6.98 | 7.10 | 7.23 | 7.35 | 7.47 | 7.59 | 7.71 | 7.83 | 7.95 | ||
| Max.syst. Oper. Voltage | V | 1000V | |||||||||||||||
| Diodes | 6 by-pass | ||||||||||||||||
| Dimensio | mm | 1950x990x50 | |||||||||||||||
| Weight | kg | 24 | |||||||||||||||
| Operate Temp. scope | -40 / +85 | ||||||||||||||||
| Relative humidity | 0 to 100% | ||||||||||||||||
| Resistances | 227g steel ball fall down from 1m height and 60m/s wind | ||||||||||||||||
| Warranty | Pm is not less than 90% in 10 years and 80% in 25 years | ||||||||||||||||
