60w-120w Monocrystalline Solar Panel

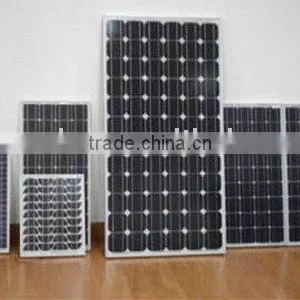

60w-120w Monocrystalline Solar Panel thumbnail-1
60w-120w Monocrystalline Solar Panel photo-1
Negotiable MOQ: 10 Pieces (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
TONGHUA
Model Number:
THSM80W
Contact Supplier Request Quote Chat Now
Haining Tonghua Import & Export Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai/Ningbo or as the request
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Zhejiang, China
Brand Name TONGHUA
Model Number THSM80W
Material Monocrystalline Silicon
Size 1200*800*35
Number of Cells 36
Max. Power 120W

Specifications

Solar Panel Module
1)Top solar cell conversion efficiency
2)Entrapping light through textured solar cells in crystalline tech

solar panel module/Solar Panel/PV Module/Solar Power System
Product Description

We are  specialized to manufacture Solar Panels 0.1W to 360W. There are Monocrystalline Silicon Solar panels and Polycrystalline Silicon Solar panels. We manufacture epoxy resin solar panels and solar laminated panels, for solar laminated panels, there're two type: Low-iron tempered glass PV solar panels and PET laminated PV solar panels.

Solar panels Description
Item Name: Solar panels 80W
Item No.: THSM80W
MONO or POLY: MONO
Maximum Power (Wp): 80W
Maximum Power Voltage (V): 17.4
Maximum Power Current (A): 4.6
Number of Cells (PCS): 36
Size of solar panels (mm): 1200*800*35MM
Temperature coefficients of Pm (%): -(0.5± 0.05)degree. Temperature coefficients of Isc (%): (0.065± 0.015)%/degree.
Temperature coefficients of Voc(%): -(0.3± 0.05)% /degree
Temperature Range: -40degree~+85degree
Tolerance Wattage (e. G. +/-5%): ± 5%
Surface Maximum Load Capacity: 60m/s(200kg/sq. M)
Allowable Hail Load: 227g steel ball fall down from 1m height
Weight per piece (kg): 15
Cell Efficiency (%): >16.5%
Frame (Material, Corners, etc. ): Aluminum
Standard Test Conditions: AM1.5 1000W/m2 25degree
Warranty: 2 years product warranty and 25 years 80% of power

Solar Cells Features used on solar panels:
Top solar cell conversion efficiency
Entrapping light through advanced textured solar cells in crystalline technology.
Unique esthetic appearance of cells
Outstanding energy output in low light conditions through high shunt resistance.

Solar panels Features
High-efficiency silicon solar cells, more power in peak hours through cells
Optimized solar panels performance with Nominal Voltage 24/18/12V DC
Bypass diodes to avoid hot-sot effect, solar cells are embedded in a sheet of PET and EVA
3.2mm high transmission low-iron, tempered glass, unique esthetic appearance of solar cells
Attractive, stable, heavy duty anodized aluminum frames with convenient mounting-access, for high wind-pressure and snow-load.
The backside frames are equipped with drainage holes. So we eliminate the risk that rain or snow water may accumulate in the frame lumen and freeze or even bend the frame in cold season.
25 Years limited power warranty, Certificate: CE

Solar panels Applications:
Epoxy resin solar panels are designed for small solar products such as: Solar chargers, solar lawn lights, solar toys etc.

Our big solar panels are designed for solar grid-to systems up to 1000V DC, solar complete systems for batteries charging, solar street lights, solar traffic lights, solar garden lights, solar billboard lights and solar car charging systems etc. PET laminated solar panels are used for solar chargers.



Solar panels
Item No. Description Specification Packing 20‘ 40’
container container
THSM120W solar panels Wp(W) :120
Vmp(V):35.0
Imp(A):3.43
Voc(V):43.2
Isc(A) :3.70
Module size(mm):1450*660*35
Weight(kg):about 13		 2pcs/ctn 404pcs 838pcs
THSM100W solar panels Wp(W): 100
Vmp(V):35.0
Imp(A):2.86
Voc(V): 43.2
Isc(A):3.09
Module size(mm): 1200*670*35
Weight(kg): 10.0		 4pcs/ctn 540pcs 1140pcs
THSM80W solar panels Wp(W) :80
Vmp(V):35.0
Imp(A):2.29
Voc(V):43.2
Isc(A) :2.47
Module size(mm):1200*540*35
Weight(kg):about 7.5		 4pcs/ctn 676pcs 1428pcs
THSM60W solar panels Wp(W) :60
Vmp(V):35.0
Imp(A):1.71
Voc(V):43.2
Isc(A):1.85
Module size(mm):740*660*23
Weight(kg):about 6.5		 5pcs/ctn 1195pcs 2520pcs
