water heater module parts
- 10000 Unit / Units per Month
- shanghai
- T/T
Product Details
Place of Origin: | Zhejiang, China | Brand Name: | tonghua | Model Number: | project |
Type: | Other, collector project, Vacuum Solar Collector |
Product Description

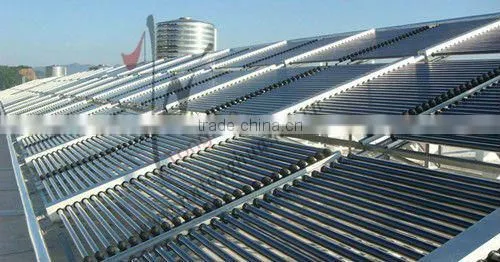

Description of Solar hot water Project:
Exactly, solar hot water project is a large solar heating system that provides hot water from an array of solar collectors. It consists of a solar collecting system, a water storage system, a control system and a pump system. The working principle of the solar water heating project is similar to that for the solar domestic hot water system. It's just like a large central heating system.
Application of Solar hot water Project:
Solar hot water project can meet the need for large quantities of hot water by factories, hospitals, hotels, schools, etc.
Features of Solar hot water Project:
1. Solar hot water project is to supply hot water collectively, whose performance is like the central air-conditioning system;
2. Take solar radiation as the heat energy, energy saving is up to 80%;
3. Reduce the emission of greenhouse gas; the system is environment-friendly;
4. Combine with the auxiliary heating system to supply hot water all day round;
5. Constant temperature controlling guarantee hot water supply at any time;
6. Overheat protection, lightning protection, wind-resistance, reliability and safety;
7. Design according to the building style and hot water demand.
8. Can build a hot water heater by solar energy from 500L to Maximum
9. Control temperature and water colume by automatic intelligent controller
10. Very easy installation

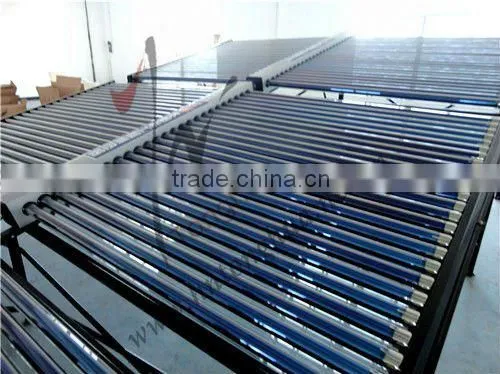

Solar Storm Solar Collector Project For Hot Water Supply
Deatil Specification of Solar Collector Project
- Tube quantity : 50 pcs tubes, Cu-S/S-AL/N absorb coating (Three target) vacuum tubes
- Tube size: Dia:58mm * Length: 1800mm
- Inner manifold: Food grade stainless steel (SUS304-2B), 0.4mm thickness
- Outer manifold: Stainless colored steel, 0.4mm thickness
- Frame material: Painted galvanized steel, 1.5mm thickness
- Water tank insulation: High density polyurethane foaming, 55mm thickness
- Heat preservation: 72-80h
- Absorption rate: ≥93%, Heat radiation rate: ≤6%(100°C)
- Anti freeze: -40 °C, It can resist against 26mm hail
Work principle of Solar Storm solar collector project for quantity hot water supply
1. Solar collector absorbing heat from sunshine, water become hot in the manifol
2. Circulation pump make the water do circulation movement from the tank and the manifold.
3. Hot water will keep temperature by insulated storage tank
4. Can add electrical heater to heat the water for long term rainning days.
5. Work station and intelligent can start electrical and fill water automatic
For further more information feel free to contact:
Contact Us
- Haining Tonghua Import & Export Co., Ltd.
- Contact nameCindy Gao
- Phone86-573-87832229
- AddressNo. 307, Nanjie Road, Yuanhua Town
