Aluminum Electronic Miniature Sensor AM642

Aluminum Electronic Miniature Sensor AM642 thumbnail-1
Aluminum Electronic Miniature Sensor AM642 photo-1
US$ 0.1 - 50 MOQ: 50 Sets
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
GOLDSHINE
Model Number:
AM642
Contact Supplier Request Quote Chat Now
Ningbo Goldshine Electronic Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Ningbo or Shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Zhejiang, China
Brand Name GOLDSHINE
Model Number AM642
Usage Pressure Sensor
Theory Resistance Sensor
Output Analog Sensor

Aluminum Electronic Miniature sensor AM642

Product Characteristics:

Miniature Sensors AM642Colorless anodized; Hermetically sealed with glue to IP65. The Aluminum Load Cell is a low profile single point load cell designed for direct mounting of low cost weighing platforms. Its small physical size, combined with high accuracy and low cost, makes this load cell ideally suited for floor scale ,electronic floor scale, low profile floor scale ,digital floor scale, floor weighing scale, floor balance scale, frameless floor, frame type floor scale, explosion-proof floor scale, moveable floor scale, bench scale, cattle scales, pit scale, track scale, digital platform balances, digital weight balance,digital scale balance,digital precision balance,digital counting balance,digital electronic balance,digital body balance, platform balances, platform scale, baby scale, body scale.

Technical Parameter:

Capacity:

60Kg~500Kg

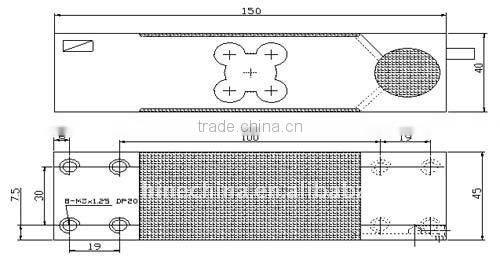

Outline Size:

45×40×150

Rated Output:

2.0mv/V±5%

Zero Balance:

±2% mV/V

Non-Linearity:

±0.015%R.O.

Hysteresis,Non-Repeatability:

±0.015%R.O.

Creep(5 Minute):

±0.02%R.O.

Temperature Compensated For Output:

±0.03%R.O./10°C

Temperature Compensated For Zero:

±0.03%R.O./10°C

Input Resistance:

405±10Ω

Output Resistance:

350±3Ω

Insulation Resistance:

≥5000MΩ

Temperature Compensated:

-10to+40°C

Operating Temperature Range:

-20to+60°C

Recommend Excitation Voltage:

5~12VDC

Maximum Excitation Voltage:

18VDC

Safe Overload:

150%.R.C

Cable:

1.5m(φ5mm)
