Product Characteristics:

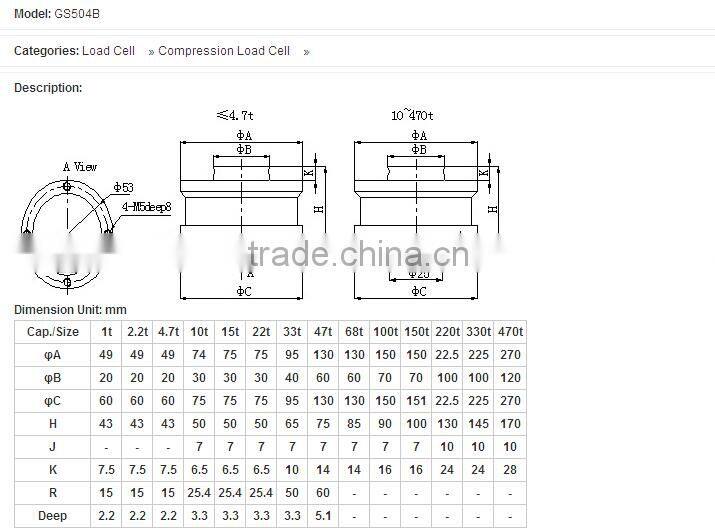

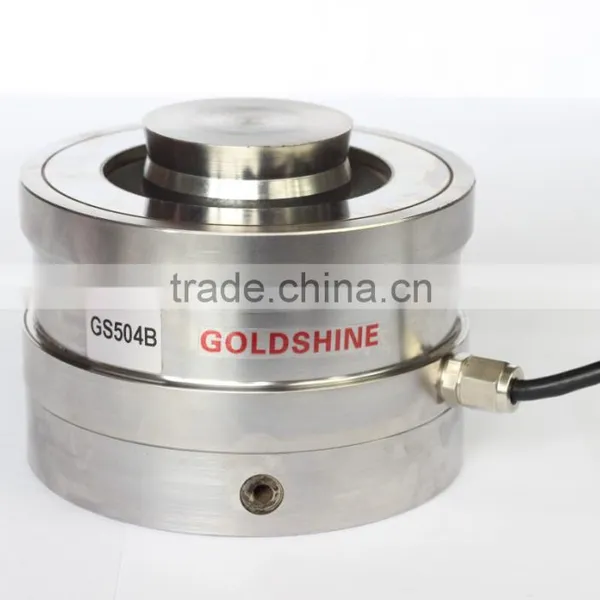

Compression Sensor / high capacity weighing sensor GS504B load cell is a low profile, high performance stainless steel ring torsion type load cell. OIML approved load cells for trade approved applications. We can produce the load cell with analog load cells, digital load cells, wireless load cells, stainless steel load cells, alloy steel load cell, high temperature load cell, anti-lighting load cell. The fully welded construction and ensure that this product can be used successfully in harsh environments found in the food, chemical and allied process industries. The product is suitable for small and medium platform scales, hoppers and process weighing, construction truck weighing scale, weighbridge, weighing systems, tank and hopper weighing, Weighing Scale, weighing equipment, truck weigh scales.
Technical Parameter:
| Rated Load: | 1/2.2/4.7/10/15/22/33/47/68/100/150/220/330/470t |
Sensitivity: | (2.0±0.01%) mV/V |
Combined Error: | ±0.02% F.S |
Creep Error30min: | ±0.02% F.S |
Zero Balance: | ±1% F.S |
Temp. Effect On Zero: | ±0.02% F.S/10 |
Temp. Effect On Span: | ±0.02% F.S/10 |
Input Resistance: | 750±5Ω |
Output Resistance: | 702±2Ω |
Insulation Resistance: | ≥5000MΩ |
Operating Temp. Range: | -30~+70 |
Maximum Safe Over Load: | 150%F.S |
Ultimate Over Load: | 200%F.S |
Recommend Excitation: | 10~12V DC |
Maximum Excitation: | 15V DC |
Sealing Class: | IP67/IP68 |
Element Material: | AAlloy Steel, SSStainless Steel |
Cable: | Length=L:13m |
Citation: | GB/T7551-2008/ OIML R60 |
Mode Of Connection: | Red(Input+),Black(Input-),Green(Output+),White(Output-) |
