Home > Electrical & Electronics > Sensor > Pressure Sensor > Crane Scale Tesion Wireless Load Cell

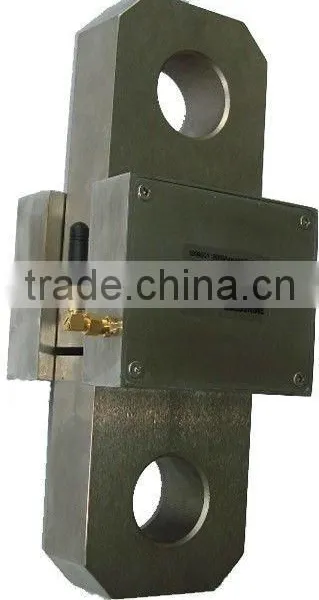

Crane Scale Tesion Wireless Load Cell

Name: Crane Scale Tesion Wireless Load Cell
Brand: GOLDSHINE
SKU: 128765375
Availability: InStock

Crane Scale Tesion Wireless Load Cell thumbnail-1

Crane Scale Tesion Wireless Load Cell thumbnail-2

Crane Scale Tesion Wireless Load Cell photo-1

Crane Scale Tesion Wireless Load Cell photo-2

US$ 40 - 2,000 MOQ: 1 Piece

Key Specifications

Get Latest Price

Place of Origin:

Zhejiang, China

Brand Name:

GOLDSHINE

Model Number:

GS210

Contact Supplier Request Quote Chat Now

Ningbo Goldshine Electronic Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Ningbo or Shanghai

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Zhejiang, China

Brand Name GOLDSHINE

Model Number GS210

Usage Pressure Sensor

Theory Resistance Sensor

Output Other, Analog sensor / Digital sensor

Unit: mm

Cap/Size	H1	H2	H3	E	A	F
1~5t	108	164	406	76	26	200
7.5~10t	120	210	504	110	36	240
25t	131	255	710	127	60	260
35t	147	305	744	127	60	260
50t	170	345	1116	232	92	387

Product Characteristics:

GS210 series is special load cell for crane scale. Element material made of alloy steel or stainless steel according to customer’s requirement. High precision, strong overload protection capacity and anti-deflective loading. The application for the rebuild of crane sinker wheel machine at the port and some simple equipment inspection.

Technical Parameter

Rated Load:	1/2/3/5/7.5/10/25/35/50t
Sensitivity:	(1.5±0.01%) m V/V
Combined Error:	±0.02% F.S
Creep Error(30min):	±0.02% F.S
Zero Balance:	±0.1% F.S
Temp. Effect On Zero:	±0.02% F.S/10°C
Temp. Effect On Span:	±0.02% F.S/10°C
Input Resistance:	385±5Ω
Output Resistance:	351±2Ω
Insulation Resistance:	≥5000MΩ
Operating Temperature Range	-30~+70°C
Maximum Safe Over Load:	150%F.S
Ultimate Over Load:	200%F.S
Recommend Excitation Voltage:	10~12 DC
Maximum Excitation Voltage:	15V DC
Sealing Class:	IP67/IP68
Element Material:	Alloy Steel, Stainless Steel
Cable:	Length=L:1m
Citation:	GB/T7551-2008/ OIML R60
Mode Of Connection:	Red(Input+),Black(Input-),Green(Output+),White(Output-)
