Home > Electrical & Electronics > Sensor > Pressure Sensor > With High Precision Large Capacity BH Tension Load Cell For Hoister or Overload Load Cell GS220

With High Precision Large Capacity BH Tension Load Cell For Hoister or Overload Load Cell GS220

Name: With High Precision Large Capacity BH Tension Load Cell For Hoister or Overload Load Cell GS220
Brand: GOLDSHINE
SKU: 128764531
Availability: InStock

Ningbo Goldshine Electronic Co., Ltd.

With High Precision Large Capacity BH Tension Load Cell For Hoister or Overload Load Cell GS220 thumbnail-1

With High Precision Large Capacity BH Tension Load Cell For Hoister or Overload Load Cell GS220 thumbnail-2

With High Precision Large Capacity BH Tension Load Cell For Hoister or Overload Load Cell GS220 thumbnail-3

With High Precision Large Capacity BH Tension Load Cell For Hoister or Overload Load Cell GS220 photo-1

With High Precision Large Capacity BH Tension Load Cell For Hoister or Overload Load Cell GS220 photo-2

With High Precision Large Capacity BH Tension Load Cell For Hoister or Overload Load Cell GS220 photo-3

US$ 10 - 300 MOQ: 10 Pieces

Key Specifications

Get Latest Price

Place of Origin:

Zhejiang, China

Brand Name:

GOLDSHINE

Model Number:

GS220

Contact Supplier Request Quote Chat Now

Payment & Shipping

Payment Methods:

Port of Shipment:

Ningbo or Shanghai

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Zhejiang, China

Brand Name GOLDSHINE

Model Number GS220

Usage Pressure Sensor

Theory Resistance Sensor

Output Analog Sensor

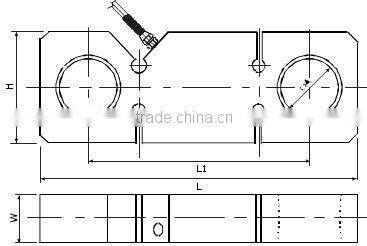

Unit: mm

Cap./Size	H	W	L	L1	A
1~5t	70	30	200	140	38
7.5~10t	90	36	280	180	56
20~30t	125	55	370	230	56
40~60t	150	85	430	254	76
75~120t	240	120	705	475	120

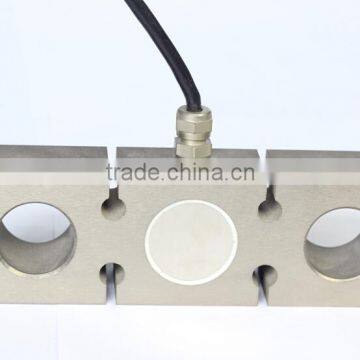

Product Characteristics:

BH series is special load c ell for crane scale. Element material made of alloy

steel or stainless steel according to customers requirement. High precision, strong
overload protection capacity and anti-deflective loading. The application for the
rebuild of crane sinker wheel machine at the port and some simple equipment inspection.

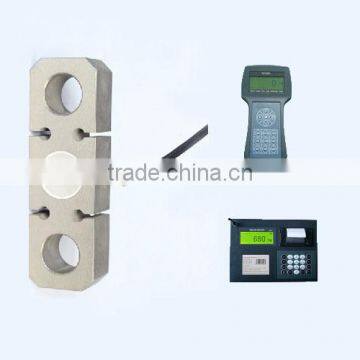

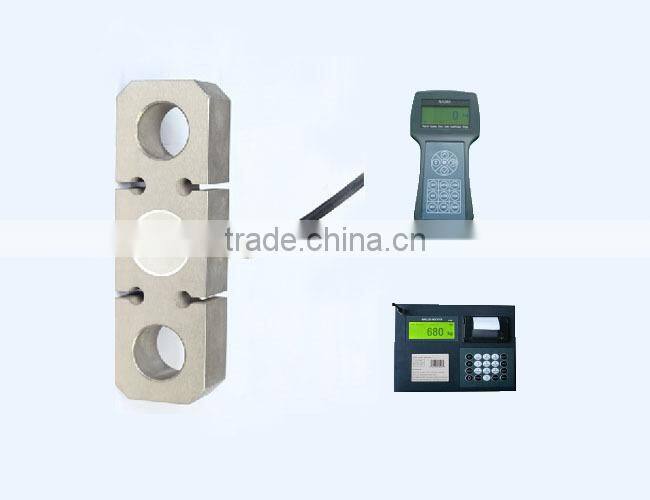

Weighing Indicator for GS220 load cell

Technical Parameter

Rated load	1t,2t,3t,5t,7.5t,10t,20t,30t,40t,50t,60t
Sensitivity	(2.0±0.01%) mV/V
Combined error	±0.02% F.S
Creep Error30min	±0.02% F.S
Zero balance	±1% F.S
TCO:	±0.02% F.S/10^oC
TC Span:	±0.02% F.S/10^oC
Input resistance:	385±5Ω
Output resistance:	351±2Ω
Insulation resistance:	≥5000MΩ
Operating Temp. Range	-30~+70^oC
Maximum safe over load:	150%F.S
Ultimate over load:	200%F.S
Recommend excitation:	10~12V DC
Maximum excitation:	15V DC
Sealing Class:	IP67/IP68
Element material:	A: Alloy Steel, SS: Stainless Steel
Cable:	Length=L:3m(0.1~5t), 5m(7.5~10t)
Citation	GB/T7551-1997/ OIML R60
Mode of Connection	Red(Input+),Black(Input-),Green(Output+),White(Output-)

Pictures for our factory:

Packing :

FAQ:

1. What is the MOQ?

If we don’t have it in stock, the MOQ is 5 pcs

If we have it in stock, we can ship you even 1 pc as sample.

2. What is lead time?

If we have it in stock, we can ship it to you within about 7 working days.

If we don’t have it in stock, the lead time will be 30-45 days.

3. What is the payment terms?

T/T, Western Union, is acceptable.

4. What is the express delivery?

DHL, Fedex, TNT ,EMS, UPS etc.

We will choose the safe and cheapest way for you to reduce your cost.

Economic shipping way: by sea, by air transport

If you place mass order with us, the shipping way of by sea or by air transport will be ideal choice.

5. What is the quality guarantee?

Quality guarantee: 12 months.

If the product has quality problem within 12 months, please return it to us, we will repair it; if we can’t repair it successfully, we will give you a new one; but the man-made damage, improper operation and force majeure will be excepted.

And you will pay the shipping cost of returning to us, we will pay the shipping cost to you.

6. Is there any after-sale service?

After you receive our product, if you have any questions or need any assistance, we can provide you the after-sale service by e-mail,skype,trade manager,telephone

7. How to contact us?

Tel: +86-574-86902686

Skype: emmyliu91

Trade manager: cn1510111149

E-mail: salesone @goldshinechina.com
