With high precision Tension Type Load Cell GS209
- 2500 Piece / Pieces per Month
- Ningbo or Shanghai
- T/T L/C D/P D/A Credit Card PayPal
You May Like
-
With high precision S Type Load Cell GS208
-
Durable Special Crane Scale Load Cell/Manufacturer of Load Cell GS215
-
With high precision Small Capacity Tension Load Cell/Compression Load Cell
-
With high precision S Beam Load Cell For Electronic Scale GS211
-
With high precision Tension Load Cell/Ultrasonic Sensor Measurement Load Cell GS206
-
With high precision Tension Load Cell/Electronic Sensor For Crane Scale GS204
Product Details
| Place of Origin | Zhejiang, China | Brand Name | GOLDSHINE | |
| Model Number | GS209 | Usage | Pressure Sensor | |
| Theory | Resistance Sensor | Output | Analog Sensor |
Product Description

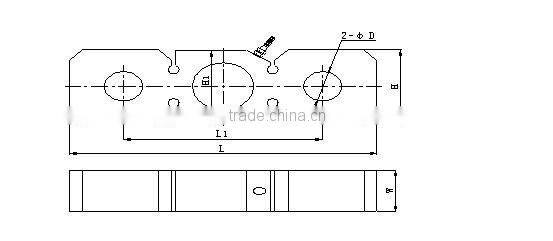

Unit: mm
Cap/Size | L | L1 | H | H1 | W | D |
2t,3t,5t | 227 | 147 | 70 | 68 | 40 | 28 |
10t,15t | 340 | 210 | 100 | 75 | 50 | 38 |
20t,30t | 340 | 210 | 100 | 75 | 50 | 54 |
Features:

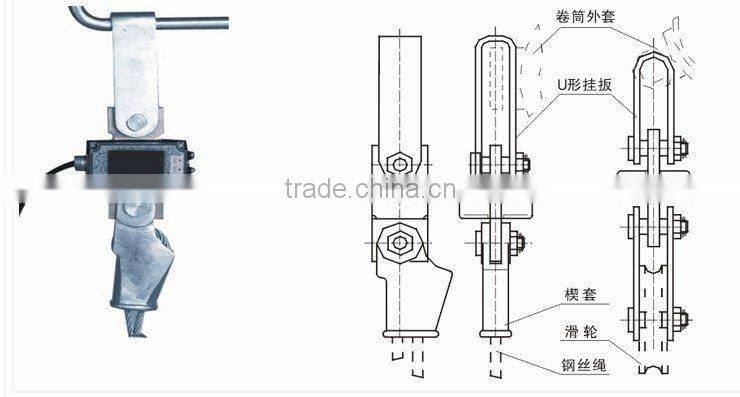

1:Plate-ring load cell are installed in the side by a fixed rope, etc. to measure tension of a load cell, its bottom two holes through the pin, hanging panels, with wire rope connected to form a taut state, to measure the pull rope .
2:Such products are mainly used for electric hoist and load cell not easy installed on the crane.
3:Stainless steel construction, corrosion resistance and anti-rust performance, applicable to a variety of harsh environments.
4:High precision, used for overload protection, while the weight can be accurately measured.
Technical Parameter:
Rated Load | 2/3/5/10/15/20/30t |
Sensitivity | (1.5±0.1%) mV/V |
Combined Error | ±0.05% F.S |
Creep Error(30min) | ±0.03% F.S |
Zero Balance | ±1% F.S |
Temp. Effect On Zero: | ±0.05% F.S/10°C |
Temp. Effect On Span: | ±0.05% F.S/10°C |
Input Resistance: | 385±5Ω |
Output Resistance: | 350±2Ω |
Insulation Resistance: | ≥5000MΩ |
Operating Temperature Range | -30~+70°C |
Maximum Safe Over Load: | 150%F.S |
Ultimate Over Load: | 200%F.S |
Recommend Excitation Voltage: | 10~12V DC |
Maximum Excitation Voltage: | 15V DC |
Sealing Class: | IP67 |
Element Material: | Alloy Steel/ Stainless Steel |
Cable: | Length=L:3m |
Citation | GB/T7551-1997/ OIML R60 |
Mode Of Connection | Red(Input+),Black(Input-),Green(Output+),White(Output-) |
FAQ:
1. What is the MOQ?
If we don’t have it in stock, the MOQ is 5 pcs
If we have it in stock, we can ship you even 1 pc as sample.
2. What is lead time?
If we have it in stock, we can ship it to you within about 7 working days.
If we don’t have it in stock, the lead time will be 30-45 days.
3. What is the payment terms?
T/T, Western Union, is acceptable.
4. What is the express delivery?
DHL, Fedex, TNT ,EMS, UPS etc.
We will choose the safe and cheapest way for you to reduce your cost.
Economic shipping way: by sea, by air transport
If you place mass order with us, the shipping way of by sea or by air transport will be ideal choice.
5. What is the quality guarantee?
Quality guarantee: 12 months.
If the product has quality problem within 12 months, please return it to us, we will repair it; if we can’t repair it successfully, we will give you a new one; but the man-made damage, improper operation and force majeure will be excepted.
And you will pay the shipping cost of returning to us, we will pay the shipping cost to you.
6. Is there any after-sale service?
After you receive our product, if you have any questions or need any assistance, we can provide you the after-sale service by e-mail,skype,trade manager,telephone
7. How to contact us?
Tel: +86-574-86902686
Skype: emmyliu91
Trade manager: cn1510111149
E-mail: salesone @goldshinechina.com
