Specifications
SQB-M Shear beam load cell1.Easy installation.
2.Suitable for floor scale, automobile test facilities, hopper scale and othe
Product Characteristics:

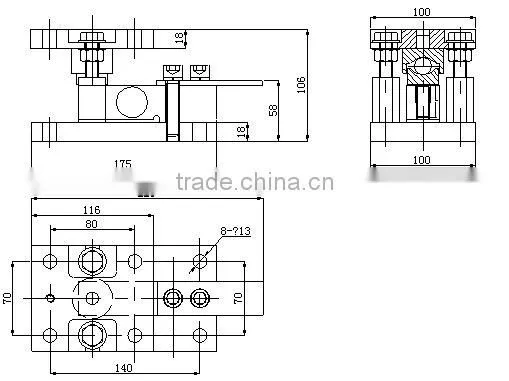

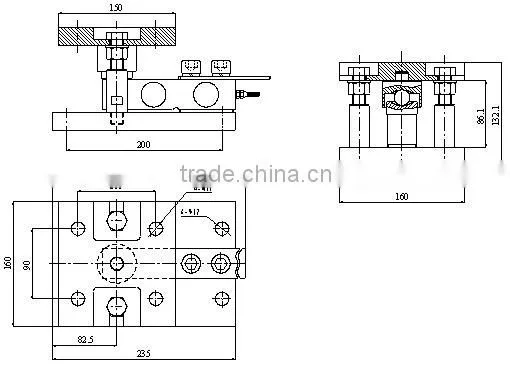

SQB-M series is single shear beam. One end of the load cell is fixed, another loaded and rocker pressure head transfers force. Easy installation and it is suitable for floor scale, automobile test facilities, hopper scale and other electronic weighing devices.
Technical Parameter:
Rated load |
0.1/0.2/0.3/0.5/1/2/3/5t |
Sensitivity |
(2.0±0.1%) mV/V ,(3.0±0.1%) mV/V |
Combined error |
±0.02% F.S |
Creep Error30min |
±0.02% F.S |
Zero balance |
±1% F.S |
TCO: |
±0.02% F.S/10 |
TC Span: |
±0.02% F.S/10 |
Input resistance: |
385±5Ω |
Output resistance: |
352±2Ω |
Insulation resistance: |
≥5000MΩ |
Operating Temperature Range |
-30~+70 |
Maximum safe over load: |
150%F.S |
Ultimate over load: |
250%F.S |
Recommend excitation voltage: |
10~12V DC |
Maximum excitation voltage: |
15V DC |
Sealing Class: |
IP67/IP68 |
Element material: |
Alloy Steel/ Stainless Steel |
Cable: |
Length=L:6m |
Citation |
GB/T7551-1997/ OIML R60 |
Mode of Connection |
Red(Input+),Black(Input-),Green(Output+),White(Output-)-) |
