marine water bag (water weights,lifeboat davit test)
- 1000 Piece / Pieces per Month
- Ningbo
- EPDM Installation Waterproof Gasket EPQ-18-5.2
- Heavy Duty Anchor Zinc Plated Anchor
- Rubber Bladder for ST Low Pressure Accumulator NXQ A-25/31.5-L-EH-S power plant spare parts
- Scraper Board, Non Excavation Accessory Horizontal Directional Drilling Rig Scraper Board, Mub Locking And Wear-resistant
- Horizontal directional drilling rig drill pipe mud blocking block, mud blocking plate
- Horizontal Directional Drilling Rig Drill Pipe Mudguard and Mud Removal Plate
Product Details
Place of Origin: | Zhejiang, China | Brand Name: | GOLDSHINE | Model Number: | GSWB |
Product Description
1.water weighting water filled proof load bag
2.high-efficient test water bag
3.safe practical economical method for test
Our commitment is the provision of products and services to the highest standards.
model | volume( m3) | diameter(m) | length (m) | bag weight(kg) | Component description |
GSWB-1t | 1m3 | 1.3 | 2.4 | 20 | PVC coated HT polyester 1200g/m2basecloth. |
GSWB-2t | 2m3 | 1.6 | 3.1 | 30 | PVC coated HT polyester 1200g/m2basecloth. |
GSWB-5t | 5m3 | 2.3 | 3.6 | 55 | PVC coated HT polyester 1200g/m2basecloth. |
GSWB-10t | 10m3 | 2.8 | 4.8 | 80 | PVC coated HT polyester 1200g/m2basecloth. |
GSWB-20t | 20m3 | 3.6 | 5.4 | 160 | PVC coated HT polyester 1400g/m2basecloth. |
GSWB-25t | 25m3 | 3.8 | 5.8 | 180 | PVC coated HT polyester 1400g/m2basecloth. |
GSWB-30t | 30m3 | 4 | 7 | 200 | PVC coated HT polyester 1400g/m2basecloth. |
GSWB-35t | 35m3 | 4.4 | 7.5 | 250 | PVC coated HT polyester 1400g/m2basecloth. |

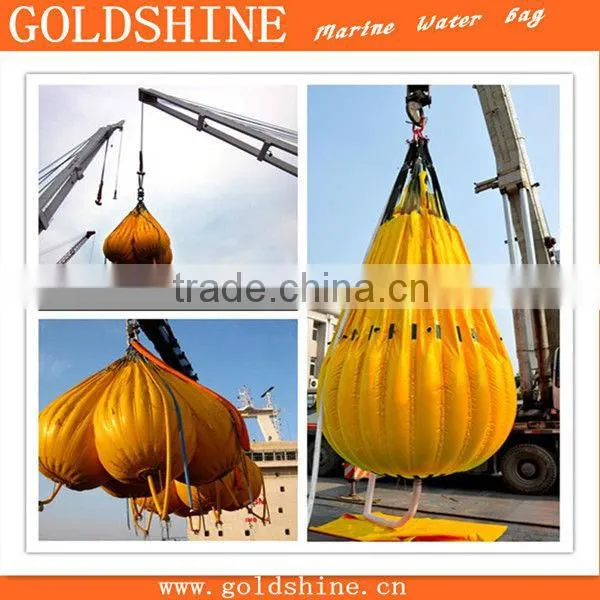

Applications:
Marine
Offshore installations, ship building and repair companies, shipping companies and docks & harbours use Water bag for the followings testing applications:
crane
davits
derricks
winches
inaccessible lifting point deemed impossible by any other method
lifeboats
ramps and lifts
pad eyes
Industrial
Power stations, refineries, factories and crane companies amongst others use Water bags for testing in a wide variety of applications including:
overhead cranes
beams
gantries
elevators
Engineering
Our products and services are used by structural engineers, construction companies, naval architects & engineers and logistics management companies for:
floor and bridge tests
ballast and counterweight
water and liquid storage
tanks and liners
load measurement
Safe
The bags have a physically proven factor of safety in excess of 6:1 and are proof load tested to over 2:1 prior to being taken into service. When performing load tests, gradual application of the load allows many problems to be identified prior to attaining maximum load.
Economical
Water bags weigh less than 2% of achievable load allowing for considerable savings in transport, storage and labour costs.
Flexible
A wide range of different sizes of Water load bags is available. Bags can be hung combinations to achieve large loads, Specialist ‘low headroom’ bags are available for testing where headroom is restricted. With bags weighing only some 2% of achievable load, floor loading restrictions are rarely a problem. Bags are ideally suited to inaccessible lifting points. A variety of add-on options is available to meet specialist requirements such as extended drainage trunks, drain valves and manifold control systems.
Simple
Water load bags are very light, so aiding handling. Bags are fully rigged and ready to hang and fill. Controlled filling and emptying is simple. The load is measured accurately with a certified with CE certificatory JXCS-SW6 Series load cell.

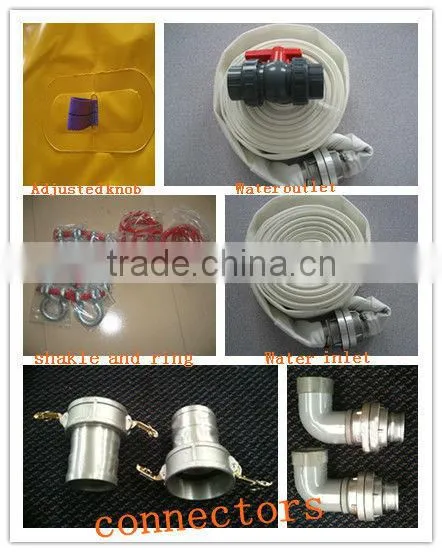

Assembly diagram
Name | Quantity(25T) | Remark |
Water inlet | 2 set | Including 4 pcs hose clamps |
Aluminum water outlet | 1 set | Including 4 pcs hose clamps |
Outlet Φ100mm | 2 m | / |

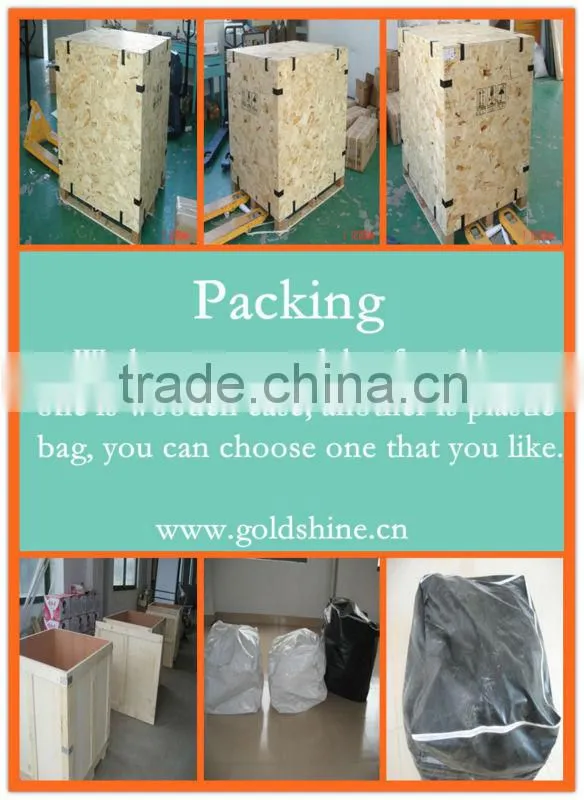

Water bag | 1 set | Wooden case packing |
“O” link | 8 pcs | / |
50mm to 60mm adapter | 2 set | / |
Strips | 8 pcs | / |
shackle | 4 pcs |
|
Inlet hose Φ60mm | 2 roll | 20m/roll |
Ring | 2 pcs | / |
10T bag
Specification | Water bag (Full load) | Water bag (PVC body and harness) | Packing | Fittings | ||
| Dia. (mm) | Height (mm) | Weight (kg) | Diameter size (mm) | Weight (kg) | Weight (kg) |
35ton | 4400 | 7000 | 130 | 1200×850×850 | 80 | 80 |
25t | 3600 | 6000 | 115 | 1100×850×850 | 65 | 80 |
12.5t | 2800 | 5300 | 90 | 850×850×850 | 50 | 50 |
5t | 2200 | 3100 | 55 | 600×600×600 | 40 | 40 |
10T accessories | 25T bag | 25 accessories | 35T bag | 35 T accessories | ||
80kg | 20kg | 180kg | 40kg | 250kg | 40kg |
