Help CenterSeries Shackle Load Pin
Related Products
Features:
•Monitors traction force and other force measurement
•Available in 7 standard ranges between 25 kN and 200 kN
•Alloy steel and Stainless steel construction
•Special execution for harsh environmental conditions (IP66)
•High reliability for strict safety requirements
•Simple installation for cost-saving solutions to measurement problems
Description:
The GOLDSHINE Shackles Load Pin can be used in all applications where a load measuring survey is necessary.
The load pin included on the shackle provides a proportional electrical signal according to the applied load.
The transducer is constructed with high resistance stainless steel and is insensitive to external mechanical, chemical or marine effects making them ideal for use in harsh environmental conditions.
Applications:
The LS03 is designed for hoisting in several applications like cranes winches, lifting, and other marine applications. In combination with a GOLDSHINE portable GM 80 or LMU (Load Monitoring Unit), the LS03 is the most reliable and simplest method to control your load application.
Specifications:
Capacity: | 25/40/50/65/80/120/200kN |
Safety Overload: | 150% of rated load |
Protection Class: | IP66 |
Bridge Impedance: | 350ohm |
Power Supply: | 5-10V |
Combined Error(Non-linearity+Hysteresis): | 1 to 2% |
Operating Temperature: | -25°C to +80°C |
Storage Temperature: | -55°C to +125°C |
Temperature Influence on zero: | ±0.02%K |
Temperature Influence on Sensitivity: | ±0.02%K |

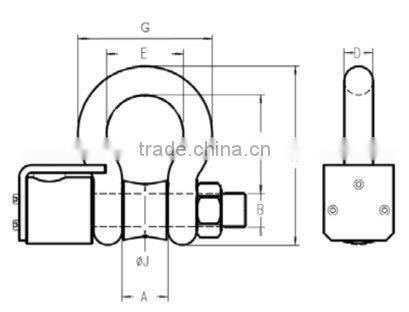

Dimensions:
Dimensions (mm) | |||||||||
Size (inch.) |
| A | ØB | C | D | E | G | H | ØJ |
7/8" | 25 kN | 36 | 25 | 84 | 22 | 58 | 102 | 148 | 35.5 |
1" | 40 kN | 43 | 29 | 95 | 25 | 68 | 119 | 167 | 37 |
11/8" | 50 kN | 46 | 32 | 108 | 29 | 74 | 131 | 190 | 40 |
13/8" | 65 kN | 57 | 38 | 133 | 35 | 92 | 162 | 233 | 50 |
11/2" | 80 kN | 60 | 42 | 146 | 38 | 99 | 175 | 254 | 54 |
13/4" | 120 kN | 73 | 51 | 178 | 45 | 127 | 225 | 313 | 65 |
2" | 200 kN | 83 | 57 | 197 | 51 | 146 | 253 | 348 | 72 |
