Home > Electrical & Electronics > Sensor > Pressure Sensor > Special Load Cell For Crane Scale

Special Load Cell For Crane Scale

Name: Special Load Cell For Crane Scale
Brand: GOLDSHINE
SKU: 128762513
Availability: InStock

Special Load Cell For Crane Scale thumbnail-1

Special Load Cell For Crane Scale photo-1

US$ 230 - 1,580 MOQ: 1 Set

Key Specifications

Get Latest Price

Place of Origin:

Zhejiang, China

Brand Name:

GOLDSHINE

Model Number:

GOLDSHINE

Contact Supplier Request Quote Chat Now

Ningbo Goldshine Electronic Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Ningbo or Shanghai

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Zhejiang, China

Brand Name GOLDSHINE

Model Number GOLDSHINE

Usage Pressure Sensor

Theory Resistance Sensor

Output Digital Sensor

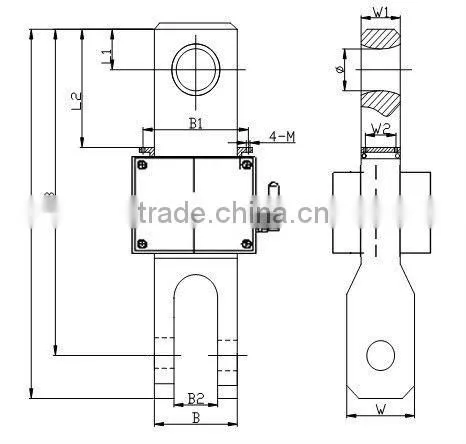

Cap./Size	L	L1	L2	L3	B	B1	B2	M	W	W1	W2	φ
1~5t	228	25	73	216	55	84	29	5	45	26	18	27
7.5~10t	281	32	86	249	60	98	34	6	60	38	23	33
15~20t	331	40	110	300	85	125	50	8	75	55	40	44

Product Characteristics:

GS221W series is special wireless load cell for crane scale. Element material made of alloy steel or stainless steel according to customer’s requirement. High precision, strong overload protection capacity and anti-deflective loading. The load cell with special hook and ring, easy installation.

Circuit Diagram:

Technical Parameter:

Rated Load:	1t/2t/3t/5t/7.5t/10t/20t
Wireless Frequency:	430~485MHz
Wireless Distance:	Min:80m(default)[200m(optional)]
A/D Conversion Rate:	≥50 times/seconds
Battery Life:	≥50 hours
Sensitivity:	(1.5±0.1%) m V/V
Combined Error:	±0.02% F.S
Creep Error(30min):	±0.02% F.S
Zero Balance:	±1% F.S
Temp. Effect On Zero:	±0.02% F.S/10°C
Temp. Effect On Span:	±0.02% F.S/10°C
Input Resistance:	750±5Ω
Output Resistance:	702±2Ω
Insulation Resistance:	≥5000MΩ
Operating Temp. Range	-30~+70°C
Maximum Safe Over Load:	120%F.S
Ultimate Over Load:	200%F.S
Recommend Excitation:	10~12V DC
Maximum Excitation:	15V DC
Sealing Class:	IP67
Element Material:	Alloy Steel, Stainless Steel
Citation:	GB/T7551-2008/ OIML R60

Notice:

Do not use the wireless load cell in explosive and unsafe place. The wireless range will be effective when in different weather, the load cell with the indicator in different place, orientation or obstruct from .For charge :according to Li-ion battery. Do not excess discharge.

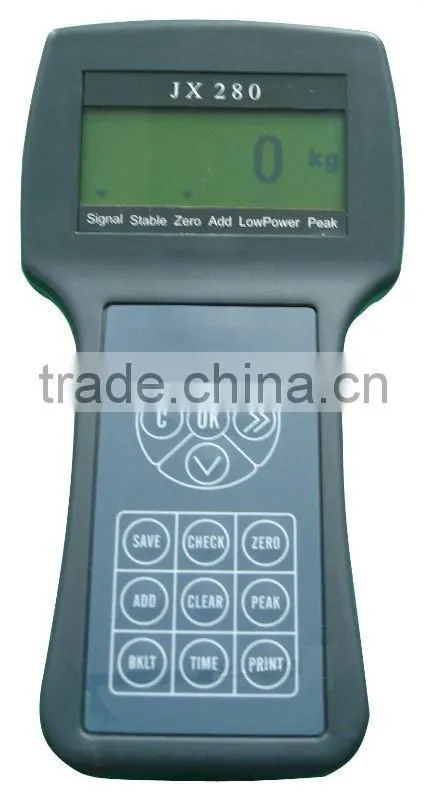

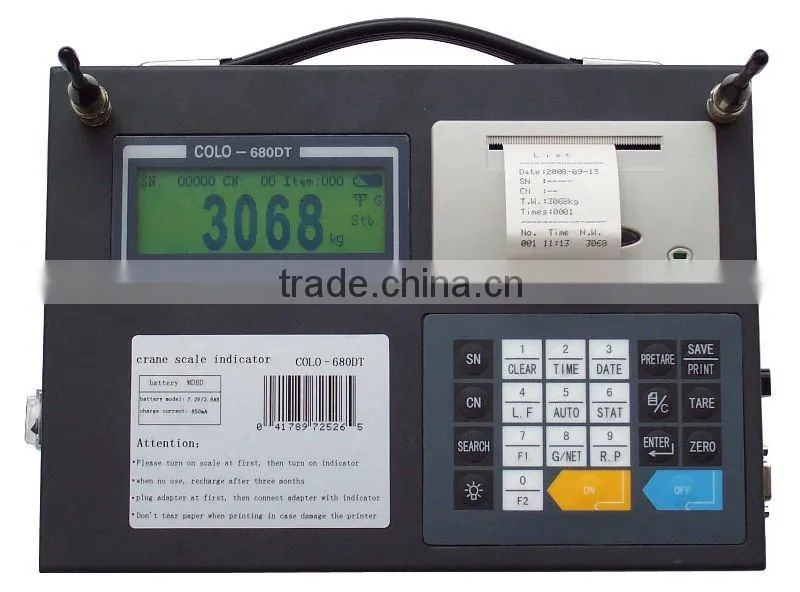

Note: Wireless display JX280, JX680 and wireless scoreboard You can choose according to your requirements as followings:

Wireless Indicator

FAQ:

1. What is the MOQ?

If we don’t have it in stock, the MOQ is 5 pcs

If we have it in stock, we can ship you even 1 pc as sample.

2. What is lead time?

If we have it in stock, we can ship it to you within about 7 working days.

If we don’t have it in stock, the lead time will be 30-45 days.

3. What is the payment terms?

T/T, Western Union, is acceptable.

4. What is the express delivery?

DHL, Fedex, TNT ,EMS, UPS etc.

We will choose the safe and cheapest way for you to reduce your cost.

Economic shipping way: by sea, by air transport

If you place mass order with us, the shipping way of by sea or by air transport will be ideal choice.

5. What is the quality guarantee?

Quality guarantee: 12 months.

If the product has quality problem within 12 months, please return it to us, we will repair it; if we can’t repair it successfully, we will give you a new one; but the man-made damage, improper operation and force majeure will be excepted.

And you will pay the shipping cost of returning to us, we will pay the shipping cost to you.

6. Is there any after-sale service?

After you receive our product, if you have any questions or need any assistance, we can provide you the after-sale service by e-mail,skype,trade manager,telephone
