Help CenterCrane Weighing Scale
Related Products
Description:
Features:

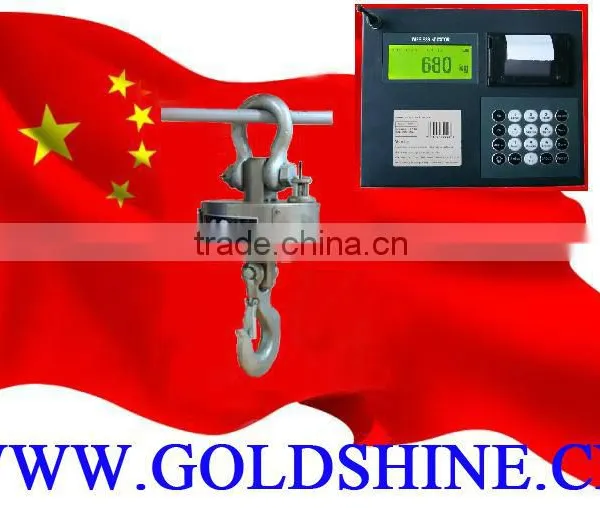

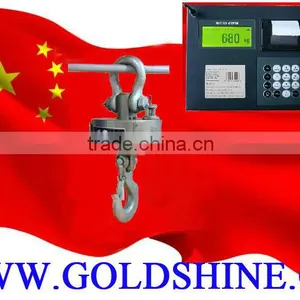

Wireless crane system / wireless crane scale JXCS-SW1 Multi-function operation: TareZeroAuto zero trackingTotalHold; Overload warning and record, operate through remote controller, etc functions. User-friendly design: Steel housing scale body, high-tension shackle and hookWeighing data save protection in case of power offkeyboard calibration, easy to operate Power saving mode, turn off automatically after 1 hour with no operationGathering up to data records of 2000 weighing, records can be sorted, searched and printedMicro-printer in indicatorRS232 optional.
Dimension:
Model |
Division |
Accuracy |
Size (mm) |
||||
A |
B |
C |
L |
φ |
|||
JXCS-SW1-2t |
1 |
III |
70 |
200 |
50 |
620 |
320 |
JXCS-SW1-3t |
1 |
III |
70 |
200 |
50 |
620 |
320 |
JXCS-SW1-5t |
2 |
III |
85 |
200 |
70 |
720 |
320 |
JXCS-SW1-10t |
5 |
III |
106 |
200 |
75 |
940 |
320 |
JXCS-SW1-15t |
5 |
III |
140 |
200 |
90 |
897 |
320 |
JXCS-SW1-20t |
5 |
III |
155 |
220 |
100 |
1050 |
320 |
JXCS-SW1-30t |
10 |
III |
150 |
220 |
120 |
1260 |
320 |
JXCS-SW1-40t |
10 |
III |
214 |
300 |
105 |
1263 |
380 |
JXCS-SW1-50t |
20 |
III |
214 |
300 |
105 |
1263 |
380 |
Technical Parameter:
| Accuracy Class: | OIML III |
Maximum Capacity(T): |
1~50(Optional) |
Division(Kg ): |
1~10(Optional) |
Data Stability Cycle(Second): |
5 |
Material: |
steel alloy/stainless steel |
Power Supply: |
AC180240V49HZ51HZ |
Operating Temperature: |
-30∼80 |
Relative Temperature: |
≤95% |
Display: |
LED backlight |
Transmission Distance: |
100m |
Data Interface: |
RS232 |
Protection Class: |
IP68 |
