Home > Electrical & Electronics > Sensor > Pressure Sensor > With High Precision Install Wireless Telemetry Load Cell Shackles/Can Work With Wireless Weighing Indicator /LS02W

With High Precision Install Wireless Telemetry Load Cell Shackles/Can Work With Wireless Weighing Indicator /LS02W

Name: With High Precision Install Wireless Telemetry Load Cell Shackles/Can Work With Wireless Weighing Indicator /LS02W
Brand: GOLDSHINE
SKU: 128761557
Availability: InStock

With High Precision Install Wireless Telemetry Load Cell Shackles/Can Work With Wireless Weighing Indicator /LS02W thumbnail-1

With High Precision Install Wireless Telemetry Load Cell Shackles/Can Work With Wireless Weighing Indicator /LS02W thumbnail-2

With High Precision Install Wireless Telemetry Load Cell Shackles/Can Work With Wireless Weighing Indicator /LS02W thumbnail-3

With High Precision Install Wireless Telemetry Load Cell Shackles/Can Work With Wireless Weighing Indicator /LS02W thumbnail-4

With High Precision Install Wireless Telemetry Load Cell Shackles/Can Work With Wireless Weighing Indicator /LS02W photo-1

With High Precision Install Wireless Telemetry Load Cell Shackles/Can Work With Wireless Weighing Indicator /LS02W photo-2

With High Precision Install Wireless Telemetry Load Cell Shackles/Can Work With Wireless Weighing Indicator /LS02W photo-3

With High Precision Install Wireless Telemetry Load Cell Shackles/Can Work With Wireless Weighing Indicator /LS02W photo-4

US$ 10 - 1,000 MOQ: 10 Sets

Key Specifications

Get Latest Price

Place of Origin:

Zhejiang, China

Brand Name:

GOLDSHINE

Model Number:

LS02W

Contact Supplier Request Quote Chat Now

Ningbo Goldshine Electronic Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Ningbo or Shanghai

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Zhejiang, China

Brand Name GOLDSHINE

Model Number LS02W

Usage Pressure Sensor

Theory Resistance Sensor

Output Analog Sensor

Capacity:	3/6/10/17/25/35/50/75/100t
Proof Load:	130% Rated Load
Bridge Resistance:	700ohm
Operating Temperature:	-20 to +65°C
Environmental Sealing:	Load Shackle: IP67 Equivalent Display: IP65 Equivalent
Accuracy:	Typically Better Than+/-0.75% of rated Load
Repeatability:	+/-0.1% of rated load
Frequency:	385Mhz
Range:	200 Meter
Channels:	115
Power Supply:	Transmitter: 12 hours between charge 2×AA alkaline batteries- approx 24 hours use
Enclosure Details:	ABS 90×152×34 Deep

Description:

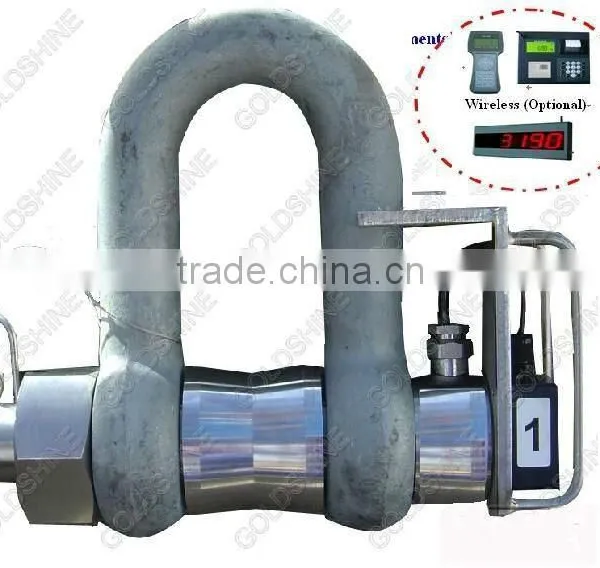

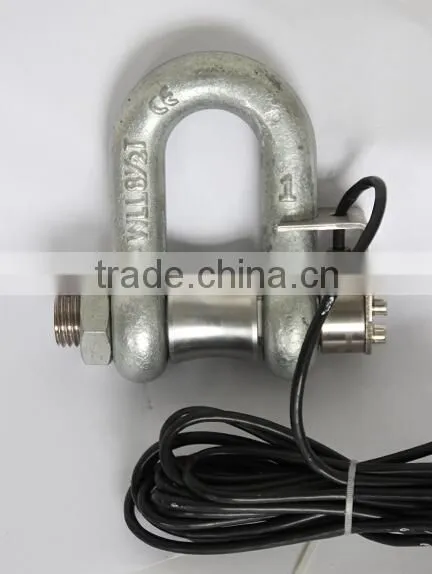

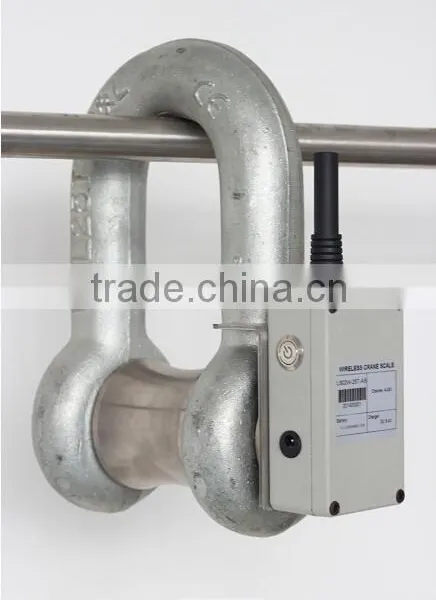

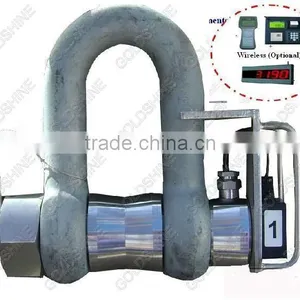

The GOLDSHINE range of telemetry load cell shackles complements our standard cabled version, and are ideal for situations where the use of traditional cable shackles would limit distance or movement, or where for safety reasons, a greater distance is needed between the load and the operator.

In addition to the benefits of increased safety and maneuverability, the telemetry shackle is far more convenient to use, and eliminates the problems associated with long lengths of trailing cable which become easily snagged and are prone to damage.

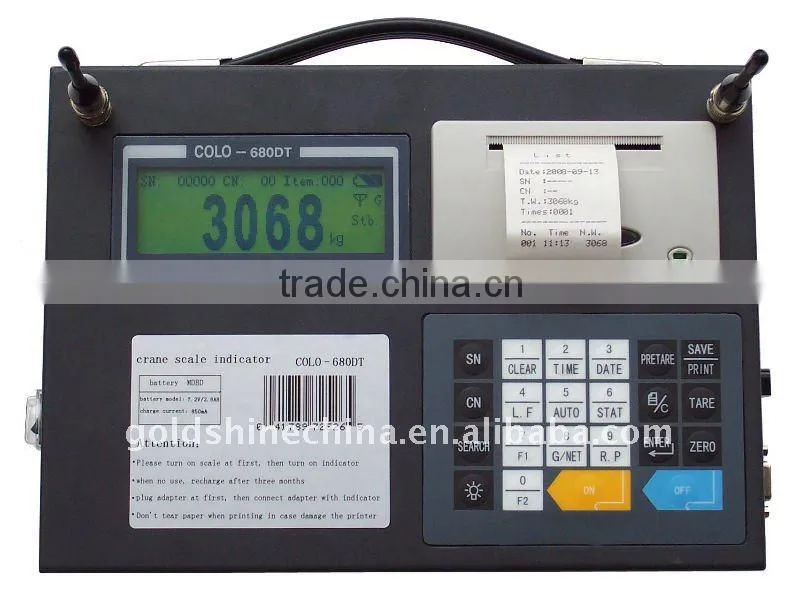

The hand-held display can store up to 20 different transducer parameters which enables one display to accommodate several load shackle signals, and by using a receiver/ data converter that gives RS485 output, the number of monitored transducers can be increased to as many as 32. Battery check, data protection and error detection are also standard features. The shackle load range starts at 3t , with the top load only limited by the availability of shackle forgings, currently around 100t. Normal operating distance is around 300 meters subject to operating conditions.

All shackles come with calibration certificate. Optional carrying cases are available for size up to a 35t rating.

Specification:

150t to 1000t available on request.

Where particular requirements are critical or load cells of a higher specification are required, we would be delighted to assist.

Dimension:

Full Load Ton	Max. Proof Load Ton	Normal Size ‘A’	Inside Length‘B’	Inside Width ‘C’	Bolt Dia. ‘D’	Unit Weight Kg
3	4.2	25	85	43	28	3
6	8	25	85	43	28	3
10	14	32	95	51	35	6
17	23	38	125	60	41	10
25	34	45	150	74	51	15
35	47	50	170	83	57	22
50	67	65	200	105	70	40
75	100	75	230	127	83	60
100	134	89	270	146	95	100
