Dynamometer

Dynamometer thumbnail-1
Dynamometer photo-1
US$ 1 - 200 MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
GOLDSHINE
Model Number:
JXCS-SW6R
Contact Supplier Request Quote Chat Now
Ningbo Goldshine Electronic Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Ningbo
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Zhejiang, China
Brand Name GOLDSHINE
Model Number JXCS-SW6R
Power Electronic
Usage Tensile Testing Machine

Description:

Standard Features:
Rugged construction. Accuracy: 0.05% of capacity. All functions and units are clearly display on the LCD (with backlighting).Digits are 1 inch high for easy distant viewing. Two user programmable Set-Point can be used for safety and warning applications or for limit weighing. Long battery life on 3 standard "LR6(AA)"size alkaline batteries. All commonly used internationally recognized units are available : kilograms(kg), short Tons(t) pounds(lb), Newton and kilonewton(kN).Infrared Remote control easier to calibration(with password). Infrared Remote control with many functions : "ZERO", "TARE", "CLEAR", "PEAK", "ACCUMULATE","HOLD", "Unit Change", "Voltage Check" and "Power OFF".4 local mechanical keys :"ON/OFF", "ZERO", "PEAK" and "Unit Change". low battery warning

Main Technical Data:



Display: 25mm (1'') 5digits LCD
Power On Zero Range: 20% F.S.
Manual Zero Range: 4% F.S.
Tare Range: 20% F.S.
Stable Time: ≤10seconds;
Overload Indication: 100% F.S. + 9e
Max. Safety Load: 125% F.S.
Ultimate Load: 400% F.S.
Battery Life: ≥40 hours
Battery Type: LR6(AA)size alkaline batteries. 1.5V×3
Operating Temp.: - 10oC ~+ 40oC
Operating Humidity: ≤85% RH under 20oC
Remote Controller Distance: Min. 15m
Battery Of Remote Controller: 7AAA battery, 1.5V×2





Specification:



Model Max. Cap.(Kg) Min. Weigh(Kg) Division(Kg) Total Display Counts (N)
JXCS-SW6R-01 1000 10 0.5 2000
JXCS-SW6R-02 2000 20 1 2000
JXCS-SW6R-03 3000 20 1 3000
JXCS-SW6R-05 5000 40 2 3000
JXCS-SW6R-10 10000 100 5 2000
JXCS-SW6R15 15000 100 5 3000
JXCS-SW6R-20 20000 200 10 2000
JXCS-SW6R-30 30000 200 10 3000
JXCS-SW6R-50 50000 400 20 2500
JXCS-SW6R-100 100000 1000 50 2000
JXCS-SW6R-200 200000 2000 100 2000


Weights:





Model(SWR) -01 -02 -03 -05 -10 -20 -30 -50 -100 -200
Unit Weight(kg) 1.6 1.7 2.1 2.7 10.4 17.8 25 39 81 210
Weight with shackles(kg) 3.1 3.2 4.6 6.3 24.8 48.6 87 128 321 776

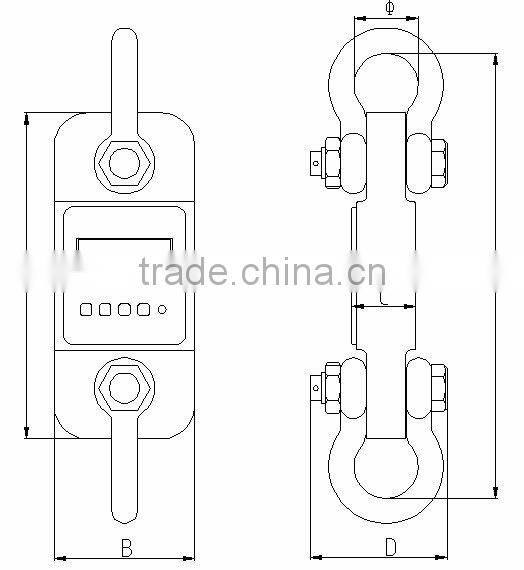

Dimension:dynamometer



DIMENSIONS(Dimensions shown are nominal and subject to tolerances)



Model Cap. Div A B C D φ H Material
(mm)
JXCS-SW6R-01 1t 0.5kg 245 112 37 190 43 335 Aluminum
JXCS-SW6R-02 2t 1kg 245 116 37 190 43 335 Aluminum
JXCS-SW6R-03 3t 1kg 260 123 37 195 51 365 Aluminum
JXCS-SW6R-05 5t 2kg 285 123 57 210 58 405 Aluminum
JXCS-SW6R-10 10t 5kg 320 120 57 230 92 535 Alloy Steel
JXCS-SW6R-20 20t 10kg 420 128 74 260 127 660 Alloy Steel
JXCS-SW6R-30 30 10kg 420 138 82 280 146 740 Alloy Steel
JXCS-SW6R-50 50t 20kg 465 150 104 305 184 930 Alloy Steel
JXCS-SW6R-100 100t 50kg 570 190 132 366 229 1230 Alloy Steel
JXCS-SW6R-200 200t 100kg 725 265 183 440 280 1380 Alloy Steel
