Help CenterElectric Motor Start Capacitor
Related Products
Specifications
1) reasonable price2)A wide selection of ratings
3)Smallest dimensions for general replacements
4)Aluminum or bakelite case

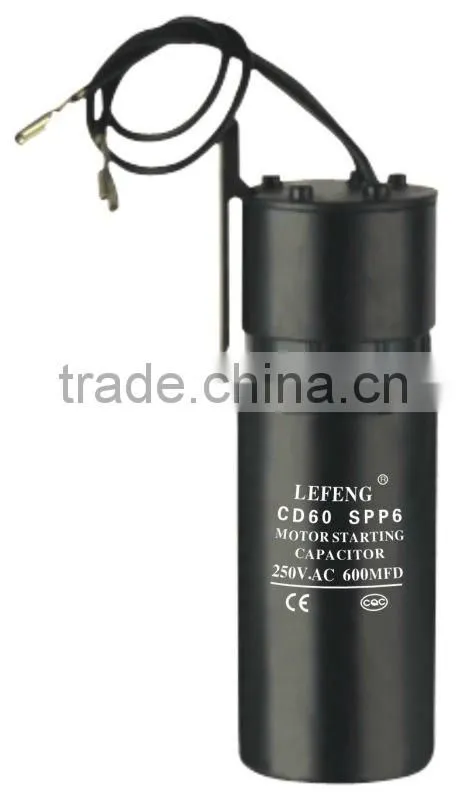

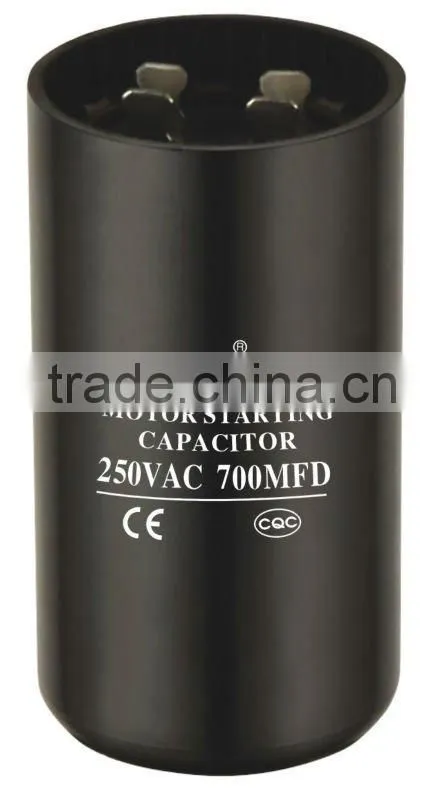

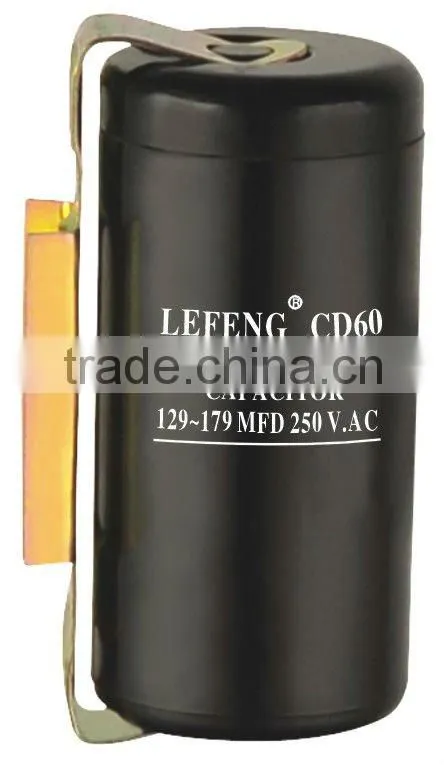

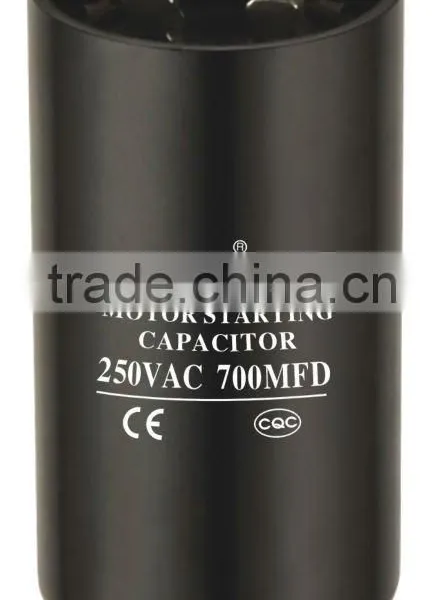

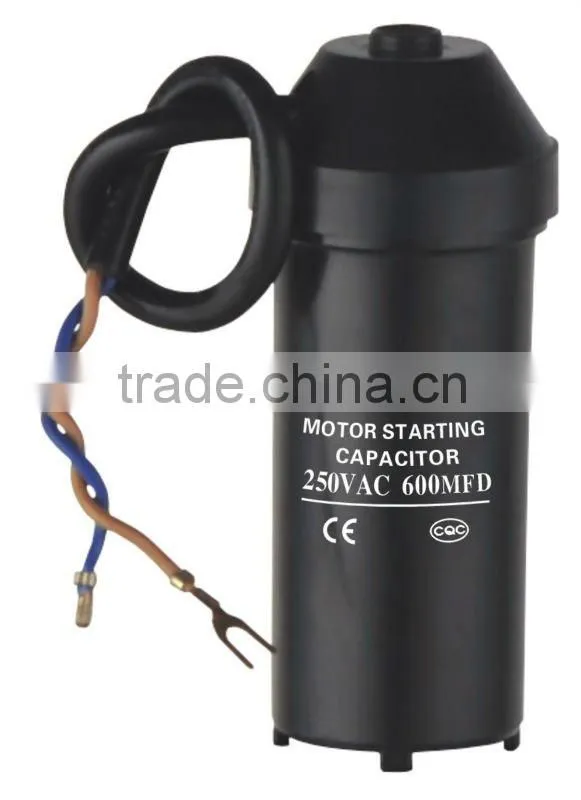

cd60 250vac motor starting capacitor
Type Aluminum electrolytic capacitor for starting AC motor adopts aluminum foils as electrode, alumina as dielectric non-solid electrolyte and adopts metal, Bakelite resin or engineering plastic ,aluminum as cases and lug, wire or cable as terminals. This series of capacitors is bipolarized, and is widely used it applies to AC single phase motor with frequency 50/60Hz.It can help motors gain high torque with low starting current and make motors start normally . It can also apply to refrigerators and compressors of air conditioner and etc for starting
Technique Data of motor run capacitor | |
|
|
Shell: |
bakelite |
Teiminals: |
cable,lug,pin |
Rated Capacitance: |
50-1200uf |
Rated Voltage: |
110v,125v,165v,220v,250v,330v |
Capacitance Tolerance: |
±10% |
Ambient Temperature: |
- 25°C/60°C |
Test Voltage: |
T-T:2.0Un,2S non-breakdown |
T-C:2000VAC,10s non-breakdown | |
Insulation Resistance: |
T-T:Rjc≥3000MΩ:uf |
T-C:Rj≥1000MΩ | |
Loss Tangent |
Tanδ≤0.15(20°C.100Hz) |
