Specifications
ac motor start capacitor1,TUV,CE,CQC,ROHS proved
2.good capacitance stability
3.reasonable price
4.delivery on time

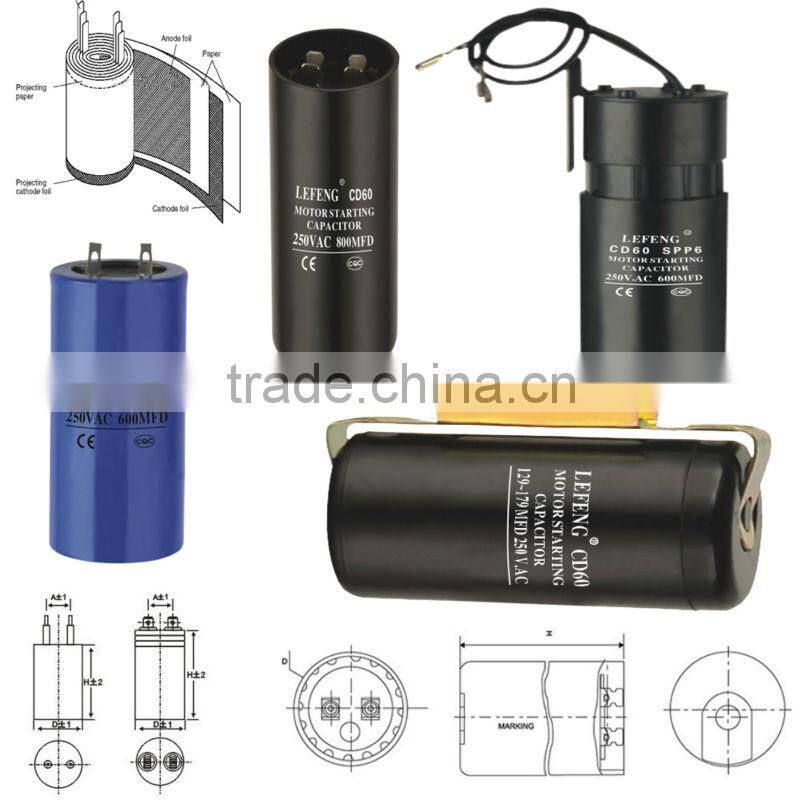

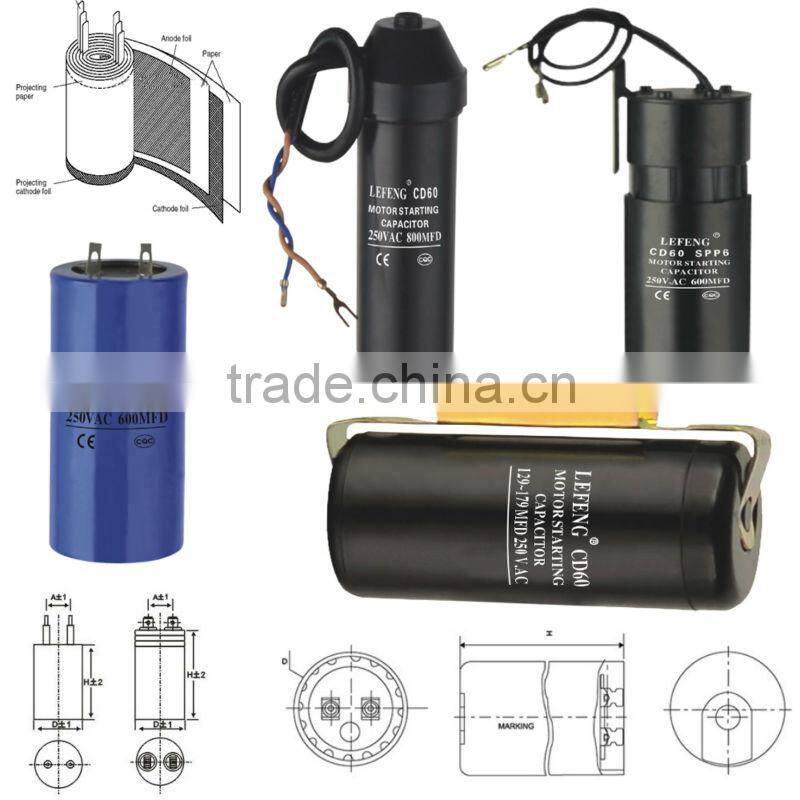

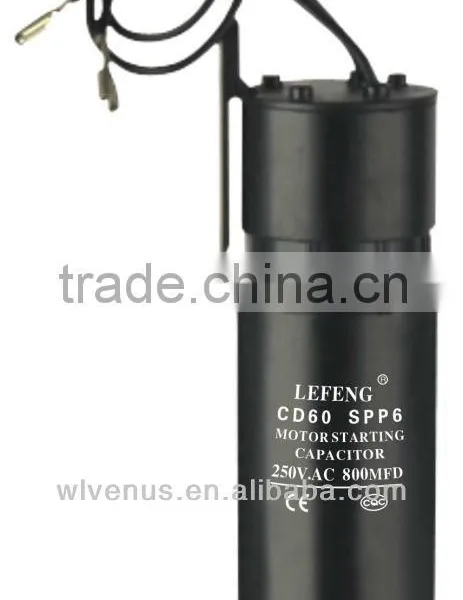

CD60 MOTOR STARTING CAPACITORS SERIES:
Detailed Product Description
1.Used widely in motors,air compressor,water pump etc
2.High performance & Long life Capacitor.
well even in high tem
Main Feature:
1.Bakelite case
2.Voltages from 110V AC to 330V AC
3.TUV ,CE Recognized Capacitors
Applicable Scope :
To start and run single phase m0tors in alternating current usage,
And it suit for single phase A.C. motors with frequency of 50/60Hz.
General Specifications:
Operating Temperature:-25~+65°C
Voltage Range:110~330V AC
Capacitance Range:21~1280μf
Capacitance Tolerance:+/-20%
Operate Frequency:50/60Hz
Product Description
CD60 start capacitor is developed and researched according to standard of American
Electronics Association (ANSI/EIA-463).The external case of the capacitor is made of
bakelite plasticized which Character is not only good insulating resistance. Strong resistance damaged but also protecting electro liquid as good sealed feature. It is popular
used for the super AC application as good life, higher degree of reliability and stability.
Case size of Standard Products (mm)
|
Rated Voltage
Capacitance Range |
110-125V |
165V |
220-250V |
330V |
D X H | ||||
21-25 |
36.5 x69.85 |
36.5 x69.85 |
36.5 x69.85 |
36.5 x69.85 |
25-30 |
36.5 x69.85 |
36.5 x69.85 |
36.5 x69.85 |
36.5 x69.85 |
30-36 |
36.5 x69.85 |
36.5 x69.85 |
36.5 x69.85 |
36.5 x69.85 |
43-53 |
36.5 x69.85 |
36.5 x69.85 |
36.5 x69.85 |
46.02 x85.72 |
53-64 |
36.5 x69.85 |
36.5 x69.85 |
36.5 x69.85 |
46.02 x85.72 |
67-77 |
36.5 x69.85 |
36.5 x69.85 |
36.5 x69.85 |
46.02 x85.72 |
88-108 |
36.5 x69.85 |
36.5 x69.85 |
46.02 x85.72 |
46.02 x85.72 |
124-149 |
36.5 x69.85 |
36.5 x69.85 |
46.02 x85.72 |
52.37 x111.12 |
161-193 |
36.5 x69.85 |
36.5 x85.72 |
52.37 x85.72 |
52.37 x111.12 |
200-240 |
36.5 x69.85 |
46.02 x85.72 |
52.37 x85.72 |
52.37 x111.12 |
*Special requirement can be fulfilled at the request Of Customers
