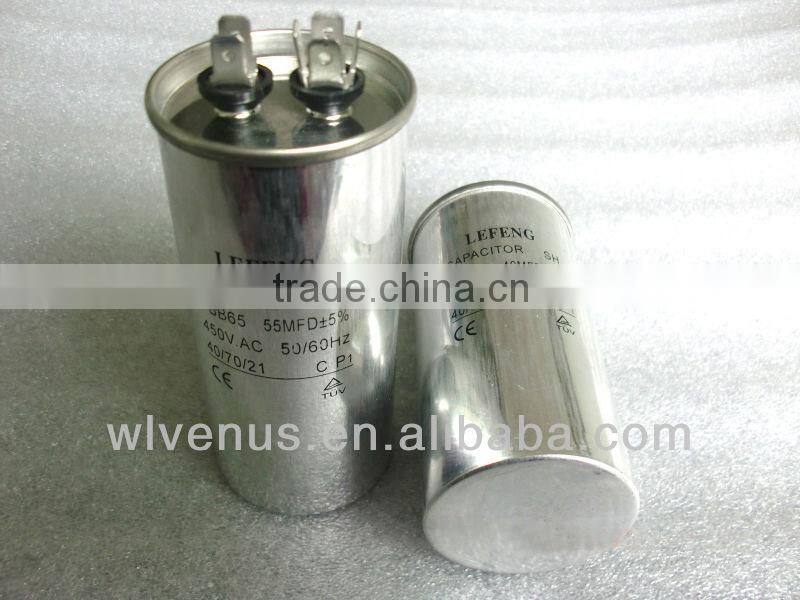

Help CenterAluminum Case Round Cbb65 Type Air Conditioner Running Capacitor
Related Products
-
Aluminum Case Round ac Motor Capacitor of Cbb65 35uf 450vUS$ 0.002 - 0.009MOQ: 1000 Pieces -
Aluminum Case Round Cbb65 30uf 440vac CapacitorUS$ 0.002 - 0.009MOQ: 1000 Pieces
-
Aluminum Case Round Cbb65 Type Capacitor WuxiUS$ 0.002 - 0.009MOQ: 1000 Pieces
-
Aluminum Case Round Cbb65 Type Capacitor 60uf 250vacUS$ 0.002 - 0.009MOQ: 1000 Pieces
-
Aluminum Case Round Cbb65 Type Lmg CapacitorUS$ 0.002 - 0.009MOQ: 1000 Pieces
Specifications
air conditioner running capacitor1,TUV,CE,CQC,ROHS proved
2.good capacitance stability
3.reasonable price
CBB65 POLYPROPYLENE CAPACITORS SERIES:
Detailed Product Description
1.Used widely in motors,air conditioner ,water pump etc
2.High performance & Long life Capacitor.
well even in hot area
Applications:
Used widely in washing machine, water pumps, air conditioner and as well household electric appliances etc. to start and run single phase motors in alternating current usage.
Techinnical Parameters:
Capacitance range |
1-150μf |
Rated voltage Un |
250/370/400/450V.ac |
Rated frequency |
50Hz;60Hz |
Capacitance tolerance |
±5%;±10% |
Climatic category |
-25/+70/21 -40+85°C |
Dissipation factor(at 50Hz-Hz and 20°C) |
≤0.002(100Hz,20°C) |
Test voltage between terminals |
2×Un for 3s |
Test voltage between terminals and case |
2×Un+1000VDC FOR 2s |
Certification |
TUV CE CQC |
Safety Cass |
P1 |
Capacitance range:2MFD-100MFD,10+5MFD-90+7.5MFD
Aluminum Case Dimension(mm):D: Φ40-Φ60,H:60-150
#Special requirement can be fulfilled at the request Of Customers
