Specifications

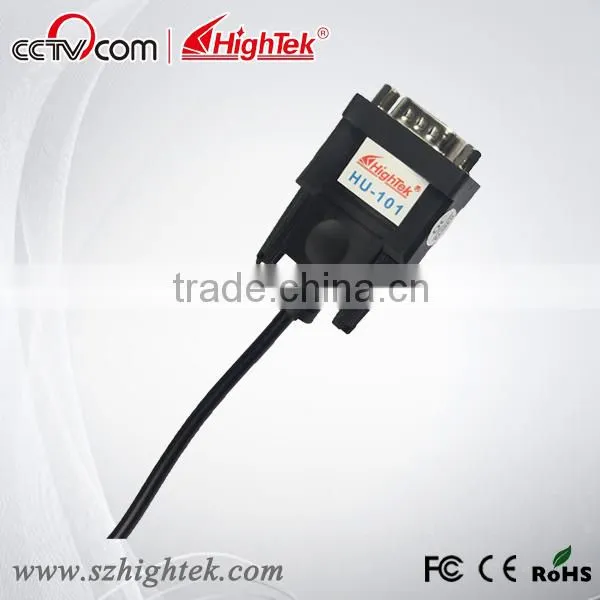

pl2303 usb2.0 to rs232 db9 serial cableTaiwan chip PL2303
Economical type
pl2303 usb2.0 to rs232 db9 serial cable features:
1. Completely compatible with USB (UniversalSerial Bus) Rev. 1.1;
2. Supports RS-232 interface;
3. Standard DB9 serial ports;
4. Supports automatic hand-shaking protocol;
5. Supports remote wake-up and power supply management;
6. Direct USB power without external power supply.
7. Communication from single-chip (ASIC) USB to serial port interface;
8. Supports Windows98/2000/XP/Vista.
Connectors and signal
1,RS-232C pin assignment
| DB9 M(PIN) | RS-232C |
| 1 | |
| 2 | SIN(RXD) |
| 3 | SOUT(TXD) |
| 4 | DTR |
| 5 | GND |
| 6 | DSR |
| 7 | RTS |
| 8 | CTS |
| 9 | RI |
2,USB-A type: USB signal input and Pin Assignment
Q1: Can you provide OEM service?
Yes, we work on OEM orders.which means design, packing solution,etc will depend on your requests; and your logo will be customized on our products.
Q2: What information should i let you know if i want to get a quotation?
1.Which products are your need?
2.package
3.Quiantitles
Q3: WHY US?
1.The only recommended brand of interface converter by CCTV;
2.Established in 2000, there are 8 branch companies all over China;
3.More than 20 years’ manufacturing in communication filed and more than 15-year customization experience;
4.With professional management, R&D, manufacturing, QC and service team, we are always ready to provide perfect products and service for you;
5.Always the selection of Telefonaktiebolaget LM Ericsson, Huawei, Wachovia Corporation, Foxconn, Motorola, OKI, CNPC, Sinopec and China Mobile since the first cooperation between us.
Welcome to contact us!
