manufacturer of RS232 to RS485 serial communication adapterwith optical isolation
with 600W lightning protection
adam modul
manufacturer of RS232 to RS485 serial communication adapter rs232/422/485 details:

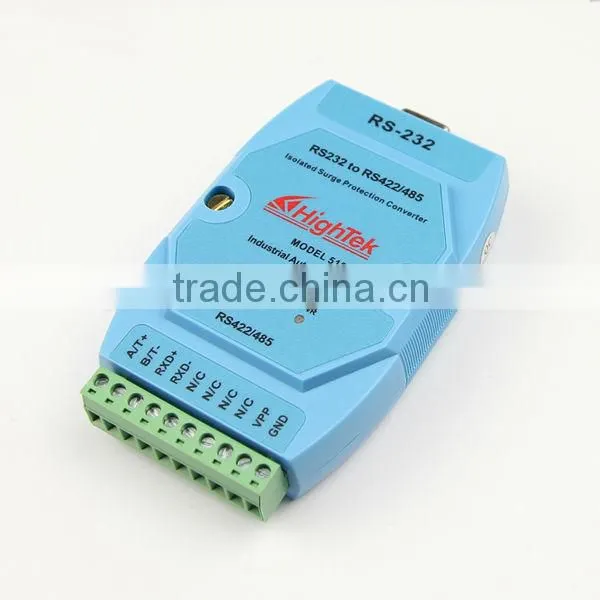

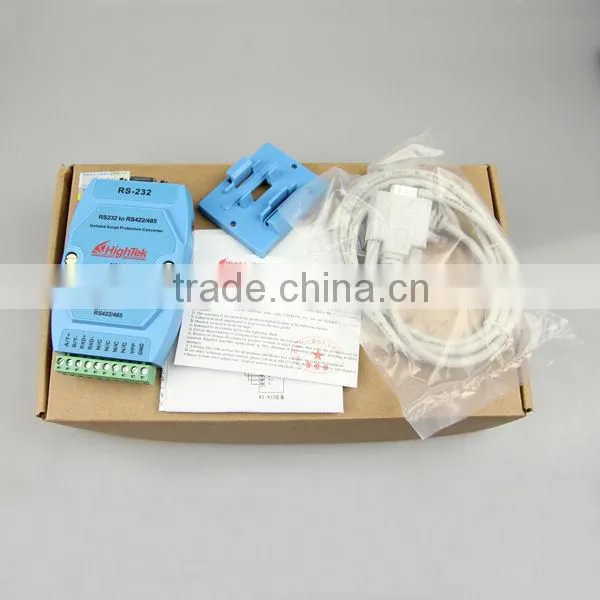

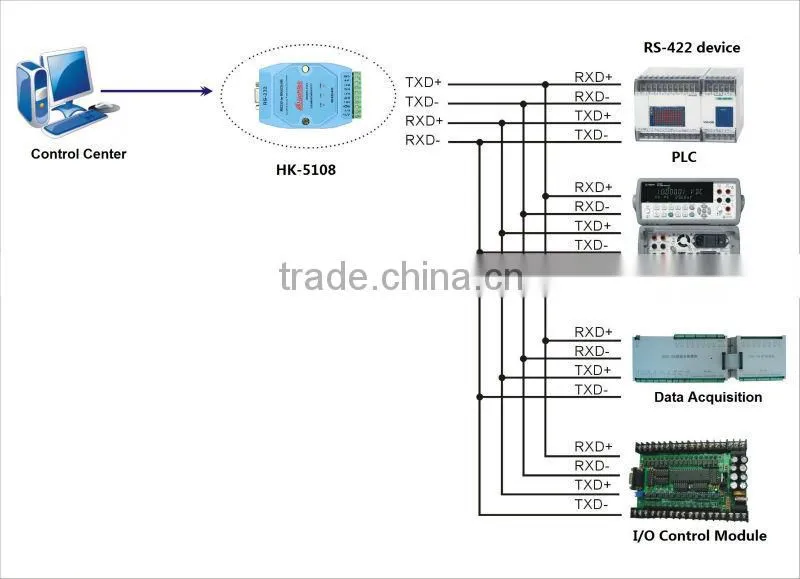

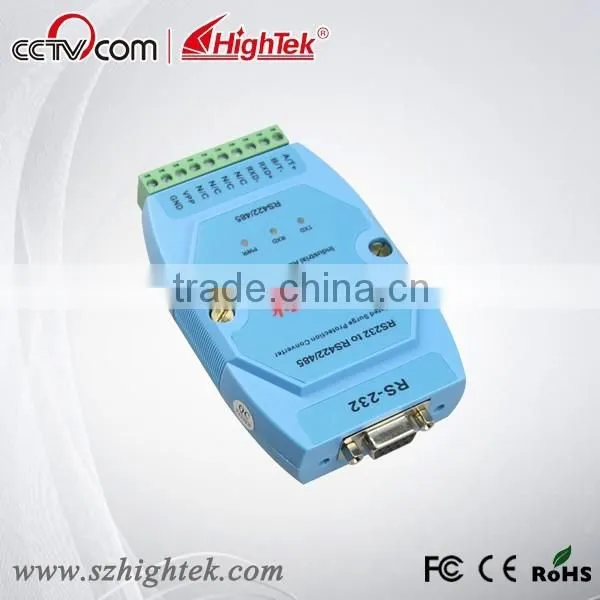

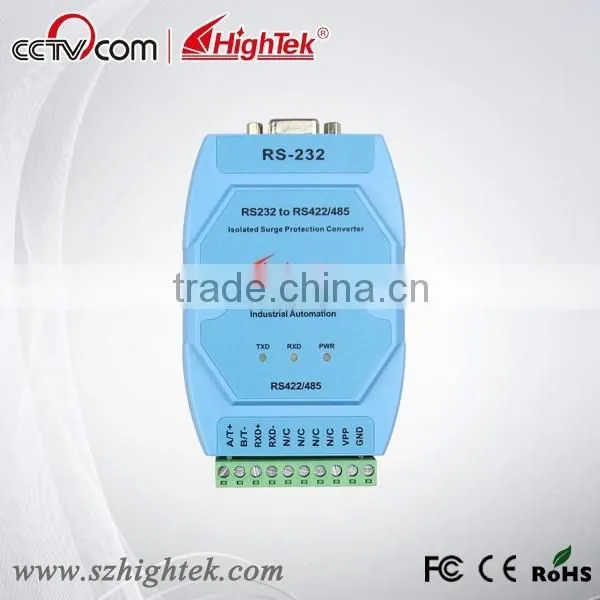

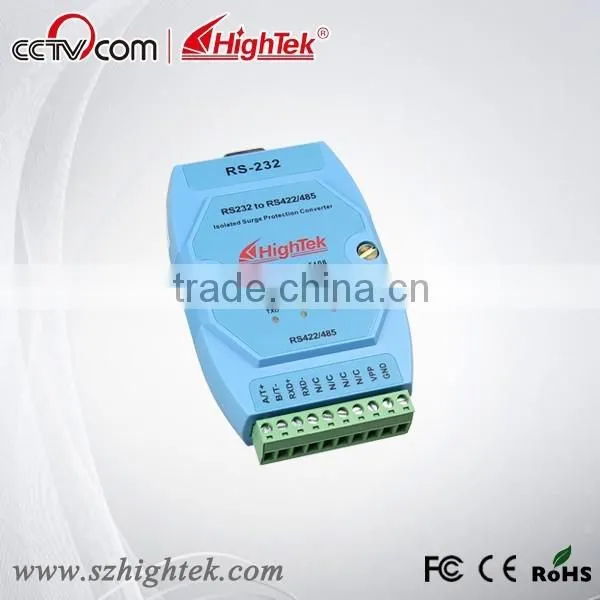

HK-5108 Industrial Photoelectric Isolation Interface Converter for point to point , multipoint communication to provide reliable connectivity , multipoint each converter allows to connect 128 RS-422 or RS-485 interface devices , the data communication speed 300-115.2KBPS, with a power indicator and data traffic lights to indicate fault conditions , support of communication with RS-232 to RS-422, RS-232 to RS-485 converter
Performance parameters
1. The interface features: Compatible with EIA / TIA of RS-232, RS-485/RS-422 standard
2. The electrical interfaces: RS-232 interface input DB9 female connector, RS-422/RS-485 Interface ten terminals as an output
3. Protection class: RS-232 Interface +/-15KVESD protection, RS-422, RS-485 interface to 600W per line surge protection
4. Isolation: Isolation Voltage 2500Vrms 500DC continuous
5. The working mode: asynchronous half or full duplex
6. The signal indication: three signal lights Power (PWR), transmit (TXD), Receive (RXD)
7. The transmission media: twisted pair or shielded cable
8. The transmission rate: 115.2K BPS to 300M, 28.4K BPS to 2.4KM
9600 BPS to 5KM
9. Dimensions: 120mmX72mmX22mm
10. Use of the environment: -40 degree C to 85 degree C, relative humidity 5 % to 95%
11. The transmission distance: (0-5000 m) (115200bps-9600bps)
Connectors and signal
RS-232C pin assignment
|
DB9
|
RS-232C |
1 |
DCD |
2 |
SIN (RXD) |
3 |
SOUT (TXD) |
4 |
DTR |
5 |
GND |
6 |
DSR |
7 |
RTS |
8 |
CTS |
9 |
RI |
RS-485/RS-422 Output signal and the terminal pin assignment
|
Output Signal |
RS-422 |
RS-485 Half-Duplex |
1 |
T/R+ |
A+ |
RS-485 (A+) |
2 |
T/R- |
B- |
RS-485 (B-) |
3 |
RXD+ |
A+ |
Empty |
4 |
RXD- |
B- |
Empty |
5 |
N/A |
Empty |
Empty |
6 |
N/A |
Empty |
Empty |
7 |
N/A |
Empty |
Empty |
8 |
N/A |
Empty |
Empty |
9 |
VPP |
10-30VDC |
|
10 |
GND |
|
|
