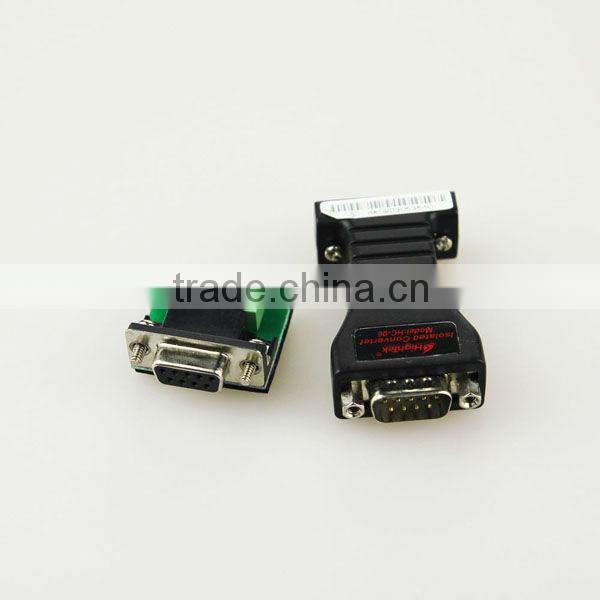

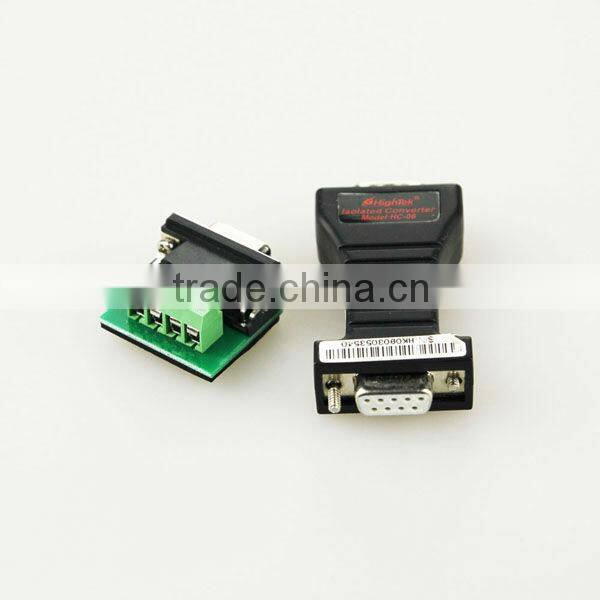

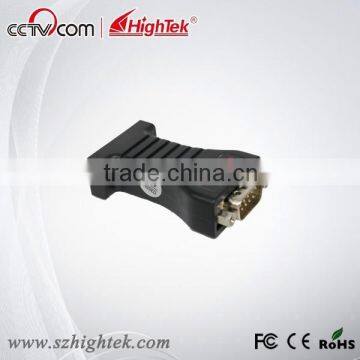

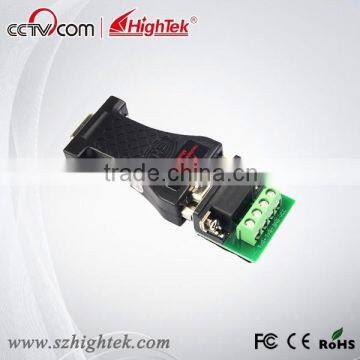

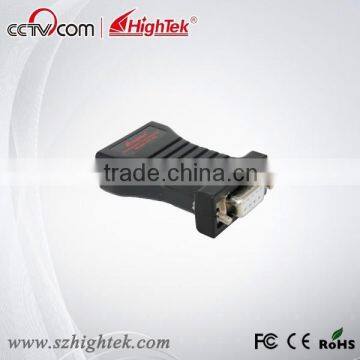

Customized rs232 male to rs485 female adapterPhotoelectric Isolation
600W lightning protection
rs232 to rs485
CE/RoHS/FCC
Customized rs232 male to rs485 female adapter details:
1. Interface characteristic: standards of RS-232C and RS-485 issued by EIA/TIA.
2. Electric interface: DB9 female connector for RS-232 interface input end, DB9 male connector for RS-485 interface output end.
3. Protection grade: ±15KV ESD protection for RS-232 interface and 600W surge protection each line for RS-485 interfaces.
4. Isolation degree: isolation voltage 2500Vrms 500DC non-stop.
5. Operation mode: asynchronous half duplex or asynchronous full duplex.
6. Signal indication: 3 pilot lamps for Power (PWR), Send (TXD)and Receive (RXD).
7. Transmission media: twisted pair cable or shielded cable.
8. Transmission rate: 115.2K BPS to 300M, 38.4K BPS to 600M and 9,600 BPS to 1.2KM.
9. Dimensions: 63mm×33mm×17mm.
10. Working circumstance: -25°Cto 70°C, relative humidity 5%-95%.
11. Transmission distance: 0-1,200meters (115,200bps-9,600bps).
Connector and signal
RS-232C pin distribution
DB9 Female (PIN) |
RS-232C Interface Signal |
1 |
Protective |
2 |
TXDSOUT |
3 |
RXDSIN |
4 |
DTR |
5 |
GND |
6 |
DSR |
7 |
RTS |
8 |
CTS |
9 |
RI |

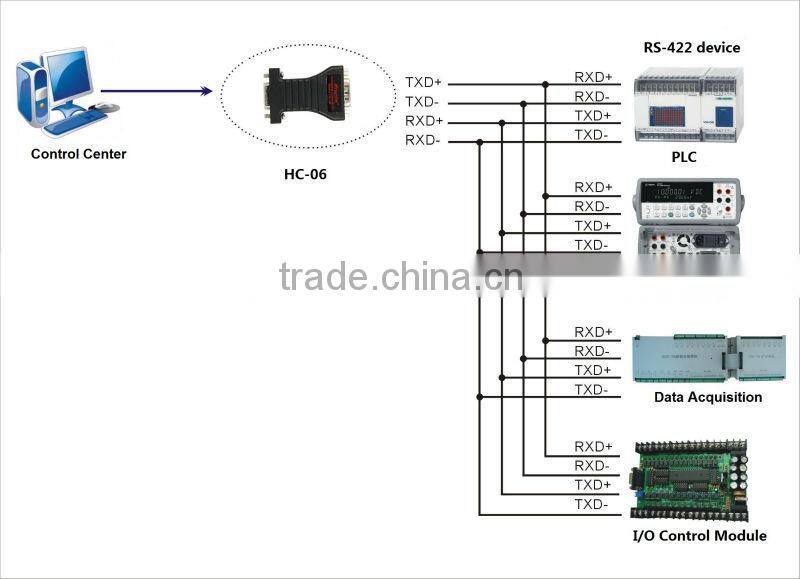

RS-485 data output & connector and pin distribution
DB9 Male (PIN) |
Data Output |
RS-485 Half-Duplex |
1 |
T/R+ |
RS-485(A+) |
2 |
T/R- |
RS-485(B-) |
3 |
N/C |
N/C |
4 |
N/C |
N/C |
5 |
GND |
Ground Wire |
6 |
VCC |
+5V Standby Power Input |
