Specifications

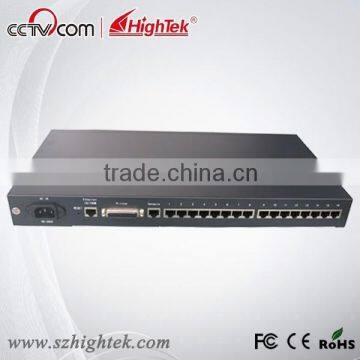

tcpip ethernet to 16-port multiport RS232 serial convertersIndustrial grade
Standard rack-mounted
16 ports rs232
tcpip ethernet to 16-port multiport RS232 serial converters details:

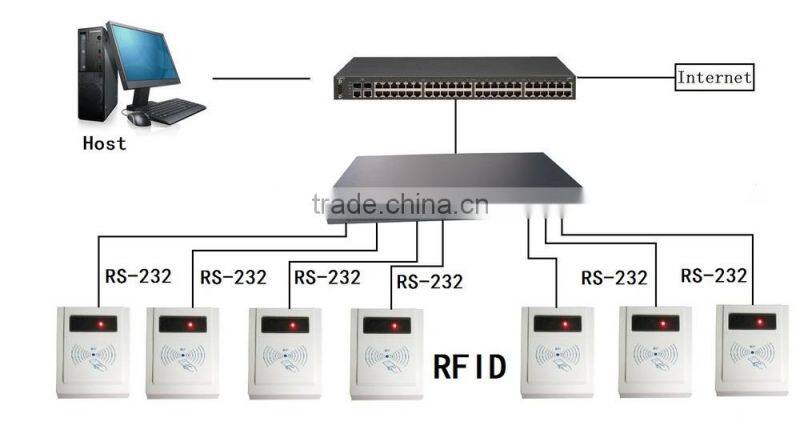

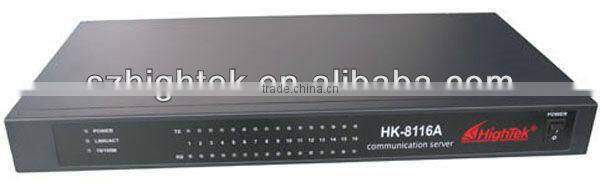

Serial device server HK-8116A is a converter between Asynchronous serial port(RS-232)and Ethernet RJ45 port, as well as a independent intelligent device with CPU, built-in OS, and complete TCP / IP protocol stack. It completed the conversion between RS-232format data and Ethernet IP data, and thus to add network savvy to traditional serial device.
Features:
1.16-port rs232 serial db9 pin port to 1-port ethernet RJ45 port;
2. CPU:32 bit Hyperstone MCU(German chip); 1U 19" standard rack-mounted;
3. Provide a wealth of operating modes to let serial device networking immediately;
4. Supports Real Com / TTY driver, completely compatible with original software system;
5. TCP Server, TCP Client and UDP Universal transparent mode;
6. Supports serial servers directly connecting mode and the reverse terminal mode;
7. Supports manage and configurate by Web browser or Telnet terminal;
8. 10/100M adaptive Ethernet interface;
9. Built-in 15KV ESD surge protection;
10. Maximum serial communication rate up to 460.8Kbps.
11. RJ45/25 Stylus, RS232 male connector plug,DTE style
12. Support for multiple hosts to share with equipment
13. Drive the COM port under the Windows 7/NT/2000/XP platform
14. Fixed TTY Driver under the SCO Unix platform
15. Fixed TTY Driver under the SCO Unix platform
16. PPP dial-up connection authentication (PAP/CHAP/RADIUS)
17. Simple-to-use management program under the Windows platform
18. Provide security mechanisms of network access (IP / MAC)
19. Offer all the C source code to visit IP under the Socket platform to visit IP and use IP serial ports under any OS supporting TCP/IP
Specifications:
CPU: 32 bit 100MHz
Memory:8 MB
Ethernet speed:10/100 Mbps, self setting,and support manually operation.
Communication mode:10M-semiduplex and 10-full duplex, 100M-semiduplex and 100M-full duplex
Interface protection:15KV electromagnetic isolation
Serial port: 16 RS-232
Ports connection type: Ethernet port:RJ45;
RS232 port:RJ45 (single serial ports are DB9 pin)
Signal: RS232: TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND
The data bit of the communication parameter in the serial ports: 5, 6, 7, 8
Examination: None, Even, Odd, Space, Mark
Stop bit: 1, 1.5, 2
Flow control: RTS/CTS, XON/XOFF
Speed: 300 bps to 460800 bps
Protocol: DHCP, Telnet, TCP, UDP, IP, ICMP, ARP
Real Com Driver:Windows NT/2000/XP/7,
TTY Driver:SCO UNIX, Linux
Configuration: by the serialization of CONSOLE port in RS-232, Telnet
Indicator light: Power Indicator in serial ports (Power), Link Ethernet/transmit-receive light (Link/ Act), indicator light for the speed of Ethernet (100/10), receive (Rx), transmit (Tx)
Work Mode: Drive mode under Windows, log-in mode, Socket Mode,Serial ports-PPP Mode, LPD print mode
Software support: Configuration systems under the Windows NT/2000/XP/7/8 platform and COM Port Driver
Configuration under the SCO Unix/LUNIX platform and tty Driver
Explore C source program under the TCP/IP cross-platform
Power Input: 110~230V AC,9~48V DC
Operating Temperature: -10 to 70 °C
Operating Humidity: 5 to 95%
Store Temperature: -40 to 80 °C
Pin Define:
