Technical parameters <<<

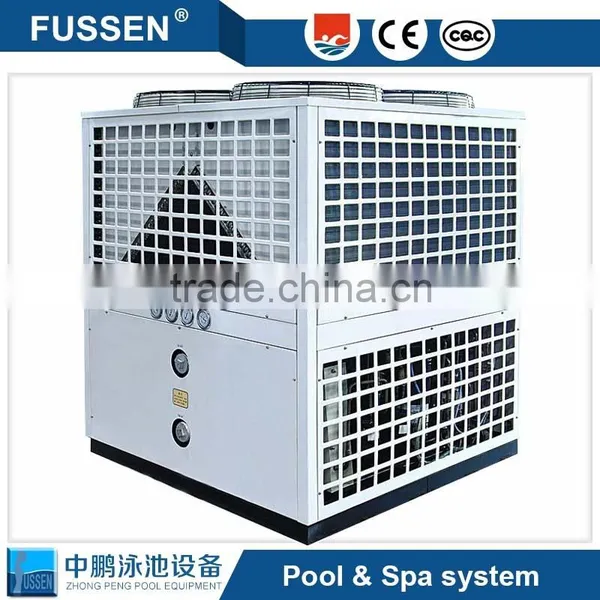

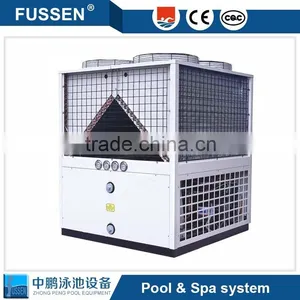

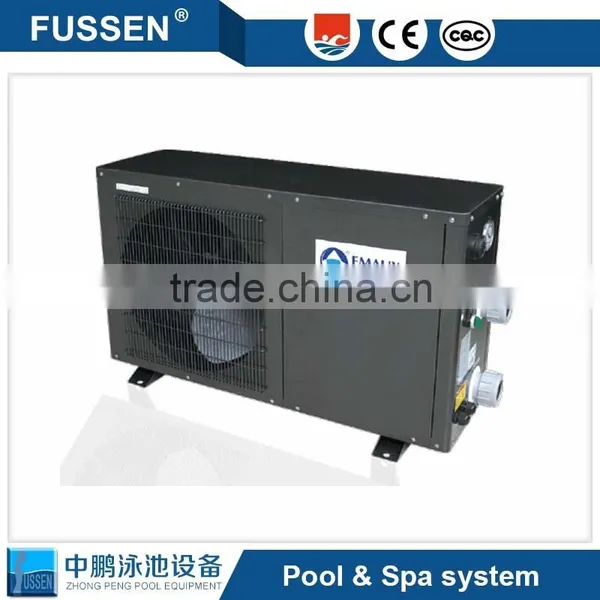

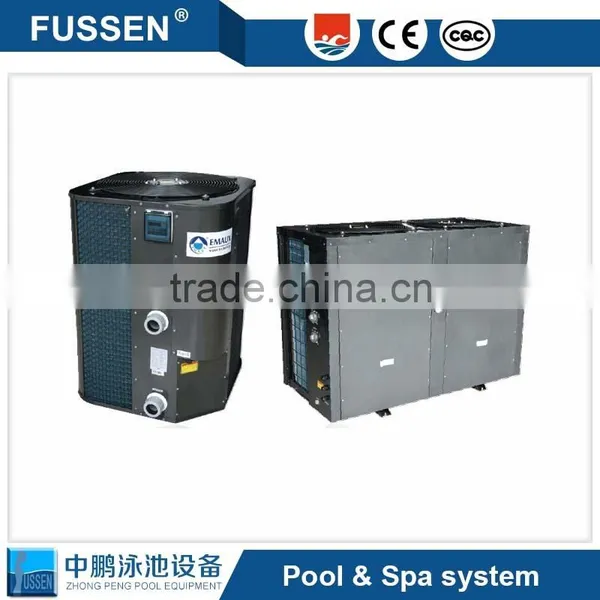

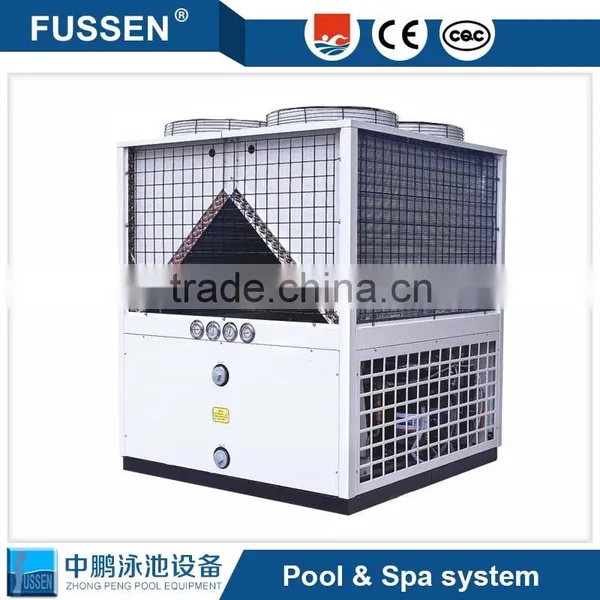

Swimming Pool Heat Pump
Model		KFCRS-12II	KFCRS-19II	KFCRS-24II	KFCRS-35II	KFCRS-45II
Horse Power	HP	3	5	7	10	12
Heating Capacity	kW	12	19	24	35	45
	Btu/h	40900	64800	81800	119400	153540
Rated Input Power	kW	2.4	3.7	4.7	6.9	8.9
Rated Input Current	A	4.3	6.6	8.4	12.3	15.9
Max Input Power	kW	2.6	4.8	6.1	9	11.6
Max Input Current	A	5.6	8.6	10.9	16	20.7
COP	W/W	5	5.09	5.08	5.07	5.07
Operating Ambient Temperature	-10~43ºC
Power Supply	380V/3PH/ 50Hz
Produce Hot Water Temperature	20~35ºC
Hot water yield	L/h	793	1256	1585	2314	2980
Inlet/Outlet Pipe Size	DN	DN40	DN40	DN40	DN50	DN50
Water Side Pressure Loose	mPa	≤70
Water Pump Head	m	8
Water Pump Flow	m³	>5.2	>8.2	>10.3	>15.1	>19.4
Discharge  Side  Over Pressure		4.4mPa
Sunction Side Lower Pressure		0.05mPa
Compressor / QTY	Scroll	SANYO/1	SANYO/1	SANYO/1	SANYO/2	SANYO/2
Heat exchanger		Titanium  high efficient tube in shell heat exchanger
Refrigerant	R410A	1900g	2800g	3200g	2×2800g	2×3000g
Noise	dB(A)	56	62	63	64	66
Unit Dimension	mm	680×680×860	760×760×965		1406×765×1050
Package Size	mm	740×740×900	840×840×1100		1500×830×1200
Weight ( NW/GW)	kg	100	160	206	293	379
Test Condition :Ambient temp.(DB/WB):20ºC/15ºC,Input/output water temp.=15ºC/28ºC
Note: indoor swimming pool with a circulation rate of the basic unit routine follow: 1HP: 10 tons (without pool refill water)

 Quality control- QC:
1> Complying with ISO standard. Quality Ensured.
2> Using world famous Compressor,i.e. COPLAND, PANASONIC, MITSUBISHI,HITACHI, SANYO
3> Complete Inspection covering water system and electricity, ensuring stable hot water production.

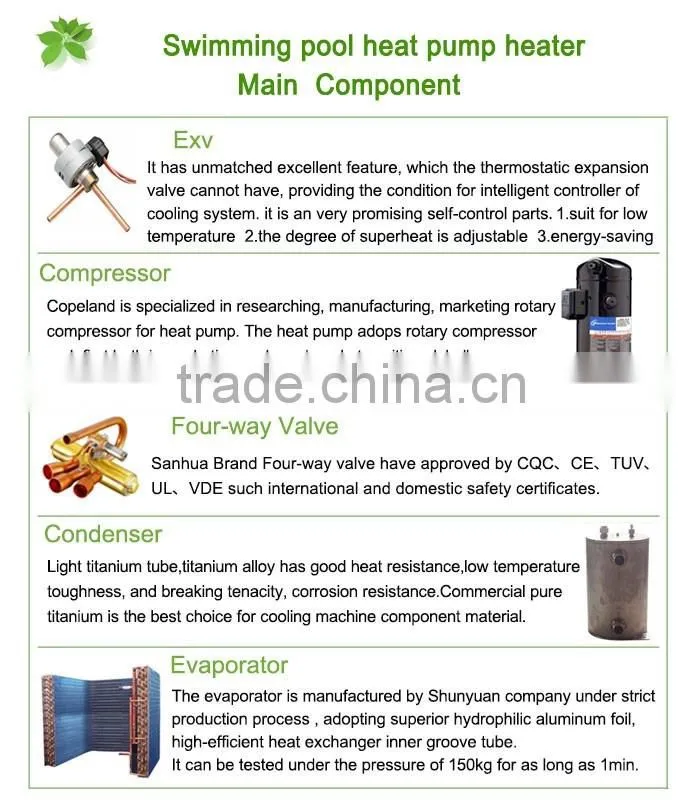

4> Equipped with high efficiency tube in shell heat exchanger, finned heat exchanger or plate heat
exchanger.All structure pipe and compressor with insulation to prevent heat loss.
5> Evaporator using surface modification of hydrophilic aluminous foil.
6> Electric Expansion valve with accurate flow control and gas distribution.
7> LCD display control panel. Intellectual control over water pump, water supplement, water discharge
and defrosting system.
8>  Raw material test,  produce online test,  half-structure test, water cycle test, Lab test

Packing&Shipping

1) FUSSEN is sure shipment within 20  working days .
2) Strong plywood pallet ,  carton package for  FCL full container loading,  strong plywood box for LCL
loading
3) All spare parts together loading into package ,one time finished shipment to buyer
4) Take video for buyer before package to 100% sure buyer get product same as order , no any different

FUSSEN are mainly SWIMMING POOL EQUIPMENT MANUFACTURE in new generation intelligent pool equipment and accessories as INTEGRATIVE WATER FILTER,SPA and SAUNA PRODUCTS ,now we have own brand FUSSEN and AQUATECHNIQUE. having 30 years' considerable experience in this area.

To ensure product quality to meet clients' demands, we manufacture AQUATECHNIQUE pool equipment in accordance with international standards and strict process flows. Furthermore, we are continually studying and improving new pool products to improve our competitiveness, meet fierce market competition and create the most valuable products for customers.

we sincerely invite clients from at home and abroad to join us and create a bright future together.

Service:
1)   Fussen can supply OEM/ODM service for customers.
2)   Produce heat pump according to ISO items , design following customer's special demands,test as
Europe EN14511 standard.
3)  Supply ours business partner 1%~2% free spare parts according to order quantity.
4)  General testing and operational test carried out for every unit before delivery.
5)  18 month whole unit  warranty period. Using life free technical  support.
6)  24 hours technical  services online
7)  Video teach how to install ,how to maintance

Business export:
Currently the products has been exported to Western Europe, North Europe, South Africa, Middle-East,
South American New zealand and Australia market.
