Inflating oil boom
- 5000 Meter / Meters per Month
- QINGDAO
- T/T
- EPDM Installation Waterproof Gasket EPQ-18-5.2
- Heavy Duty Anchor Zinc Plated Anchor
- National standard water expansion stop BW putty type PZ product type 20*30 reinforced mesh type with grouting pipe slow expansion
- Buried steel edge rubber waterstop in bridge and tunnel construction joint deformation joint back attached rubber waterstop
- Reinforcing steel waterproof water expansion rubber water stop ring pile head threaded steel group water rubber expansion water stop rubber ring water
- High-density closed-cell foam strip of pedestal grouting strip sealing grouting strip special for prefabricated beam caulking project
Product Details
Place of Origin: | Shandong, China | Brand Name: | HUAHAI | Model Number: | QDHH-WQJ1800 |
Product Description

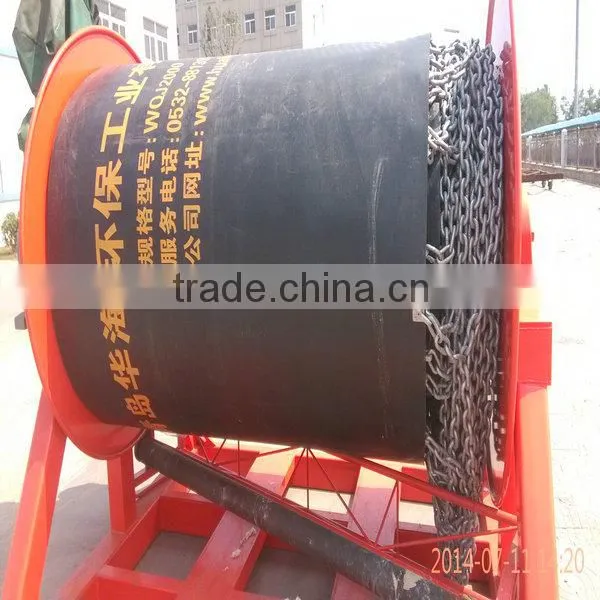

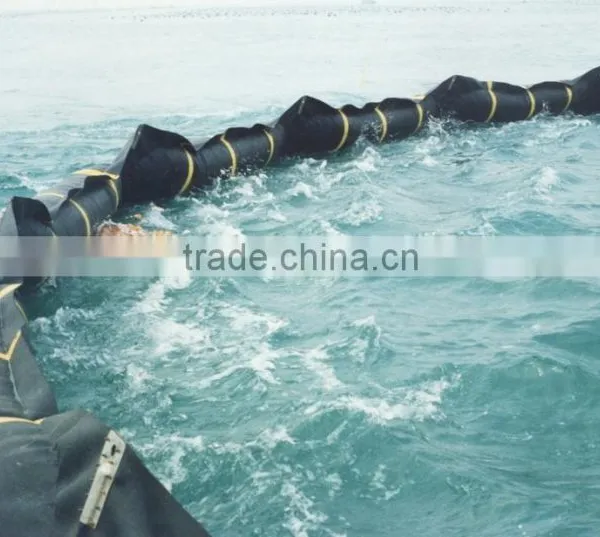

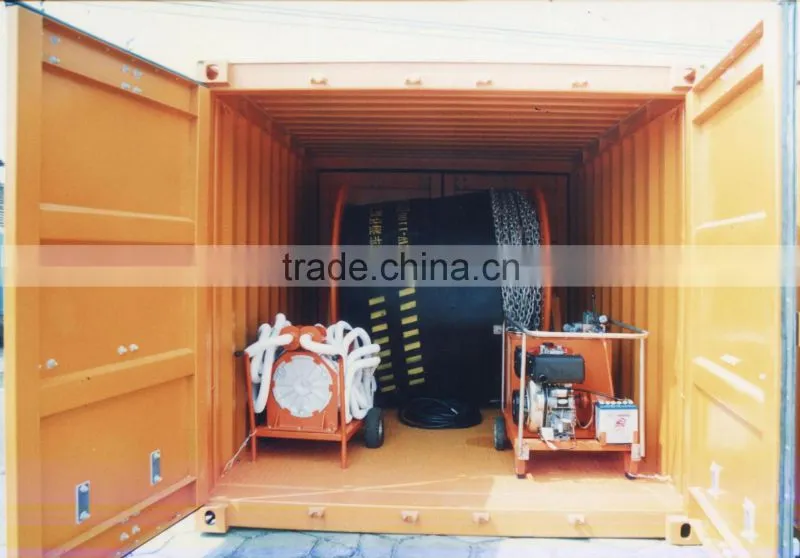

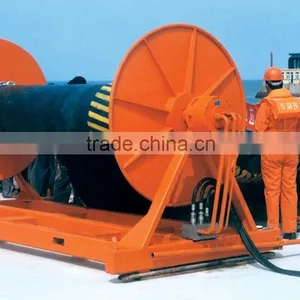

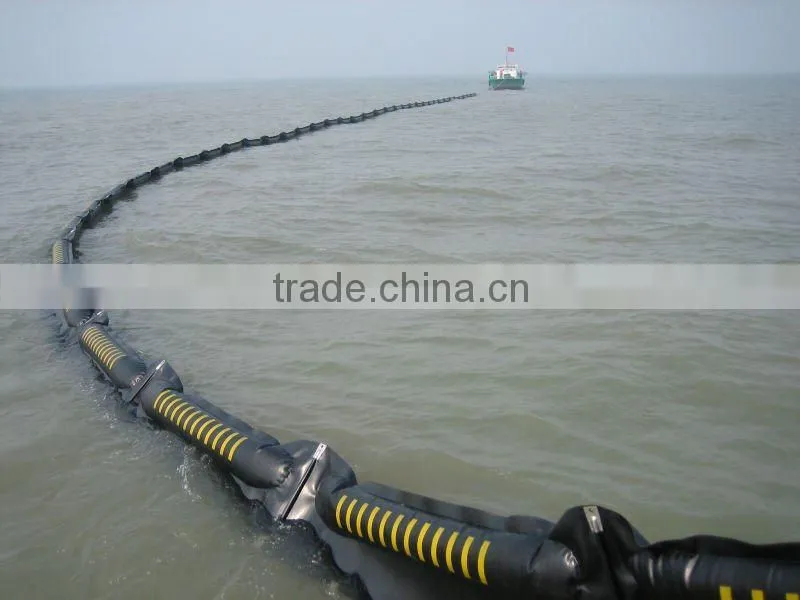

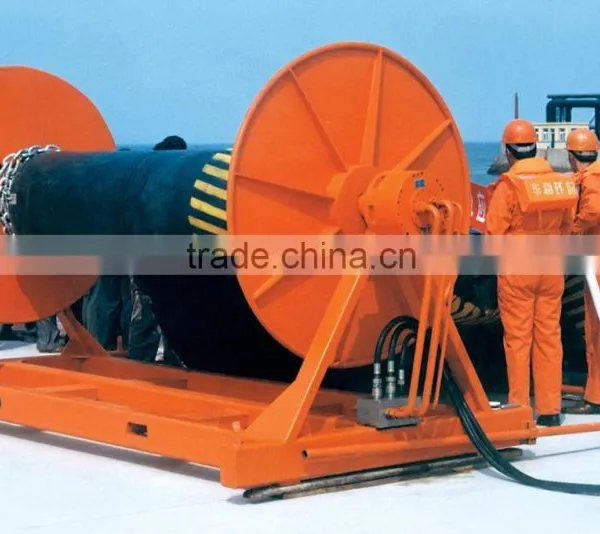

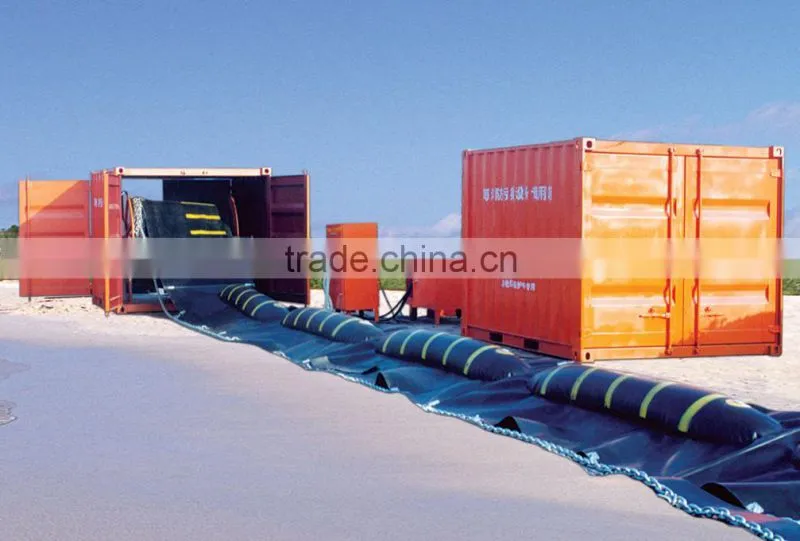

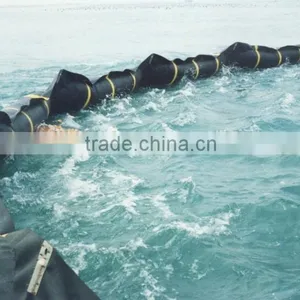

Inflatable rubber boom is a major equipment for containing and preventing oil spill from spreading and shifting in response to an emergency .Its main accessories include a power station ,and inflator ,a tractor,a reel frame and a container .Its widely used on the waters of open seas,harbors, rivers,on wharfs and offshore oil platforms,in the rescue of vessels and on other water areas where there are oil spill.
Features:
1. Its framework is made of the double-layer, high strength nylon canvas coated with the oil resistant, ageing resistant, high quality synthetic rubber
2. The unique air valve design allows for easy and speedy inflation and perfect air-tightness
3. Elastic rods are arranged between chambers to make the boom quite stiff to effectively prevent waves from overtopping
4. The tight tensile ballast chains are the barrier preventing the boom body from being broken
5. Either the luminous marking or the color of the rubber coated on the boom can be chosen for easier identification
6. The flame retardant rubber boom can be chosen for the occasion where the high fire rating is required
7. It can be supplied with such accessories as boom tractor, trail rope and anchor block according to the customer’s order.
Technical data:
Model Parameter | WQJ800 | WQJ1000 | WQJ1200 | WQJ1500 | WQJ1800 | WQJ2000 | WQJ2600 |
Overall height(mm) | 800 | 1000 | 1200 | 1500 | 1800 | 2000 | 2600 |
Freeboard(mm) | 280 | 360 | 400 | 500 | 560 | 600 | 810 |
Draft(mm) | 370 | 430 | 590 | 780 | 950 | 1100 | 1400 |
Max, working tensile strength(Kn) | 110 | 140 | 170 | 190 | 230 | 260 | 280 |
Standard length per section(m) | 100/200 | ||||||
Max, wave height to withstand(m) | 2 | 2 | 2.5 | 3 | 3 | 4 | 4 |
Max,wind speed to withstand(m/s) | 15 | 15 | 20 | 20 | 20 | 25 | 25 |
Max,current speed to with stand(Kn) | 2-3 | 3 | 3-4 | 3-4 | 3-4 | 3-4 | 3-4 |
Dimensions of container(mm) | 2700x2200x2200 | 2900x2200x2200 | 3200x2200x2200 | 3500x2200x2200 | 4100x2200x2200 | 4300x2200x2200 | 5200x2200x2200 |
Qingdao Huahai Environmental Protection Industry Co., Ltd. was founded in 1975, formerly known as Qingdao No. Seven Rubber Products Plant. Our company lies in Qingdao seashore, covering an area of 93,000 square meters with building area of 55,000 square meters, and employs over 400 staff.
We have scientific research, production, sale and service. Our leading products are rubber sheets, rubber matsrubber dams, rubber booms and oil spill response equipment. Our rubber sheets, rubber mats and rubber dams have been exported to Japan, Korea, America, Europe and other countries and regions.
"Satisfaction from customers is our persevering pursuit" is the tenet we have always been following. We warmly welcome friends from all circles to contact us for potential cooperation.
