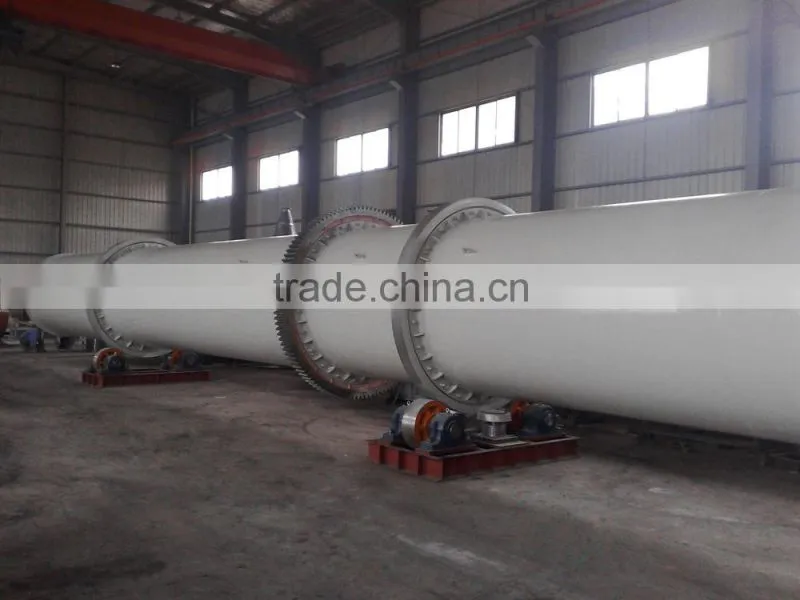

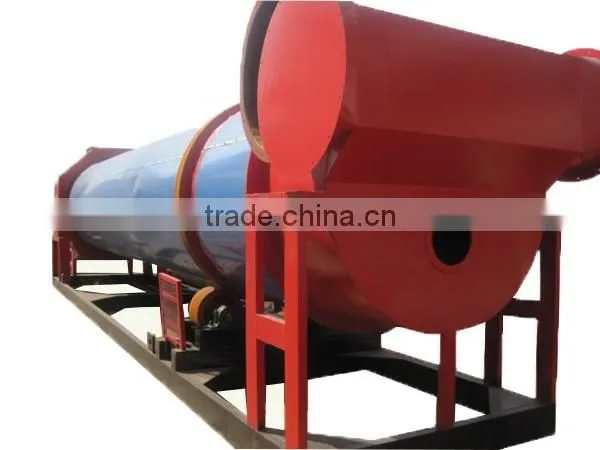

Sawdust Bagasse Rotary Wood Shaving Dryer

Sawdust Bagasse Rotary Wood Shaving Dryer photo-1
US$ 20,000 - 80,000 MOQ: 1 Unit
Key Specifications
Get Latest Price
Condition:
New
Place of Origin:
Jiangsu, China
Brand Name:
LONGJIE
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Place of Origin Jiangsu, China
Brand Name LONGJIE
Model Number LGHG
After-sales Service Provided Engineers available to service machinery overseas

Sawdust bagasse rotary wood shaving dryer

Description of dryer

1.Suitable for drying the straw, the long fiber and 20-30cm size of grass, granular, woodchips, flake, etc.

Sawdust bagasse rotary wood shaving dryer

2.Low power and energy consumption.

3.It can be adjusted the drying speed according to the moisture request.

4.Continuous feeding and discharging and with high output.

5.Can be customized according to the different raw materials.

6.The cylinder self heat preservation efficiency as high as 70% (traditional single cylinder is only 35% ).

7.Adopted frequency speed to control material flow, can according to the requirement to control final moisture index easily.

8.Equipped with blocking alarm device.



Technical Specification

ModelThe outer cylinder Size (mm)Capacity(Kg/h)Theory of evaporation (Kg/h)Power of Fan (kw)Cyclone RequirementEnergy Requirement (kcal)Total Power (kw)
LJHG102000×60402000823301200×275052.4
LJHG152000×654025001050301200×295052.4
LJHG202300×604030001235451200×2112069
LJHG302300×906045001852551250×2130074
LJHG352600×906055002264551250×2150077
LJHG402800×906065002676751200×42520114.5
LJHG503100×9060850035001101250×43200

152.5







About Our Company

Liyang Longjie Machinery Co.,Ltd and Liyang Longjie Electrical Equipment Co. , Ltd. are located in Liyang City, Jiangsu Province. It is a professional enterprise specialized in the production and manufacturing of grain, oil and feed machine and biomass pellet machine. After years of development, our comapny gathered many technical elite and in front of the industry, and also we have technical cooperaion with many universites, product variety is complete.
    At present, according to the market requirement, our company can customize poultry/aquatic feed machine and biomass energy pellet machine according to the different raw material and customers' requirement, and also provide integrated automatic computer central control system, all these have very good market reputation.
    Technology and quality is the life of an enterprise. Our main products include: pig feed extender, dry expansion machine, wet expansion machine, granulator, pulverizer, mixing machine, cooler, pellet crumbler, etc.feed machinery. And also have complete set of biomass pellet ful production line. All the machines' quality are good and recognized by the market. In addition, we provide wide customers with complete technology consulting, product marketing, technology training and maintenance service.
    Insisting on the enterprise tenet of "innovation, professional, cooperative and progressive", we would like to provide wide friends with better and better products and service. Longjie willing to continue to study and develop new technique in the future development, and keep improving our service and quality, to provide more perfect after-sales service and help the biggest cost saving.







About Service

    We insist on "Quality is the soul of company", we own outstanding R&D team with the sense of innovation and cooperation.

    Our professional service includes: Free training, Guidance Installation and Debugging.

     Guaranteed Time: One Year (Calculated from the goods arrived the destination port.)

    If you have any question, please contact us freely. Our after-sales service team online will do the best to accomplish your sincere requirement on time.
