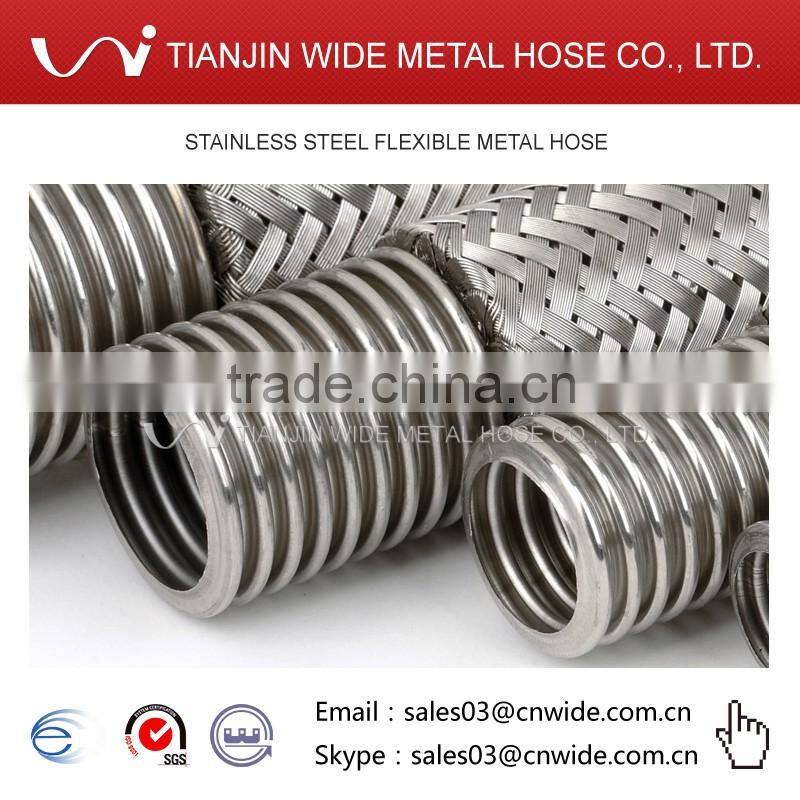

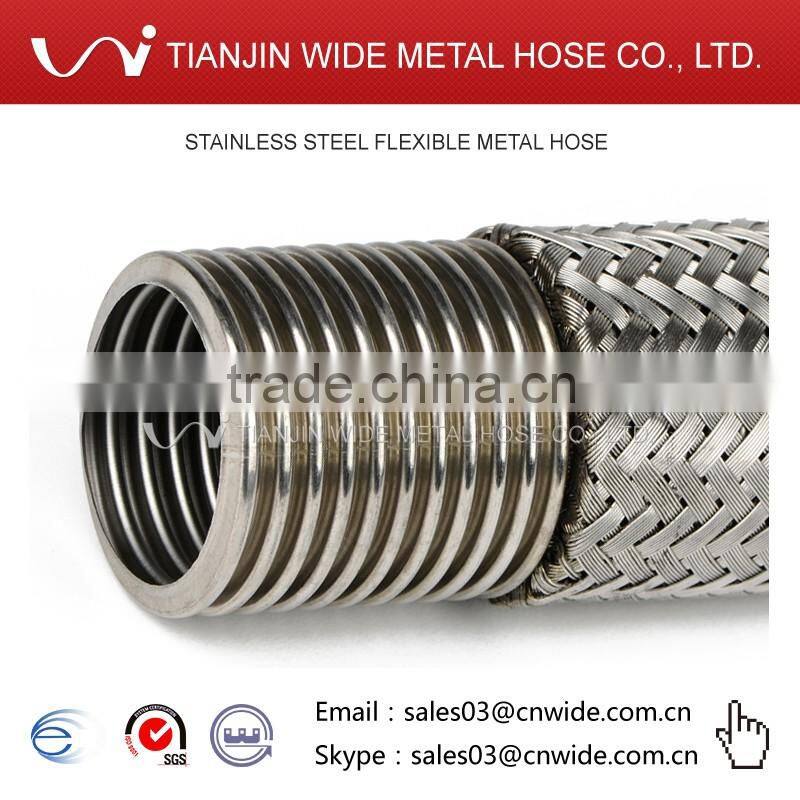

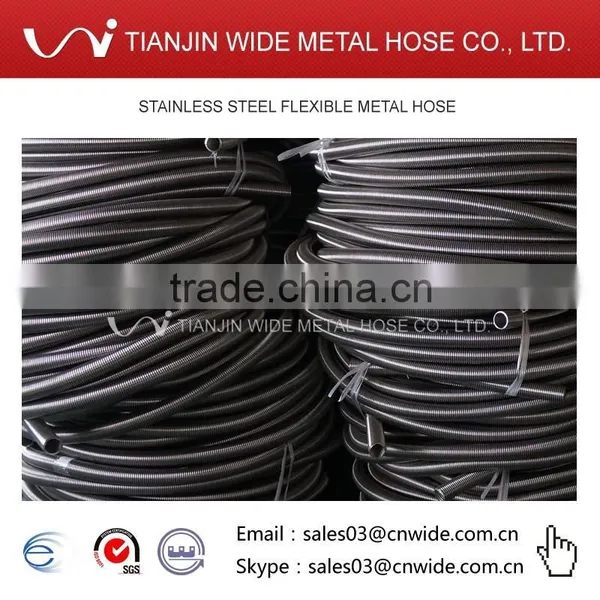

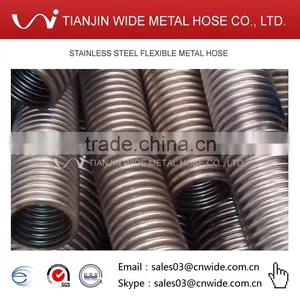

STAINLESS STEEL FLEXIBLE HOSE

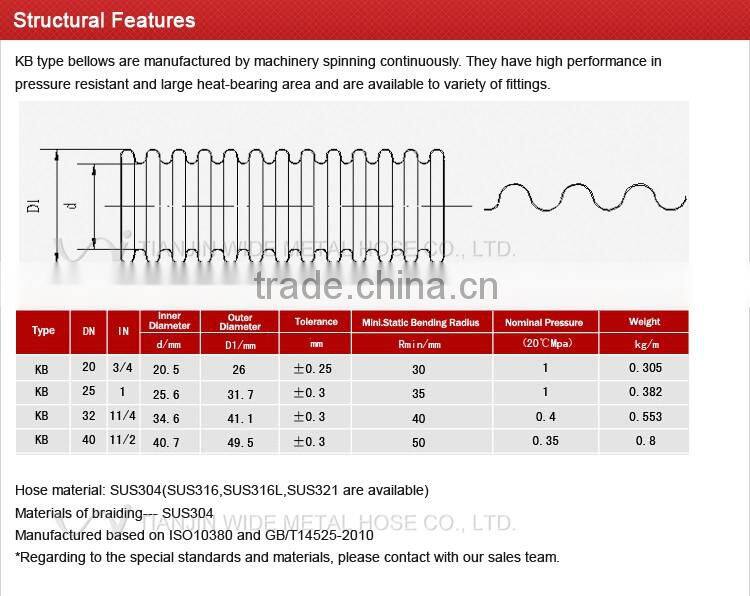

| Bellows Specification Table | Braided Specification Table | |||||||
| Size mm |
Size inch |
Material | Static bend radius (mm) |
Dynamic bend radius (mm) |
Size mm |
Size inch |
Material | |
| DN6 | 1/4" | SS304 , SS316L, (SS321 ALSO AVAILABLE) | 50 | 80 | DN6 | 1/4" | SS304 | |
| DN8 | 5/16" | 65 | 124 | DN8 | 5/16" | |||
| DN10 | 3/8" | 80 | 130 | DN10 | 3/8" | |||
| DN12 | 1/2" | 95 | 140 | DN12 | 1/2" | |||
| DN16 | 5/8" | 120 | 160 | DN16 | 5/8" | |||
| DN20 | 3/4" | 160 | 170 | DN20 | 3/4" | |||
| DN25 | 1" | 175 | 190 | DN25 | 1" | |||
| DN32 | 1 1/4" | 225 | 260 | DN32 | 1 1/4" | |||
| DN40 | 1 1/2" | 280 | 300 | DN40 | 1 1/2" | |||
| DN50 | 2" | 350 | 320 | DN50 | 2" | |||
| DN65 | 2 1/2" | 390 | 670 | DN65 | 2 1/2" | |||
| DN80 | 3" | 480 | 800 | DN80 | 3" | |||
| DN100 | 4" | 600 | 1000 | DN100 | 4" | |||
| DN125 | 5" | 750 | 1245 | DN125 | 5" | |||
| DN150 | 6" | 900 | 1495 | DN150 | 6" | |||
| DN200 | 8" | 1000 | 2030 | DN200 | 8" | |||
| DN250 | 10" | 1250 | 2495 | DN250 | 10" | |||
| DN300 | 12" | 1500 | 3000 | DN300 | 12" | |||
| DN350 | 14" | 1750 | 3500 | |||||
| DN400 | 16" | 2000 | 4040 | |||||
| DN450 | 18" | |||||||
| DN500 | 20" | |||||||
| DN600 | 24" | |||||||
| DN800 | 32" | |||||||
ging & Shipping
Industrial hose line consists of Vacuum, Water, Chemical, Air and Multi-purpose hoses.
Examples are:
Oilfield Applications
Aircraft refueling Applications
Fire Applications
Petroleum Applications
Steam Applications
Chemical Applications
Anhydrous Ammonia Applications
Tianjin Wide Metal Hose Co., Ltd is a manufacturer and supplier of high quality flexible metal hoses, bellow expansion joints and related products, founded in September,1992.The company has skilled design team, professional technology, advanced manufacturing process, up-to-date research and development ability. And with the perfect production, quality control procedures and after-sales service system, Tianjin Wide continuously to create exquisite products to meet multiple demands of customers.
By following the Chinese manufacturing standard GB/T12777-2008,GB/T14515-2010,international standard ISO 10380(E),US EJMA, Tianjin Wide has been optimizing its design, introducing European advanced manufacturing equipments, continually developing products and processes to support both existing & new applications. Our main products have passed ISO9001 and CE certification which give us enough confidence to explore the international market. Tianjin Wide provides products and engineering solutions to domestic and foreign customers like Petro China, Sinopec, China Chemical, Sinoma Group, Heidelberg, Lafarge, Invista, P&G,USA DuPont and to the ones from metallurgy, thermal energy, electric power, construction and other fields."Stand on users position, consider users interests, strive for perfection" is our constant pursuit and commitment to our customers.
More products please click here and contact:
Tianjin Wide Metal Hose Co.,Ltd
Add.: No.16, Xinghua Branch 4 Road, Xiqing EDZ 300385,Tianjin P.R.China
Tel:+86 22 83988865 / 83988866
Fax:+86 22 83988867
Visit us at:
