Large Diameter Corrugated Steel Pipe
US$ 6 - 100
/ Meter
1 Meter(Min. Order)
- tianjin port
- T/T L/C D/P D/A Credit Card PayPal
You May Like
Product Details
| Material | Other, Stainless Steel, SS304; SS316L;SS321 | Technics | Other, welded | |
| Type | Other, welded | Place of Origin | Tianjin, China | |
| Model Number | OEM | Brand Name | wide | |
| Connection | Welding | Shape | Other, Equal, Annular Corrugated | |
| Head Code | Other, round |
Product Description

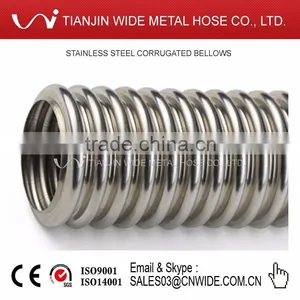

Large Diameter Corrugated Steel Pipe
Product Description
Manufactured based on ISO10380 and GB/T14525-2010
Materials of hose body--- SUS304,SUS316L,SUS321
| Bellows Specification Table | ||||
| Size mm | Size inch | Material | Static bend radius (mm) | Dynamic bend radius (mm) |
| DN6 | 1/4" | SS304 , SS316L, (SS321 ALSO AVAILABLE) | 50 | 80 |
| DN8 | 5/16" | 65 | 124 | |
| DN10 | 3/8" | 80 | 130 | |
| DN12 | 1/2" | 95 | 140 | |
| DN16 | 5/8" | 120 | 160 | |
| DN20 | 3/4" | 160 | 170 | |
| DN25 | 1" | 175 | 190 | |
| DN32 | 1 1/4" | 225 | 260 | |
| DN40 | 1 1/2" | 280 | 300 | |
| DN50 | 2" | 350 | 320 | |
| DN65 | 2 1/2" | 390 | 670 | |
| DN80 | 3" | 480 | 800 | |
| DN100 | 4" | 600 | 1000 | |
| DN125 | 5" | 750 | 1245 | |
| DN150 | 6" | 900 | 1495 | |
| DN200 | 8" | 1000 | 2030 | |
| DN250 | 10" | 1250 | 2495 | |
| DN300 | 12" | 1500 | 3000 | |
| DN350 | 14" | 1750 | 3500 | |
| DN400 | 16" | 2000 | 4040 | |
| DN450 | 18" | |||
| DN500 | 20" | |||
| DN600 | 24" | |||
| DN800 | 32" | |||

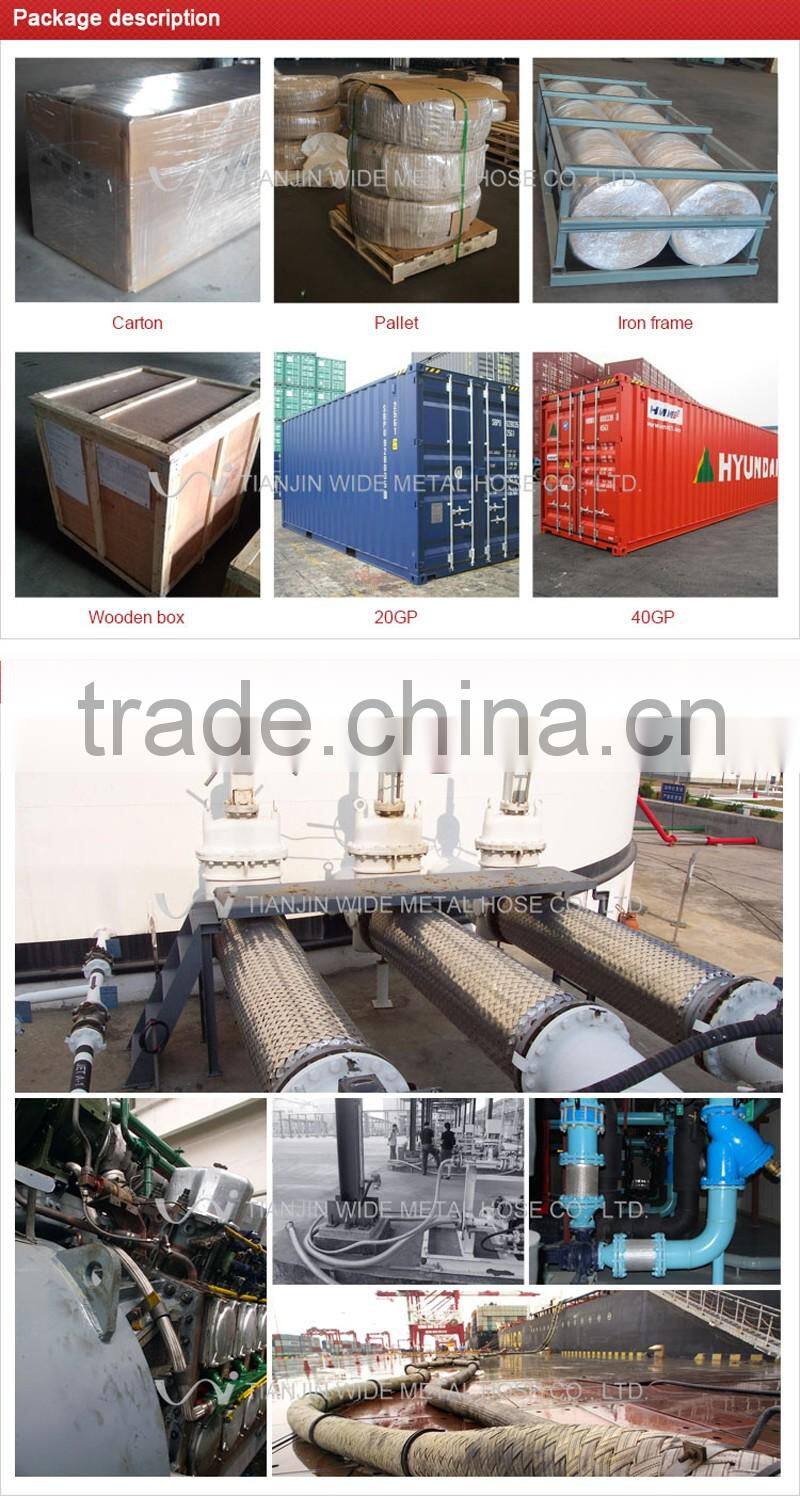

Packaging & Shipping
Our Services
Company Information
Installation
Buying Guides
More products please click here and contact:
Tianjin Wide Metal Hose Co., Ltd.
Add: No.16, Xinghua Branch 4 Road, Xiqing Economic Development Zone 300385, Tianjin City, P.R.CHINA
Tel: +86-22-83988865
Fax: +86-22-83988867
