Factory Sell 2T Dual Fuel LPG/Gasoline Forklift Truck With Hydraulic System

Factory Sell 2T Dual Fuel LPG/Gasoline Forklift Truck With Hydraulic System thumbnail-1
Factory Sell 2T Dual Fuel LPG/Gasoline Forklift Truck With Hydraulic System photo-1
US$ 11,950 - 14,980 MOQ: 1 Unit
Key Specifications
Get Latest Price
Condition:
New
Place of Origin:
Zhejiang, China
Brand Name:
Noelift
Contact Supplier Request Quote Chat Now
Hangzhou Noelift Equipment Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Place of Origin Zhejiang, China
Brand Name Noelift
Model Number FGL20, FGL25, FGL30, FGL35
Type Manual Pallet Truck
Power Souce LP Gas Engine
Rated Loading Capacity 2000kg, 2500kg, 3000kg,3500kg
Max. Lifting Height 6000mm
Min. Lifting Height 3000mm
Fork Length 1070mm
Fork Width 130mm
Overall Dimensions 2715mm*1225mm*2160mm
Certification CE, GOST, ISO9001

Specifications

2T gasoline/LPG forklift
1.automatic transmission with japan TCM techonolgy
2.Japan original import NISSAN K25 motor

Factory sell 2000kg dual fuel LPG/Gasoline forklift truck with hydraulic system

Product Description

01, Integrated overhead guard by punching

2, Energy-efficient hydraulic system

3, Buffer device for transverse steering axle

4, Overhead dual air filters

Product Parameter

Model   FGL20T FGL25T FGL30T FGL35T

Power type   Gasoline/LPG
Rated capacity kg 2000 2500 3000 3500
Load center mm 500
Operator type   Seated
Tyre type Front/Rear   pneumatic
Number of wheels(X=driven)) Front/Rear   2×/2
Lifting height mm 3000
Free lift height mm 140 145 150
Fork size LxWxT mm 920×122×40 1070×122×40 1070×125×45 1070×130×45
Mast tilt range F/R deg  6/12
Overall Length(Without fork) mm 2513 2583 2698 2725
Overall width mm 1150 1225 1225
Mast lowered height mm 1995 2070 2160
Overhead guard height mm 2070 2090
Speed Travel Full load km/h 17 18
No load km/h 19.5 19.5
Lifting Full load mm/s 570 450 380
No load mm/s 600 500 450
Lowering Full load mm/s 450 420
No load mm/s 550 500 460
Self weight kg 3320 3680 4280 4750
Tyres Spec Front   7.00-12-12PR 28*9-15-12PR
Rear   6.00-9-10PR 6.50-10-10PR
Brake type Driving brake   Hydraulic
Parking brake   Mechanical-hand brake
Battery Voltage/Capacity V/AH 12/100
Engine Model   NISSAN  K25
Rated output/r.p.m Kw/rpm 44.2/2500
Rated torque/r.p.m N.m/rpm 186.2/1600

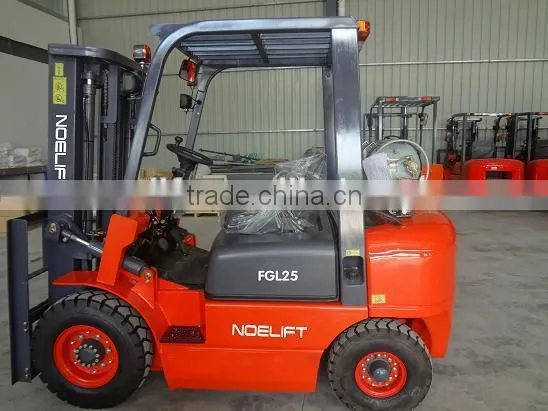

product picture

 Factory sell 2T dual fuel LPG/Gasoline forklift truck with hydraulic system





Detail show

 Factory sell 2T dual fuel LPG/Gasoline forklift truck with hydraulic system     Factory sell 2T dual fuel LPG/Gasoline forklift truck with hydraulic system

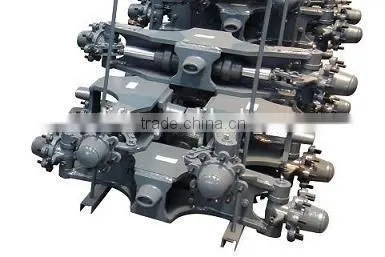

  Axle                                                                                                                                                                             engine

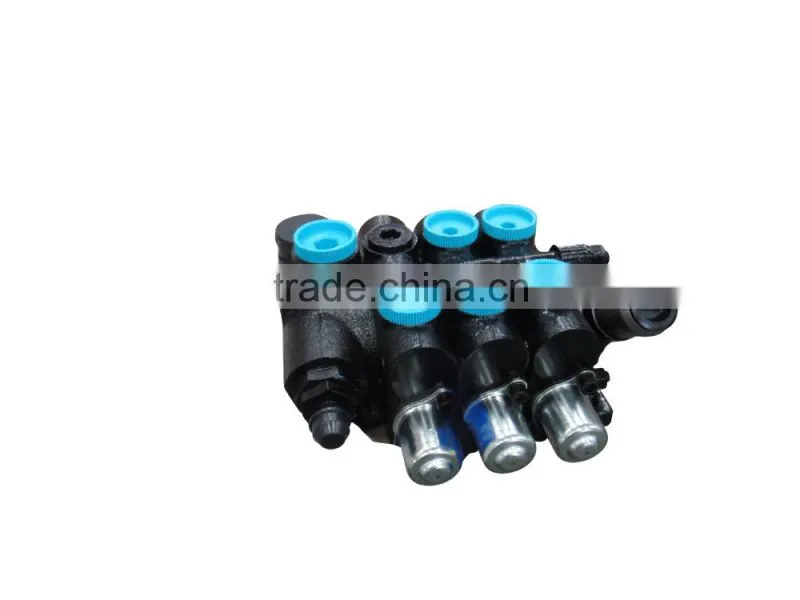

Factory sell 2T dual fuel LPG/Gasoline forklift truck with hydraulic system                Factory sell 2T dual fuel LPG/Gasoline forklift truck with hydraulic systemMulti control valve

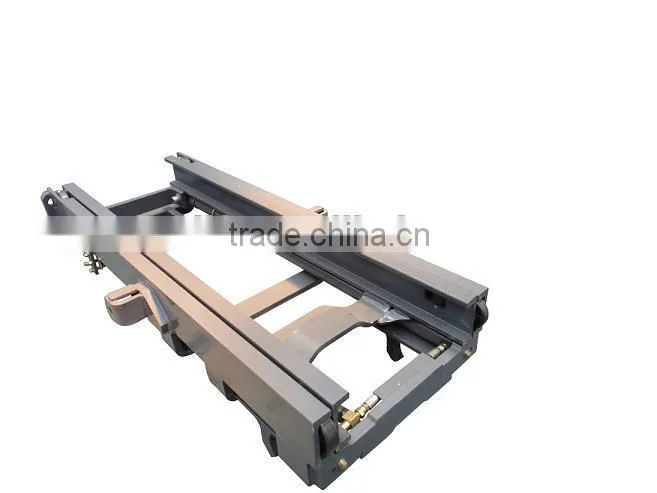

 Forklift mast



   Factory sell 2T dual fuel LPG/Gasoline forklift truck with hydraulic system  Factory sell 2T dual fuel LPG/Gasoline forklift truck with hydraulic system

Tyres                                                                                                                                                                                Forks

Factory details

Factory sell 2T dual fuel LPG/Gasoline forklift truck with hydraulic system

Our Services

1. One-stop solution service.



2. Customized-service all accepted



3. customer service is in time.



4. free maintence for 1 year.

 Any questions or suggestions please feel freely to contact us!
