Assembled Lamp 1.5ton Petrol Forklift Truck

Assembled Lamp 1.5ton Petrol Forklift Truck thumbnail-1
Assembled Lamp 1.5ton Petrol Forklift Truck photo-1
US$ 8,000 - 100,000 MOQ: 1 Unit
Key Specifications
Get Latest Price
Condition:
New
Place of Origin:
Zhejiang, China
Brand Name:
NOELIFT
Contact Supplier Request Quote Chat Now
Hangzhou Noelift Equipment Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
SHANGHAI
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Place of Origin Zhejiang, China
Brand Name NOELIFT
Model Number petrol forklift FG15T
Type Powered Pallet Truck
Power Souce AC Motor
Rated Loading Capacity 1500kg
Max. Lifting Height 6000mm
Min. Lifting Height 3000mm
Fork Length 920mm
Fork Width 100mm
Overall Dimensions 2250mm*1080mm*2040mm
Certification CE, ISO9000,GOST
After-sales Service Provided Overseas third-party support available

Specifications

1.5ton petrol forklift
1.Energy-efficient hydraulic system
2.Buffer device for transverse steering axle

Product Description

1.5ton petrol forklift truck

1. Integration electric elements

2. Buffer device for transverse steering axle

3. Intergal Hood, effectual in heat insulation and noise reduction

4. Energy-efficient hydraulic system

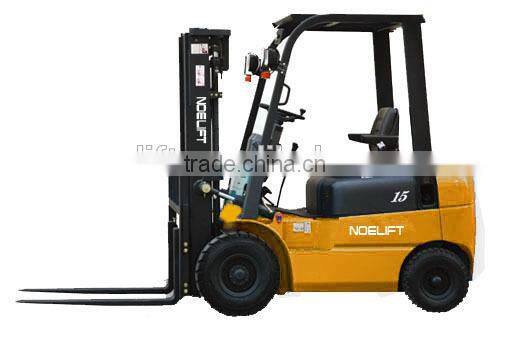

Product Picture

assembled lamp 1.5ton petrol forklift truckassembled lamp 1.5ton petrol forklift truckassembled lamp 1.5ton petrol forklift truck

                            FORKS                                                                                                                  AXLE

Product Parameter



Model   FG(L)10T FG(L)15T FG(L)18T

Power type   Gasoline/LPG
Rated capacity kg 1000 1500 1800
Load center mm 500
Operator type   Seated
Tyre type Front/Rear   pneumatic
Number of wheels(X=driven)) Front/Rear   2×/2
Lifting height mm 3000
Free lift height mm 135
Fork size LxWxT mm 920X100X35 920×100×35 920×100×38
Mast tilt range F/R deg 6/12
Overall Length(Without fork) mm 2171 2231 2274
Overall width mm 1070
Mast lowered height mm 1995
Mast extended height mm 4030
Overhead guard height mm 2070
Turning radius(Outside) mm 1880 1955 1985
Wheelbase mm 1400
Tread Front mm 890 920
Rear mm 920
Ground clearance Lowest mm 110
Wheel base center mm 115
Self weight kg 2150 2590 2820
Tyres Spec Front   6.50-10-10PR
Rear   5.00-8-8PR
Engine Model   NISSAN K21
Rated output/r.p.m Kw/rpm 31.5/2300
Rated torque/r.p.m N.m/rpm 144/1600
No.of cylinder   4
Displacement CC 2065
Fuel tank capacity L 38
Transmission Model type   Powershift
Stage FWD/RVS   1/1



Company Information





1.Noelift has wide selection of models for all, any needs, please contact us for more specific details.

2. as an experienced manufacturer, Noelift can surely provide customized service, if there's any need, please tell me freely.

3.  if there's any problem, please feel free to contact us, we are always there.  (*^__^*)
