1.0-1.5ton Full Electric Stacker With 2 Pallets

1.0-1.5ton Full Electric Stacker With 2 Pallets thumbnail-1
1.0-1.5ton Full Electric Stacker With 2 Pallets photo-1
US$ 3,000 - 100,000 MOQ: 1 Unit
Key Specifications
Get Latest Price
Condition:
New
Place of Origin:
Zhejiang, China
Brand Name:
Noelift
Contact Supplier Request Quote Chat Now
Hangzhou Noelift Equipment Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
SHANGHAI/NANJING
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Place of Origin Zhejiang, China
Brand Name Noelift
Model Number TB10-15A
Type Powered Pallet Truck
Power Souce DC Motor
Rated Loading Capacity 1000-1500kgs
Max. Lifting Height 3500mm
Min. Lifting Height 1600mm
Fork Length 1150mm
Fork Width 210mm
Overall Dimensions 1930mm*800mm*2040mm
Certification CE,GOST, ISO9001
After-sales Service Provided Overseas third-party support available

Specifications

1-1.5ton electric stacker cheap price
10days delivery after advance payment
EPS steering system, easier to operation

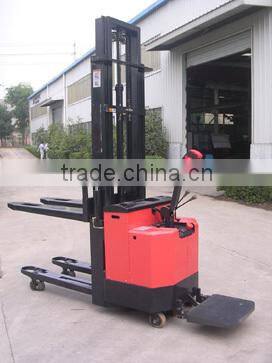

product picture







1.0-1.5ton full electric stacker with 2 pallets





Product Description



China alibaba supplier electric pallet stacker,  TBA Series rated load capacity: 1000-1500kg, lift height:3000mm, it's can used for two pallet' transportation;
1. The leg can lift, to increase the obstacle function;
2. Ergonomics multi-functional operation handle to increase the comfortable degree;
nitiative shocking proof system to reduce the operator' fatigue.
3. We bring forth an exhaustive array of Legover Pallet Stackers. Further, our entire range offers excellent maneuverability in transferring load from one place to another.
4. Speed Limited for high position, to aviod the possibility of products' overturning when high speed in high position;
5. High Strength overhead guard to protect the operator.

Product Parameter



TB-A Electric pallet stacker(Double pallet) 24V



1

Description

Electric pallet stacker(Double pallet)

2

Model

TB10A-16

TB10A-25

TB10A-30

TB15A-16

TB15A-25

3

Load capacity Kg

1000

1000

1000

1500

1500

4

Load center   mm

500

500

500

500

500

5

Max. lifting height mm

1600

2500

3000

1600

2500

6

Lifting height of fork leg mm

200

7

Wheel type

Polyurethane solid tire

8

Pedal length mm

500

500

500

500

500

9

Fork size(LxW)mm

1150*210

10

Width of forks(aptotic) mm

640

640

640

640

640

11

Overall length mm

1930

1930

1930

1930

1930

12

Overall width mm

800

800

800

800

800

13

Overall height mast closed  mm

2080

1790

2040

2080

1790

14

Overall height fork raised(with backrest) mm

2040

2900

3400

2040

2900

15

Outside turning radius mm

1600

1600

1600

1600

1600

16

Front wheel to fork tip   mm

320

320

320

320

320

17

Max. walking speeds   km/h

4.6~5.6

4.6~5.6

4.6~5.6

4.6~5.6

4.6~5.6

18

Grade abitity %

8

8

8

8

8

19

Total weight( with battery) Kg

~890

~945

~960

~890

~945

20

Driving wheel mm

Φ215*75

Φ215*75

Φ215*75

Φ215*75

Φ215*75

21

Front wheel mm

Φ80*70

Φ80*70

Φ80*70

Φ80*70

Φ80*70

22

Balance wheel  mm

Φ150*50

Φ150*50

Φ150*50

Φ150*50

Φ150*50

23

Battery  V/Ah

24/210

24/210

24/210

24/210

24/210

24

Charger V/A

24/30

24/30

24/30

24/30

24/30

25

Driving motor kw

1.2

1.2

1.2

1.2

1.2

26

Lifting motor kw

2.0

2.0

2.0

2.0

2.0







Our Services

1. One-stop solution service.



2. Customized-service all accepted





3. customer service is in time.





4. free maintence for 1 year.



 If you have any questions or suggestions please feel freely to contact us!
