Help CenterHigh Efficiency Low Power Consumption HZS Series Concrete Mixing Plant
Related Products
-
SHENTA CMP1000 Concrete Mixing Station Concrete Batching PlantUS$ 30,000 - 50,000MOQ: 1 Set -
High Efficiency Low Power Consumption HZS Series Concrete Mixing StationUS$ 30,000 - 200,000MOQ: 1 Set
-
High Efficiency Low Power Consumption HZS Series Concrete Mixing PlantUS$ 30,000 - 200,000MOQ: 1 Set
-
Good Stability & High Efficiency HZS50 Used Mobile Concrete Batching PlantsUS$ 50,000 - 150,000MOQ: 1 Set
-
Good Stability & High Efficiency HZS50 Small Mobile Concrete Batching PlantUS$ 50,000 - 150,000MOQ: 1 Set
Specifications
1. 35 year manufacturing experience2. ISO Certificate
3. Good reputation
4. Excellent quality & price
5. Swift service
Characteristic:
HZS Series concrete mixing plant is a modular, quickly-installed concrete mixing plant designed by our company according to market requirement. The aggregate is fed by loader, supplied by batcher and mixed by twin horizontal shafts compulsory mixer. The cement is stored in silo, conveyed by screw conveyor and weighed by cement scale. The water is supplied by water pump and weighted by water scale. The whole procedure is done and controlled by electric control system automatically. It has the function of matching memory, freefall correction, separated manual operation etc, which can realize mode of both manual and automatic operation.
This series of product has the features of simple structure, convenient installation, low cost and advanced configuration. It suits to industry or civil construction, road, bridge and other at site concrete mixing or commercial concrete mixing.
Specifications:
Model |
HZS25 |
HZS35 |
HZS50 |
HZS75 |
HZS100 |
|
Total System |
Theoretical Productivity |
25 |
35 |
50 |
75 |
100 |
Discharge Height |
1.5/2.5/3.8 |
1.8/2.5/3.8 |
3.8 |
3.8 |
3.8 |
|
Main Mixer |
Model |
JS-500 |
JS-750 |
JS-1000 |
JS-1500 |
JS-2000 |
Mixing Motor Power |
18.5 |
30 |
37 |
2X30 |
2X37 |
|
Charge Capacity |
800 |
1200 |
1600 |
2400 |
3200 |
|
Discharge Capacity |
500 |
750 |
1000 |
1500 |
2000 |
|
Max Aggregate Size Grave/Scree |
40/60 |
40/60 |
40/60 |
60/80 |
80/100 |
|
Weighing System |
Aggregate Weighing Scope and Accuracy |
1800±2% |
2500±2% |
3000±2% |
4000±2% |
5000±2% |
Granule Weighing Scope and Accuracy |
300±1% |
500±1% |
600±1% |
1000±1% |
1200±1% |
|
Water Weighing Scope and Accuracy |
According to customers’ requirement |
400±1% |
500±1% |
|||
Additive Weighing Scope and Accuracy |
According to customers’ requirement |
50±1% |
50±1% |
|||
Our Achievement:
HZS150 Concrete Mixing Plant in Vietnam
HZS35 Simple Concrete Mixing Plant

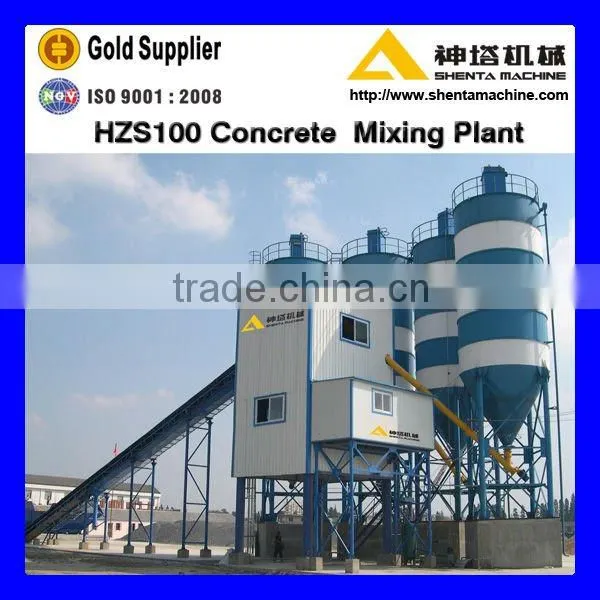

2XHZS100 Commercial Concrete Mixing Plant in Thailand
2XHZS35 Concrete Mixing Plant
