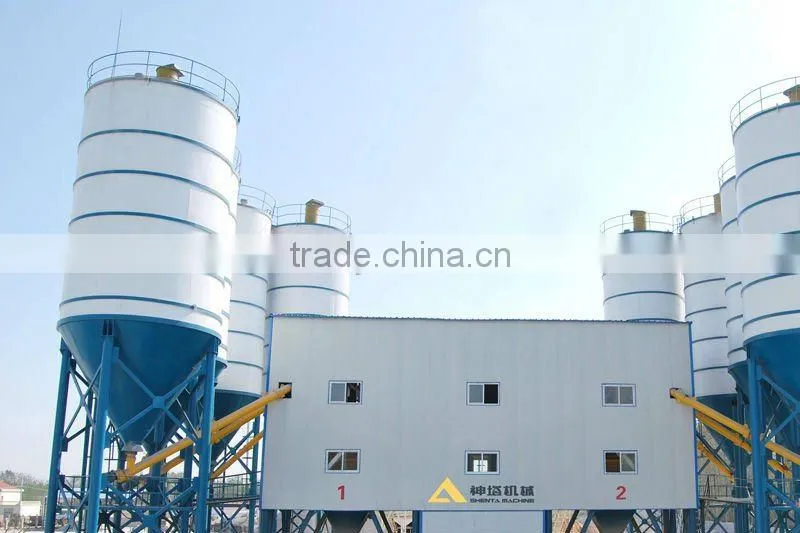

High efficiency low power consumption HZS series concrete mixing plant

40GP/40HQ container, according to the customer's request, seaworthy packing.

Specifications

1. concrete mixing plant
2. ISO Certificate
3. Good reputation
4. Excellent quality & price
5. Swift service

High efficiency low power consumption HZS series concrete mixing plant



1. Characteristic of concrete mixing plant :

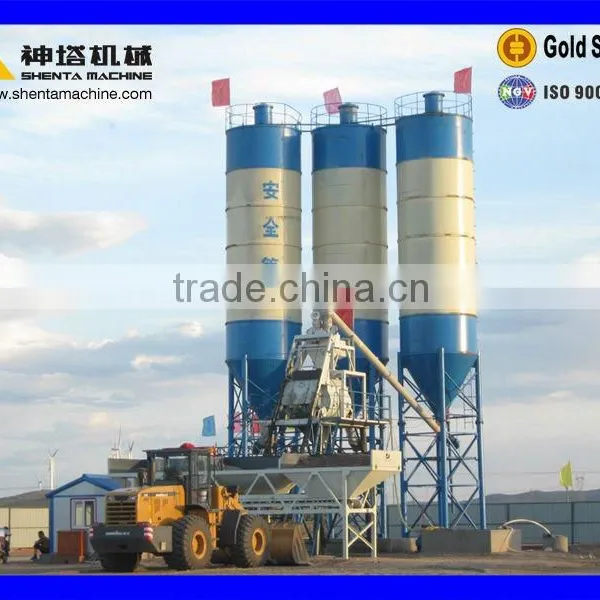

HZS Series concrete mixing plant is a modular, quickly-installed concrete mixing plant designed by our company according to market requirement. The aggregate is fed by loader, supplied by batcher and mixed by twin horizontal shafts compulsory mixer. The cement is stored in silo, conveyed by screw conveyor and weighed by cement scale. The water is supplied by water pump and weighted by water scale. The whole procedure is done and controlled by electric control system automatically. It has the function of matching memory, freefall correction, separated manual operation etc, which can realize mode of both manual and automatic operation.

This series of product has the features of simple structure, convenient installation, low cost and advanced configuration. It suits to industry or civil construction, road, bridge and other at site concrete mixing or commercial concrete mixing.



2. Specifications of concrete mixing plant :



Model		HZS25	HZS35	HZS50	HZS75	HZS100
Total System	Theoretical Productivity	25	35	50	75	100
	Discharge Height	1.5/2.5/3.8	1.8/2.5/3.8	3.8	3.8	3.8
Main Mixer	Model	JS-500	JS-750	JS-1000	JS-1500	JS-2000
	Mixing Motor Power	18.5	30	37	2X30	2X37
	Charge Capacity	800	1200	1600	2400	3200
	Discharge Capacity	500	750	1000	1500	2000
	Max Aggregate Size Grave/Scree	40/60	40/60	40/60	60/80	80/100
Weighing System	Aggregate Weighing Scope and Accuracy	1800±2%	2500±2%	3000±2%	4000±2%	5000±2%
	Granule Weighing Scope and Accuracy	300±1%	500±1%	600±1%	1000±1%	1200±1%
	Water Weighing Scope and Accuracy	According to customers’ requirement			400±1%	500±1%
	Additive Weighing Scope and Accuracy	According to customers’ requirement			50±1%	50±1%



3. Our Achievement:





                                                            HZS150 Concrete Mixing Plant in Vietnam





                                                                    HZS35 Simple Concrete Mixing Plant





                                    2XHZS100 Commercial Concrete Mixing Plant in Thailand



                                                                              2XHZS35 Concrete Mixing Plant





4. About SHENTA Machine:







Nanning SHENTA Machinery Equipment Co., Ltd, lies at the beautiful “Green City of China” – Guangxi Nanning, is one of the first group of the manufacturer specialized in research, development, fabrication of the concrete block machine, mixing machine and other construction material machine in China, pass the ISO 9001:2008 Certificate. We uphold the philosophy “advanced technology, nice craft, strict supervision and perfect service”, provide customer the excellent and reliable equipments for the new and eco-friendly construction material industry.



SHENTA Machine locate in the south of China, far from the frontier of Vietnam only 200km, is the closest Brick Machine Manufacture from ASEAN, with the advantageous geographical location and transportation, we build the solid foundation with the ASEAN country to develop the long-term and stable cooperation.



SHENTA Machine’s plant occupy 40,000m2 area, include 20,000m2 workshop, 210 workers team, 20 administrators and 15 technicians, produce the brick production lines and machine more than 500 units per annum, sell in domestic and export to South-east Asia, USA, Afric and Middle East region.









Welcome Contact Alisa for more information and specification of the concrete mixing plant
