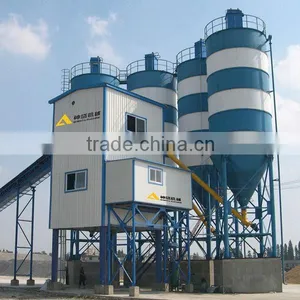

Good Stability & High Efficiency HZS50 mobile concrete batching plant

40GP/40HQ container, according to the customer's request, seaworthy packing.

Specifications

le concrete batching plant
2.Productivity 25-50 m3/h
3.Two Opeation model of Automatic & Manual
4.Swift service

Ready-mixed concrete mixing plant, HZS50 mobile concrete batching plant



SHENTA MACHINE, Your best partner & Reliable Consultant



Contact Maky Tel +86.13788113588 you will get swift & professional response!

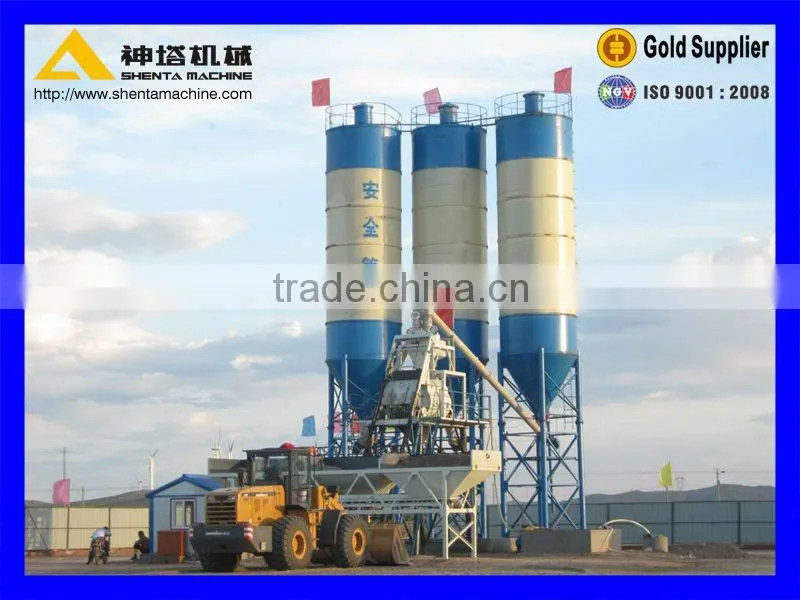

1. Characteristic of HZS50 mobile concrete batching plant



HZS Series concrete mixing plant is a modular, quickly-installed concrete mixing plant designed by our company according to market requirement. The aggregate is fed by loader, supplied by batcher and mixed by twin horizontal shafts compulsory mixer. The cement is stored in silo, conveyed by screw conveyor and weighed by cement scale. The water is supplied by water pump and weighted by water scale. The whole procedure is done and controlled by CMC series full automatic electric control system. It has the function of matching memory, freefall correction, separated manual operation etc, which can realize mode of both manual and automatic operation.



This series of HZS concrete mixing plant has the features of simple structure, convenient installation, low cost and advanced configuration. It suits to industry or civil construction, road, bridge and other at site concrete mixing or commercial concrete mixing.



1. The main building of batching plant with good quakeproof function, working condition is perfect, and convenientfor maintain
2. Horizontal twin-shaft compulsion type Concrete Mixer has such characteristics as good mixing quality,high efficiency, low energy consumption and low wearing and so on for the adoption of advanced technologies.

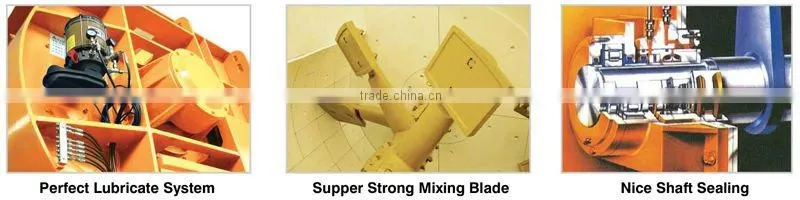

3. Twin-shaft Mixer with shaft seal possesses manual & automatic lubrication system, and the latter iscontrolled by computer-according to requirement, oil quantity and time interval of lubrication can be set, and oil cut-off alarm also can be set.
4. Measurement accuracy of the whole machine is better than the national standards
5. Contactless electromagnetism position switches are used in all air cylinders to guarantee long service life.



2. Main Technical Parameters



Model			HZS50
Total System	Theoretical Productivity(m3/h)		50
	Discharge Height(m)		3.8
Main Mixer	Model		JS-1000
	Mixing Motor Power(Kw)		2x18.5
	Charge Capacity(L)		1600
	Discharge Capacity(L)		1000
	Max Aggregate Size Grave(mm)		60
Weighing System	Aggregate Weighing Scope and Accuracy (Kg)		3000±2%
	Cement Weighing Scope and Accuracy(Kg)		500±1%
	Water Weighing Scope and Accuracy(Kg)		According to customers’ requirement
	Additive Weighing Scope and Accuracy(Kg)		According to customers’ requirement



3. Main Machine Configuration

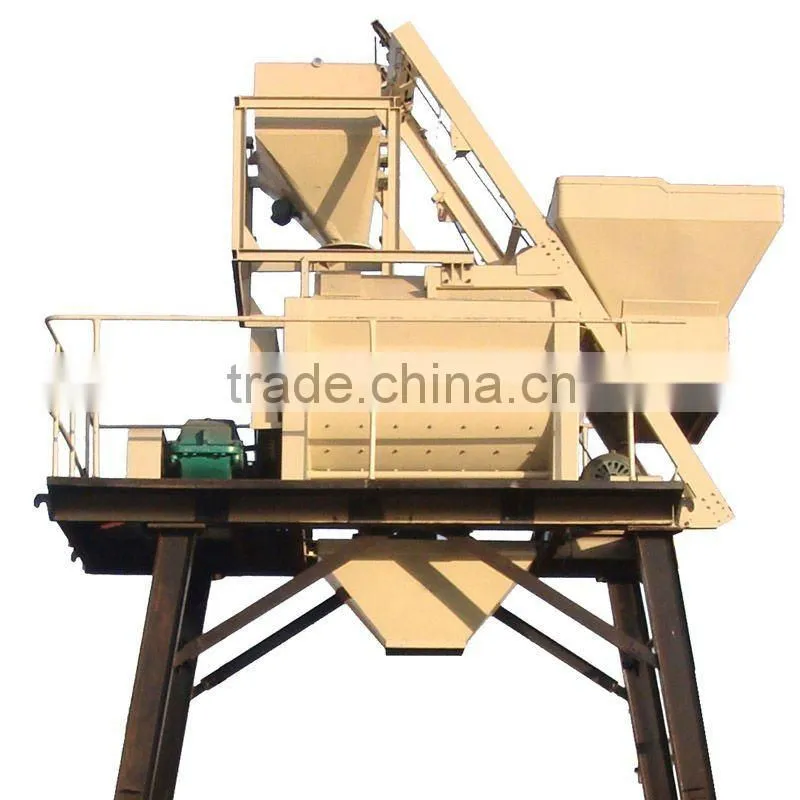

Horizontal twin-shaft compulsion Concrete Mixer JS1000

Delivery Capacity: 1000L

Loading Capacity: 1600L

Productivity: 50m³/h

Max. Diameter of Aggregates: 60mm

Mixing Blade: Rotating Speed 22.5rpm, Quantity: 2X7

Mixing Power: 2X18.5kW

Lifting Power: 15kW

Water Pump Power: 750W

Discharge Power: 3kW

Discharge Height: 1500mm

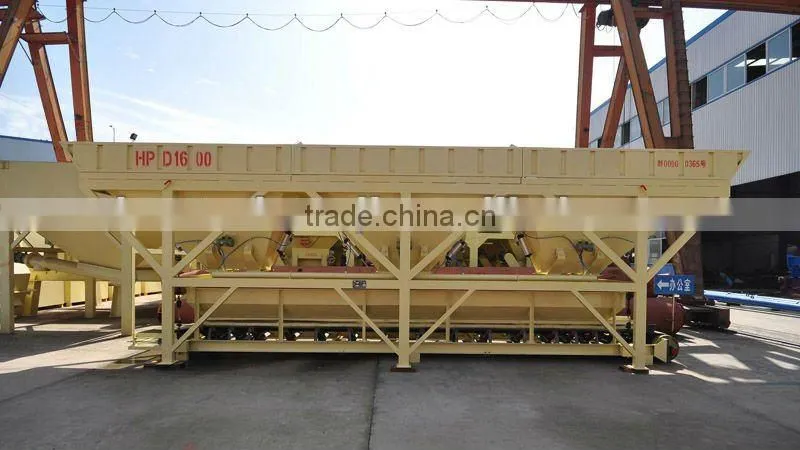

Aggregate Batch HPD1600 (3 Hopper)



Capacity of Weighing Hopper: 1600L



Capacity of Storage Hopper: 3X6 m³



Productivity: >50 m³/h



Weight Precision: ±2%



Belt Motor Power: 4kW



Working Mode: Belt+Pneumatic



Net Weight: 4100Kg



Dimension: 9900x1800x3150mm

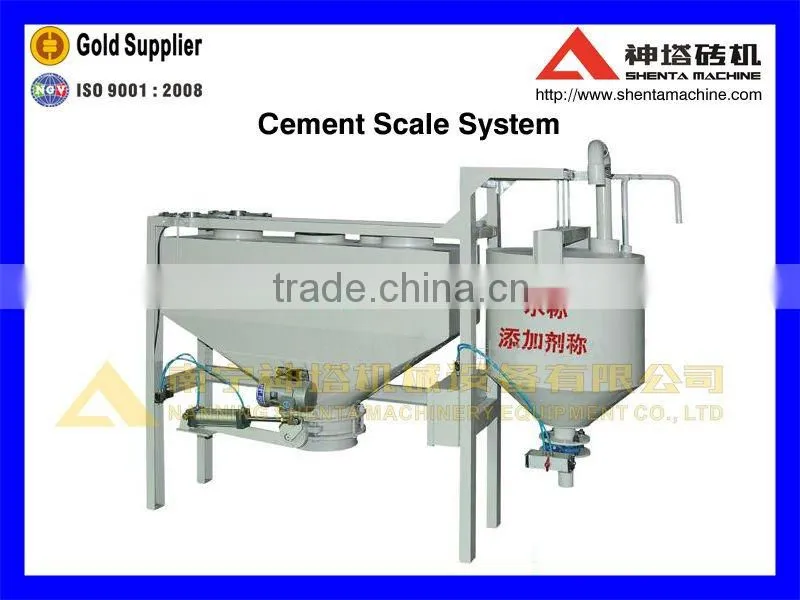

Cement/Water Scale System Z₃-500



Capacity of Cement Weighing Hopper: 400L



Weighing Precision: ±1%



Max. Metage of Powder Material (Cement & Additive): 500Kg



Max. Metage of Water Scale: 180Kg



Weight: 500Kg

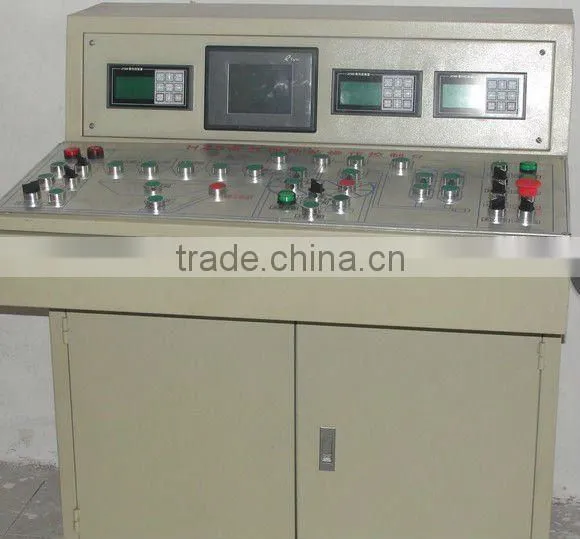

Automatic Control System



PLC Controller: MITSUBISHI



Main Electric Parts: OMRON or SCHNEIDER



Touch Screen: Eview

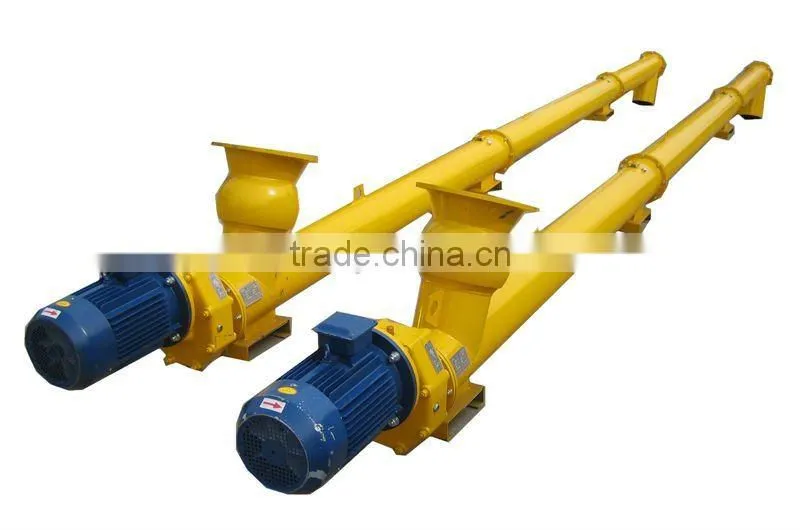

Cement Screw Conveyor LSY219-6m



Exterior Shell Diameter: 219mm



Conveying Length: 6m



Motor Power: 7.5Kw



Max. Conveying Capacity: 35t/h



4. About SHENTA Machine:



Nanning SHENTA Machinery Equipment Co., Ltd, lies at the beautiful “Green City of China” – Guangxi Nanning, is one of the first group of the manufacturer specialized in research, development, fabrication of the concrete block machine, mixing machine and other construction material machine in China, pass the ISO 9001:2008 Certificate. We uphold the philosophy “advanced technology, nice craft, strict supervision and perfect service”, provide customer the excellent and reliable equipments for the new and eco-friendly construction material industry.



SHENTA Machine locate in the south of China, far from the frontier of Vietnam only 200km, is the closest Brick Machine Manufacture from ASEAN, with the advantageous geographical location and transportation, we build the solid foundation with the ASEAN country to develop the long-term and stable cooperation.



SHENTA Machine’s plant occupy 40,000m2 area, include 20,000m2 workshop, 210 workers team, 20 administrators and 15 technicians, produce the brick production lines and machine more than 500 units per annum, sell in domestic and export to South-east Asia, USA, Afric and Middle East region.







Welcome Contact Maky (Skype: Shenta_maky, Mobile: +86.13788113588) for more information

 and specification of the HZS50 mobile concrete batching plant
