single-screw extruderSuitable for PE,PP,PPR
Optimizing melt process to get high output
Extrusion with low melt temperature

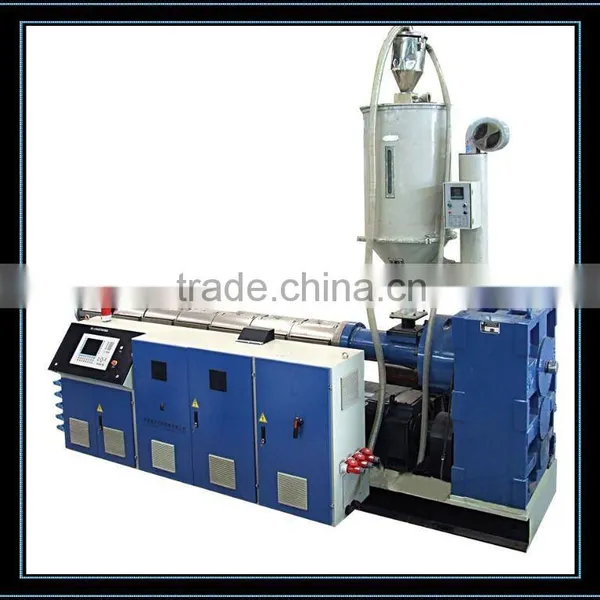

SJ series single-screw extruder is developed with German technology. Screw is separate type with mixing part. Barrel is grooved feed type with lengthened feeding part. With separate screw and grooved barrel, the extruder has advantages
1. Optimizing melt process to get high output.
2. Extrusion with low melt temperature.
3. The cut from separate clearance makes material even
4. Suitable for all kinds of polyolefin material especially PE, PP and PP-R.
Main technical parameter
Model |
Screw diameter |
L/D |
Rotational speed |
Motor power |
Motor form |
Output |
Center height |
SJ-25/25 |
25mm |
25:1 |
25 rpm |
1.5 kw |
AC |
3 kg/h |
1000mm |
SJ-30/25 |
30mm |
25:1 |
50 rpm |
2.2 kw |
AC |
5 kg/h |
1000mm |
SJ-65/30 |
65mm |
30:1 |
20-120 rpm |
45 kw |
AC |
150 kg/h |
1000mm |
SJ-65/33 |
65mm |
33:1 |
20-120 rpm |
55 kw |
AC |
200 kg/h |
1000mm |
SJ-75/33 |
75mm |
33:1 |
12-120 rpm |
75/90/110 kw |
DC |
350 kg/h |
1000mm |
SJ-90/33 |
90mm |
33:1 |
12-100 rpm |
160 kw |
DC |
450 kg/h |
1100mm |
SJ-120/33 |
120mm |
33:1 |
10-80 rpm |
250/315 kw |
DC |
850 kg/h |
1200mm |
SJ-150/33 |
150mm |
33:1 |
7.5-75 rpm |
315 kw |
DC |
1200 kg/h |
1300mm |
