Help CenterAmerican UL SJ 14AWGX2C Rubber Insulated Welding Cable
Related Products
-
American UL SJ 14AWGX2C Cable RubberUS$ 1 - 10MOQ: 1000 Meters -
American UL SJO 16AWGX3C Rubber CordUS$ 1 - 10MOQ: 1000 Meters
-
American UL SJO 16AWGX3C Silicone Rubber CordUS$ 1 - 10MOQ: 1000 Meters
-
American UL SJO 16AWGX3C Elastic Rubber CordUS$ 1 - 10MOQ: 1000 Meters
-
American UL SJOOW 18AWGX3C Rubber Stretch CordUS$ 1 - 10MOQ: 1000 Meters
Specifications
American UL SJ 14AWGX2C rubber insulated welding cable1. Rubber sheathed
2. UL approved
3. Rating: 300V
4. Color: Black

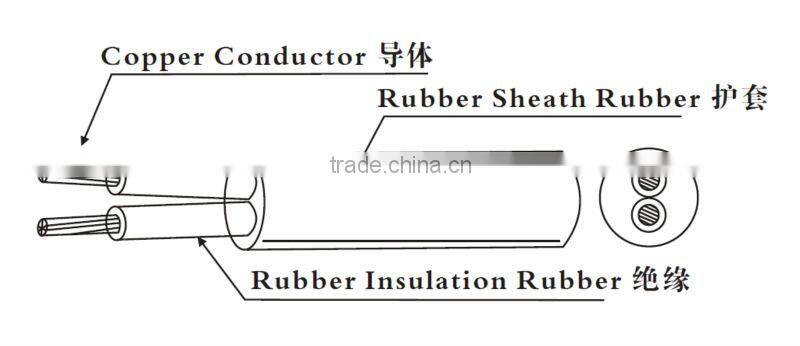

American UL SJ 14AWGX2C rubber insulated welding cable
1. Rubber sheathed
2. UL approved
3. Rating: 300V 105°c
4. Color: Black
| Type | No.of conductor |
Conductor
|
Insulation thickness (mm) |
Sheath thickness (mm) |
Overal diameter (mm) |
Max Conductor resistance at 20°C (Ω/km) |
||
| Normal Area (mm²) |
Construction (No. /mm) |
|||||||
|
SJ
SJO
SJOO
SJOW
SJOOW
|
2 | 18 | 47/0.15 | 0.76 | 0.76 | 7.3±0.2 | 22.4 | |
| 16 | 74/0.15 | 0.76 | 0.76 | 7.9±0.2 | 14.1 | |||
| 14 | 66/0.20 | 0.76 | 0.76 | 8.7±0.2 | 8.88 | |||
| 12 | 67/0.25 | 0.76 | 1.14 | 10.4±0.3 | 5.58 | |||
| 3 | 18 | 47/0.15 | 0.76 | 0.76 | 7.8±0.2 | 22.4 | ||
| 16 | 74/0.15 | 0.76 | 0.76 | 8.4±0.2 | 14.1 | |||
| 14 | 66/0.20 | 0.76 | 0.76 | 9.5±0.2 | 8.88 | |||
| 12 | 67/0.25 | 0.76 | 1.14 | 11.3±0.3 | 5.58 | |||
| 4 | 18 | 47/0.15 | 0.76 | 0.76 | 8.5±0.2 | 22.4 | ||
| 16 | 74/0.15 | 0.76 | 0.76 | 9.2±0.2 | 14.1 | |||
| 14 | 66/0.20 | 0.76 | 0.76 | 10.2±0.3 | 8.88 | |||
| 12 | 67/0.25 | 0.76 | 1.14 | 12±0.3 | 5.58 | |||
| 5 | 18 | 47/0.15 | 0.76 | 0.76 | / | 22.4 | ||
| 16 | 74/0.15 | 0.76 | 0.76 | / | 14.1 | |||
| 14 | 66/0.20 | 0.76 | 0.76 | / | 8.88 | |||
| 12 | 67/0.25 | 0.76 | 1.14 | / | 5.58 | |||
Product Picture:
Factory Picture:
Certificated Approval:
CCC, UL/CUL,CEE,VDE,GS,NF,BS,CSA,PSE,SAA,SABS,SEV,NBR,EK,KEMA and so on.
QC Team :
A QC team with more than 20 professional and technical personnel. To ensure 100% products checking.
Material: Strictly control of material using, meet international requested standards.
Semi-finished products inspection: Product inspection before 100% finished.
Production line test: With work team or data engineer who will inspect machines and lines at fixed period.
Finished Product Inspection: Quality and property test before products are packed and loaded.
Market:
Contact:
We will reply your email within 24 hours.
You can call us at any time if there is any question, thanks.
If you want to know more information, pls do not hesitate to contact us!
Email: tina(at)
