Multifunction UV Coater with Two Rollers
MDF / Plywood UV Desktop Coating Machine
Roller UV Coating Machine
JXRA 11-600/1000/1300
Machine Specification:
Multifunction coater with two rollers can be applied to the surface coating of a variety of flat plate, such as wood,plastic,metal,solar glass,etc.
Flat painting film which coated by this machine is smooth,delicate, no color variation.
The separated structure design of this machine makes it easy to disassemble and clean.
This machine is suitable for the coating of a variety of paints such as UV,PU,NC and waterborne coatings.The remained paint can be recycled and make no-waste.
We have the full coating production line,such as sander machine,stain brush machine,curtain painting machine,putty machine,uv curing machine,covey machine and dust clean machine,etc.
Optional:the machine with PLC board for fully automatically operation.
Machine Parameter:
Model |
JXRA 11-600 |
JXRA 11-1000 |
JXRA 11-1300 |
Working Width(mm) |
600 |
1000 |
1300 |
Working Thickness(mm) |
2~80 |
2~80 |
2~80 |
FeedingSpeed (m/min) |
5~20 |
5~20 |
5~20 |
Shortest convey Length( mm) |
300 |
300 |
300 |
Rubber Wheel Size |
250×750 |
250×1150 |
250×1450 |
Steel Wheel Size |
130×750 |
130×1150 |
130×1450 |
Convey Power(kw) |
0.75 |
1.5 |
1.5 |
Rubber Wheel Power(kw) |
0.75 |
1.5 |
1.5 |
Steel Wheel Power(kw) |
0.37 |
0.37 |
0.75 |
Machine Size(mm) |
1800×1560×1580 |
1800×1960×1580 |
1800×2260×1580 |
Machine Weight(kg) |
1200 |
1400 |
1800 |

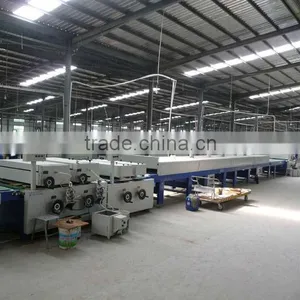

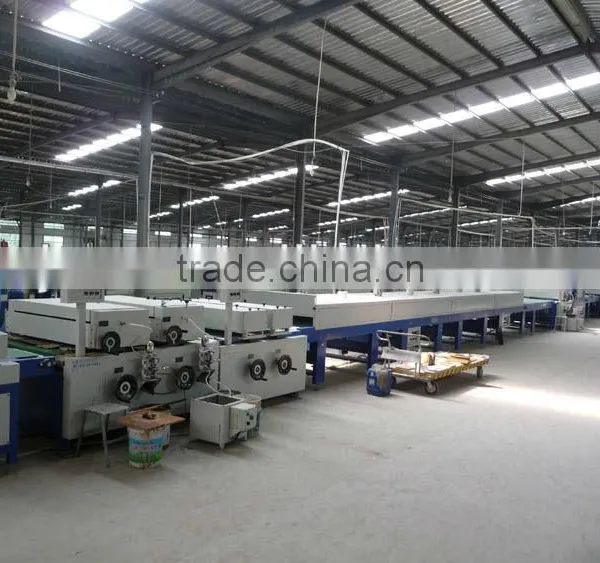

Production Line:
Running Model:
Package
Wooden standard box is suitable for the export and long transportation,free fumigation.
Payment
We usually accept T/T, payment terms : 30% TT deposit, the balance before shipping.
Shipment
Air,sea and express transportation all are available,we have good cooperations with them ,this saves your shipping cost and guarantee your goods safe, if your own forwarder in China can help you to handle the export ,we can accept the factory price(EXW.),We arrange the local shipment,which’s easy for you to control the transportation cost.
Warranty
- 1 years warranty for the machines.
- Any warranty shipping cost to us is responsible by buyer
