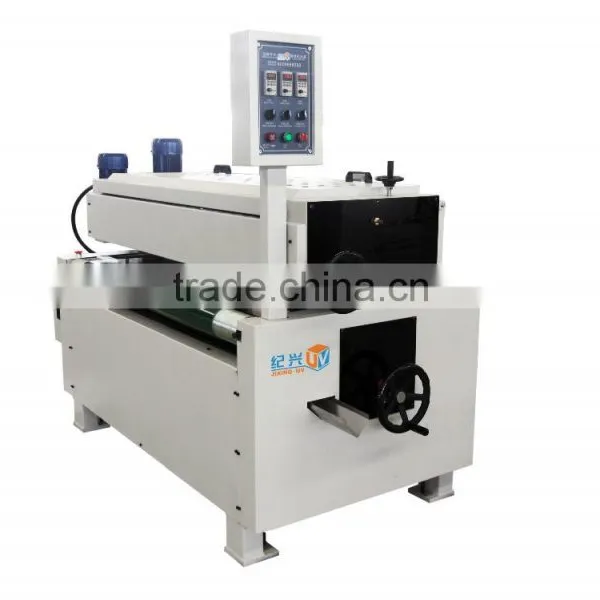

Full Precision Single Roller Coater
US$ 7,000 - 10,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Brand Name:
JXY
Model Number:
JXRA-1-600
Payment & Shipping
Payment Methods:
Port of Shipment:
shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
UV Coating Line/Machine/MDF Varnish Roller Coater For UV/MDF/Wood/FurnitureUS$ 11,000 - 14,000MOQ: 1 Set -
Best Quality uv Drying Curing MachineUS$ 10,000 - 13,000MOQ: 1 Set
-
Full Precision Single/Double/Converse and Positive Roller Coating Machine for UV PENegotiableMOQ: 1 Set
-
MDF/Wood uv Coating Machine /Wood Coating MachineUS$ 5,000 - 9,000MOQ: 1 Set
-
MDF UV Roller Coater MachineUS$ 5,000 - 9,000MOQ: 1 Set
Condition
New
Brand Name
JXY
Model Number
JXRA-1-600
After-sales Service Provided
Engineers available to service machinery overseas
Full Precision Single Roller Coater/ Tile/Ceramic/Glass Coating Machine/UV Roller Coater Machine for Wood Floor Furniture with 600/1000/1300mm, Roller Coater Equipment
Features:
- This machine is suitable for all kinds of flat products (such as wood, plastic, metal, solar glass, etc.) of the surface coating, coating machine by this station after the film plane smooth, delicate, no color difference.
- The application roller, doctor roller and conveyor belt are controlled by individual inverter to ensure the precision.
- The machine is equipped with thickness setting device to adjust the pressure of roller based on different products and thickness. If the working pieces is thicker than previous set ,the machine will automatically stop.
- This machine is suitable for all kinds of paint such as UV, PU, NC and water-based paint which the paint can recycle and no-wast .
- Optional:the machine with PLC board for fully automatically operation.
Parameters:
| Model | JXRAI-600 | JXRAI-1000 | JXRAI-1300 |
| Working Width(mm) | 600 | 1000 | 1300 |
| Working Thickiness(mm) | 2~80 | 2~80 | 2~80 |
| Feeding Speed(m/min) | 5~20 | 5~20 | 5~20 |
| Coating Roll Size(mm) | 750*Φ240 | 1150*Φ240 | 1450*Φ240 |
| Dortor Roll Size(mm) | 750*Φ150 | 1150*Φ150 | 1450*Φ150 |
| Shortest Working Length(mm) | 300 | 300 | 300 |
| Machine Weigh(kg) | 600 | 700 | 800 |
| Convey Power(kw) | 0.75 | 1.5 | 1.5 |
| Rubber Roller Power(kw) | 0.75 | 1.5 | 1.5 |
| Total Power(kw) | 5.5 | 7 | 7 |
| Machine Size(mm) | 1000*1660*1580 | 1000*2060*1580 | 1000*2360*1580 |
