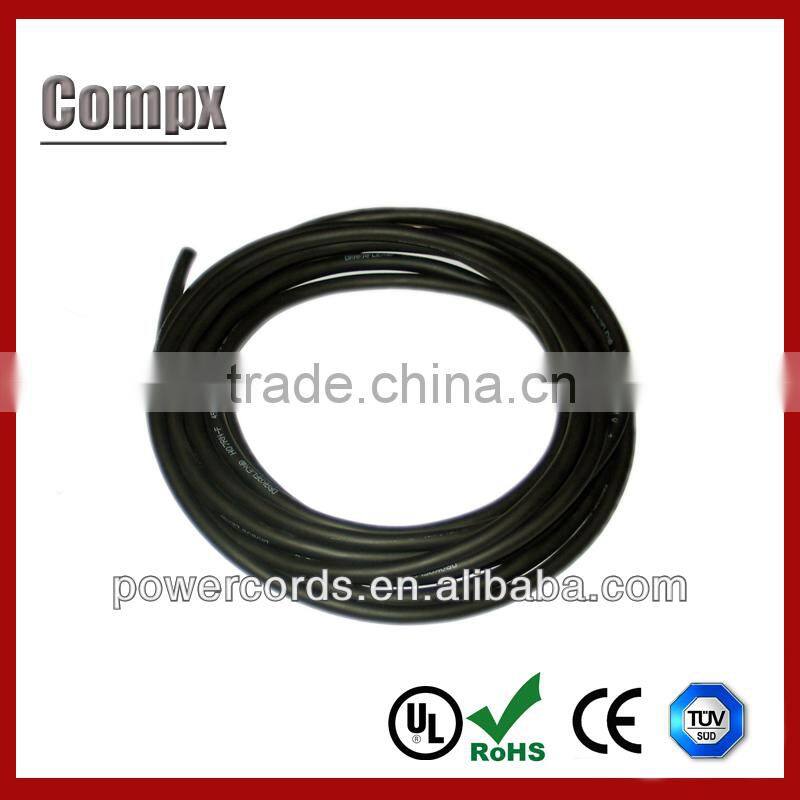

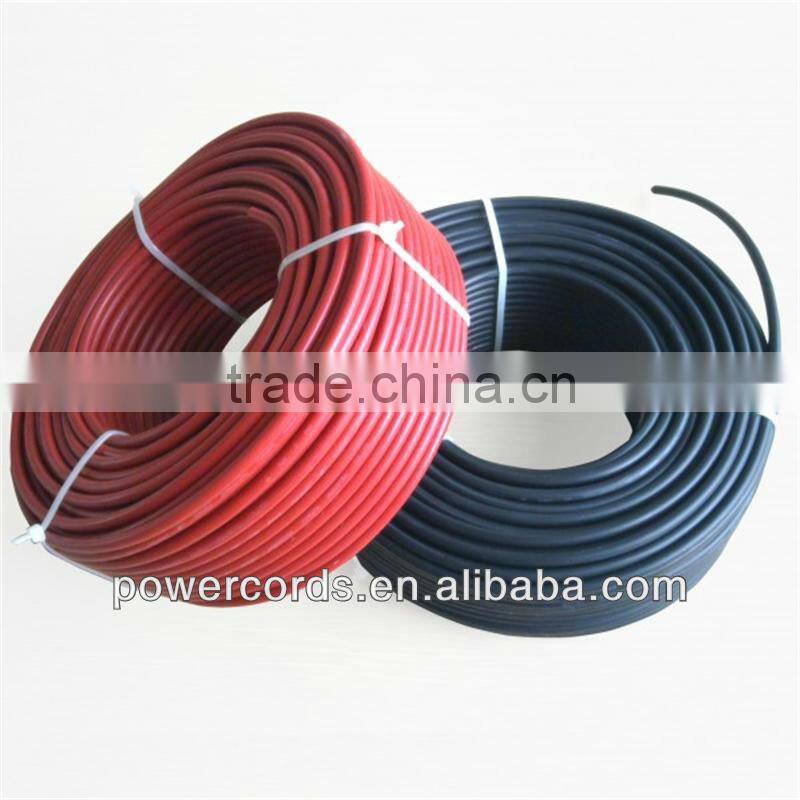

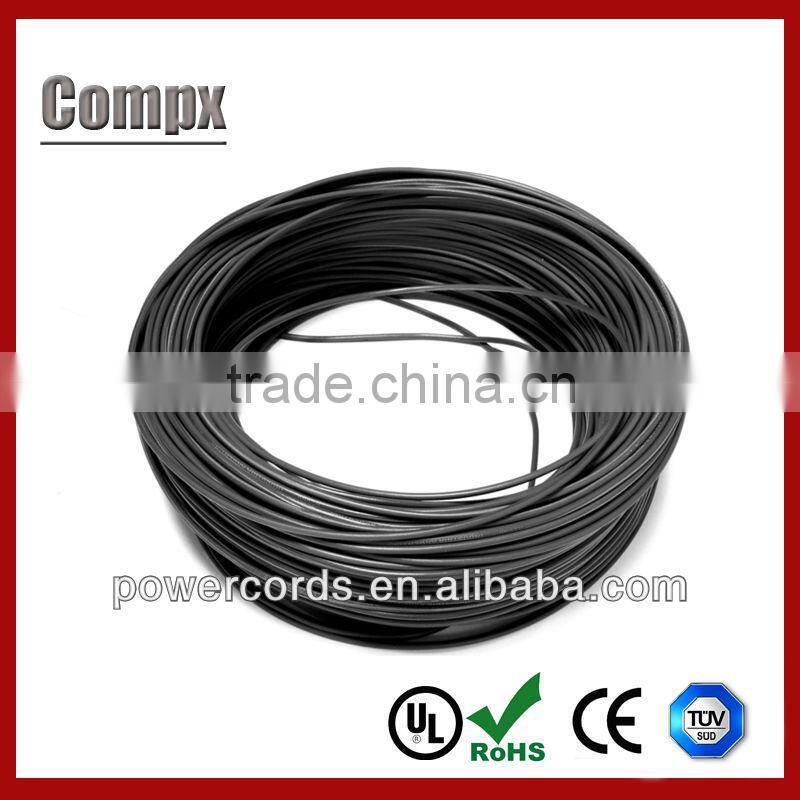

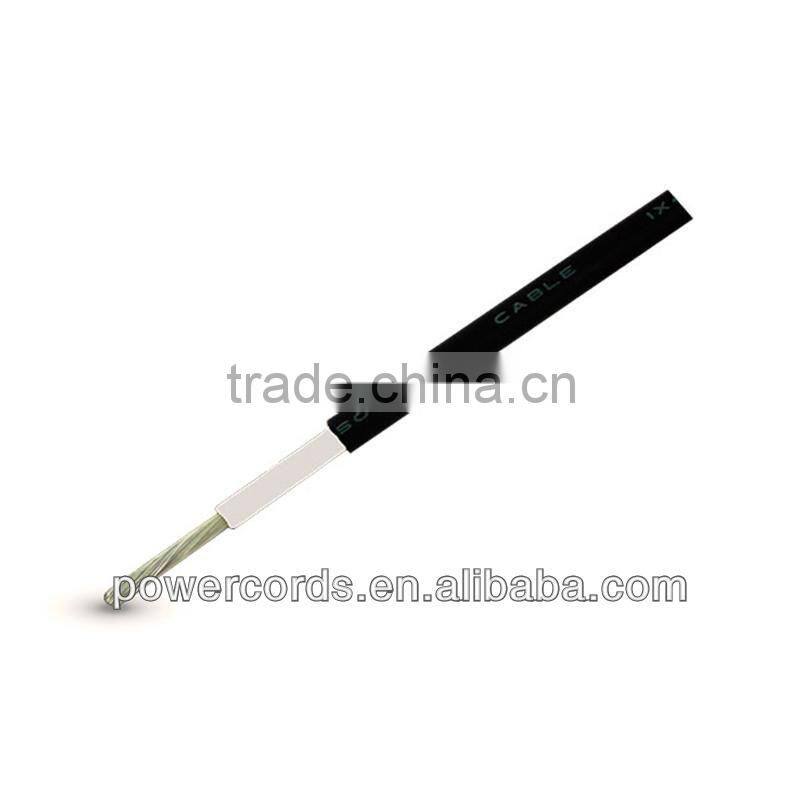

Solar Cable ul Tuv pv Cable pv Solar Cable 4mm2 Solar pv Cable

Name: Solar Cable ul Tuv pv Cable pv Solar Cable 4mm2 Solar pv Cable
Brand: JingYi
SKU: 128612563
Availability: InStock

US$ 0.5 - 10 MOQ: 500 Meters

Key Specifications

Place of Origin:

Zhejiang, China

Brand Name:

JingYi

Model Number:

JY-S002-26

Ningbo Compx Electronic Appliance Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Ningbo China

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Zhejiang, China

Brand Name JingYi

Model Number JY-S002-26

Insulation Material XLPE

Type High Voltage

Application Other, For use in solar power applications, For use in solar power applications

Conductor Material Other, Tinned Copper

Jacket Other, EPCV Jacket

Specifications

TUV pv solar cable 4mm2 solar pv cable
1. 90 deg 105deg
2. 600v 1000v 2000v
3. Standard: UL SUBJECT4703
4. UL TUV VDE

solar cable ul tuv pv cable 4mm2 solar pv cable

1. 90°c 105°c
2. 600v 1000v 2000v
3. Standard: UL SUBJECT4703
4. UL CUL TUV VDE Certifiction

Approvals & Standards:

VDE E PV 01:2008-02 Prufgrundlage VDE Prufinstitut

TUV Certification 2Pfg 1169.08/2007

TUV Listed as PV1-F; 1000v

UL4703: Outline of Investigation for PV Wire

ASTM B-3: Standard Specification for Soft or Annealed Copper Wire

ASTMB-8: Standard Specification for Concentric Lay Stranded Copper Conductors (Class B strand only)

ASTMB-33: Standard Specifcation for Tinned Soft or Annealed Copper Wire for Electrical Purposes (Flexible strand only)

90 °c Temperature Rating; Temperature index in excess of 120 °c

No. of Conductor and Normal Area	Construction	Conductor Pitch	Insulation thickness			Sheath thickness		Overall diameter	Max Conductor resistance at 20°c
No. of Conductor and Normal Area	Construction	Conductor Pitch	Normal thickness	Min thickness	Diameter	Normal thickness	Min thickness	Overall diameter	Max Conductor resistance at 20°c
mm²	mm	mm	mm	mm	±0.1mm	mm	mm	±0.1mm	Ω/KM
1X1.5	30/0.25	≤38	0.80	0.55	3.0	1.40	0.70	4.6	≤13.3
1X2.5	50/0.25	≤44	0.90	0.60	3.7	1.40	0.75	5.5	≤7.98
1X4	56/0.30	≤51	1.00	0.65	4.5	1.50	0.80	6.5	≤4.95
1X6	84/0.30	≤64	1.00	0.70	5.3	1.60	0.85	7.5	≤3.30
1X10	200/0.25	≤70	1.20	0.80	6.4	1.80	0.90	8.5	≤1.91
1X16	224/0.30	≤89	1.20	0.90	7.6	1.90	0.90	9.8	≤1.21
